| Prod Model: |
CHD1425 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body Materials: |
65mn |
| Graininess: |
300# |
| Thickness: |
10mm |
| Shape: |
Round |
| Customized: |
Customized |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Cutting |
| Kind: |
Stone Sawing Machine |
| Brand: |
CH |
| Saw Blade External Diameter: |
350mm to 500mm |
Product Description

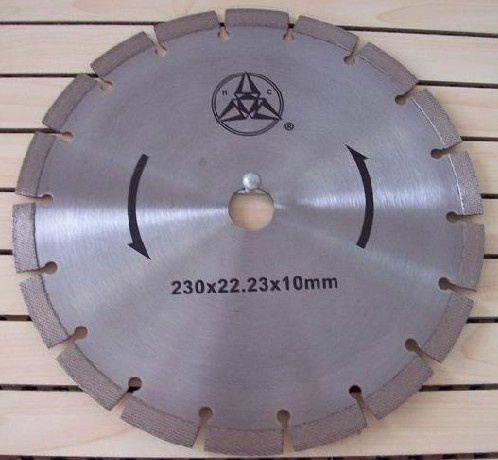

Hot Pressed diamond regular arranged blade
1)30%, ore cutting life and 100% more cutting life
2)packing is white box, color box or blister box.
High quality stone saw blade for hard materials, such as granite, marble, sandstone, limestone, ceramic, tile, concrete, asphalt, refractory brick's wet cutting or dry cutting are available.
Different disigns of stone saw blade such as segmented cutting blade, continuous rim diamond saw blade, turbo diamond discs, rim turbo dry cutting blade, normal saw blade, and silent core diamond saw are available.
When place order for stone saw blade, please inform the following:
1) Diameter (Inch or mm)
2) Inner Hole Size (Inch or mm)
3) Installation hole (If, need drawing)
4) Silent or None Silent Saw Blade
5) Segment No. (how many PCS segment per blade)
6) Segment Size (L x W x H, if possible please inform Steel Core Thickness)
7) Use of saw blade (For Granite, or marble, or limestone, or Sandstone. Or other material)
8) Quantity NO. (How many PCS, or how many sets segments)
9) Machine Powder/RPM (If possible)
10) Expected Shipping Date
11) Special Requirements (If)
| OUTTER DIAMETER | INNER HOLE | SEGMENT THICKNESS | SEGMENT HEIGHT | MEAS |
| 250 | 38 | 2.6 | 8/10/12/15 | 34X34X11/10PCS/CTN |
| 300 | 40 | 3 | 8/10/12/15 | 39X39X11/10PCS/CTN |
| 350 | 40 | 3.2 | 8/10/12/15 | 44X44X9/50PCS/CTN |
| 400 | 40 | 3.6 | 8/10/12/15 | 49X49X9/5PCS.CTN |
| 450 | 40 | 4 | 8/10/12/15 | 54X54X9/5PCS/CTN |
| 500 | 40 | 4 | 8/10/12/15 | 65X65X7/5PCS/CTN |
| 550 | 40 | 4 | 8/10/12/15 | 70X70X7/2PCS/CTN |
| 600 | 40 | 4.2 | 8/10/12/15 | 75X75X8/2PCS/CTN |
| 700 | 40 | 4.5 | 8/10/12/15 | 87X87X8/1PCS/CTN |
| 800 | 40 | 5 | 8/10/12/15 | 87X87X10/1PCS/CTN |
Zhejiang changheng tools co. Ltd is seated in hardware city -yongkang, it' S profession saw blade manufacturer. The product is involved with Tungsten carbide tipper circular saw blades, Diamond saw blade, mower saw blades etc, we can offer hundreds type of specification based on different saw blade. So far, the company covers an area over 30, 000 square meters and an annual production over 20, 000, 000 saw blades. The product will be exported many countries such as MID-east, Asia, Europe, America etc.
To ensure the good quality, the company adopts the most advanced technology and device from Japan and Germany. And make our work shop form one set completely speciialized production line. What' S more we also improve our management strategies on time and our company passed ISO2000 quality system Authentication in 2003, our product passed TUV certification.
The company will do its utmost to cultivate our famous brand and sincerely welcome merchants from home and abroad to cooperate with us!
