| Prod Model: |
HT-DT460 |
| Output Voltage: |
380V, Customized |
| Drilling Depth: |
35m |
| Weight: |
4500kg |
| Drilling Diameter: |
90-145mm |
| Name: |
High Output Crawler Drill With TUV |
Product Description
High Output Crawler Drill With TUV
1.Introduction of High Output Crawler Drill With TUV:
1.The jumbo power standard is yuchai four-cylinder YC4D80, 45 kw motor.Standard 76 mm diameter 3 meters drill pipe or equipped with a variety of twist drill pipe.
Is wood, the electric double use models, may at any time the power switch.Configuration: 15/13 mobile screw air compressor.
2.The machine is to strengthen the strength of each structural part, can bear completely original jumbo requirement for various functions.And motor
drive may at any time as a whole, convenient disassembly.
3.Adopt double cycloid motor with high torque drive turret, reduces the failure rate of ball motor and the heavy volume.Greatly strengthened the torque
of drill rig (up to 4500 n/m), make its drilling aperture range is bigger, can be widely used in foundation pit anchor, to pipe, large diameter twist drill pipe project.
4.Independent research and development of high-performance wet air filters, cooperate with dry air filter, the formation of tertiary air filtration system,
perfect the protection of the diesel
5.Rotary double speed switch valve is easy to operate, can meet the demand of different torque and speed of operation.
6.Standard strengthen walking motor assembly, climbing more powerful, more reliable in quality.
2.Advantages of High Output Crawler Drill With TUV:1.Easy operation, simple and accessible
2.High efficiency and energy saving
3.Drilling rig goes smoothly, climbs ability
4.High feedback
3.Technical parameter of High Output Crawler Drill With TUV:| Work Pressure(Mpa) | 0.7-1.5 |
| Air Consumption(m3/min) | 10-20 |
| Drilling Diameter(mm) | 90-145 |
| Supporting DTH Hammer(mm) | 930 340 |
| Drilling Depth(m) | 35 |
| Rod Length(mm) | 3000 |
| Drill Rod(mm) | 60 76 |
| Climbing Ability(°) | 30 |
| Traveling Speed(km/h) | 2-3.5 |
| Slewing Speed(rpm) | 0-80 |
| Slewing Torque(N.m) | 1970 |
| Weight(kg) | 4500 |
| Dimension(mm) | 5100*2260*2550 |
| Supporting Power | 2115 diesel engine
30kw electric engine |
| Dust Collector | optional |

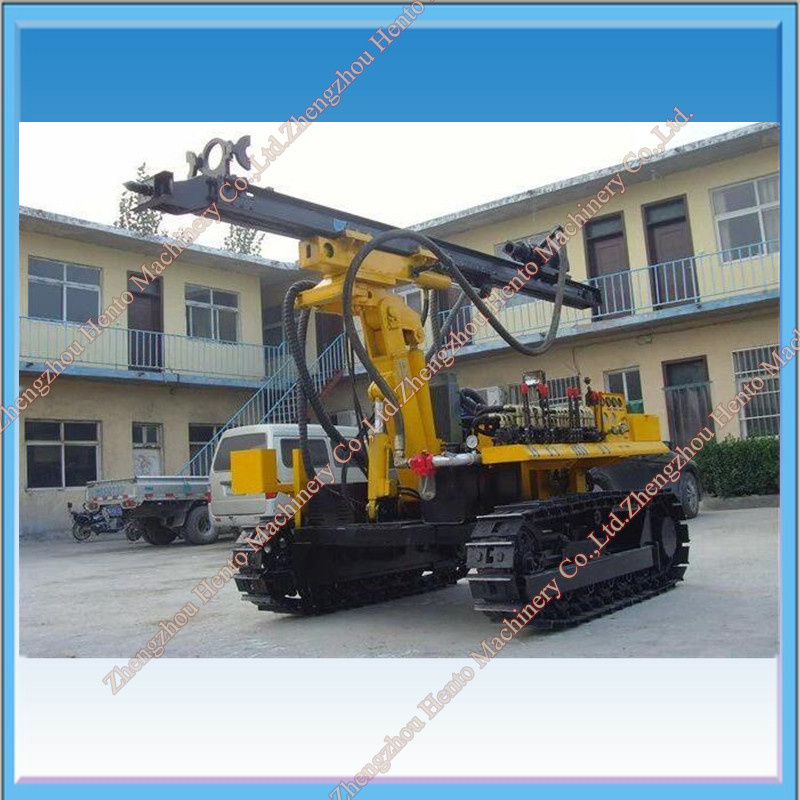

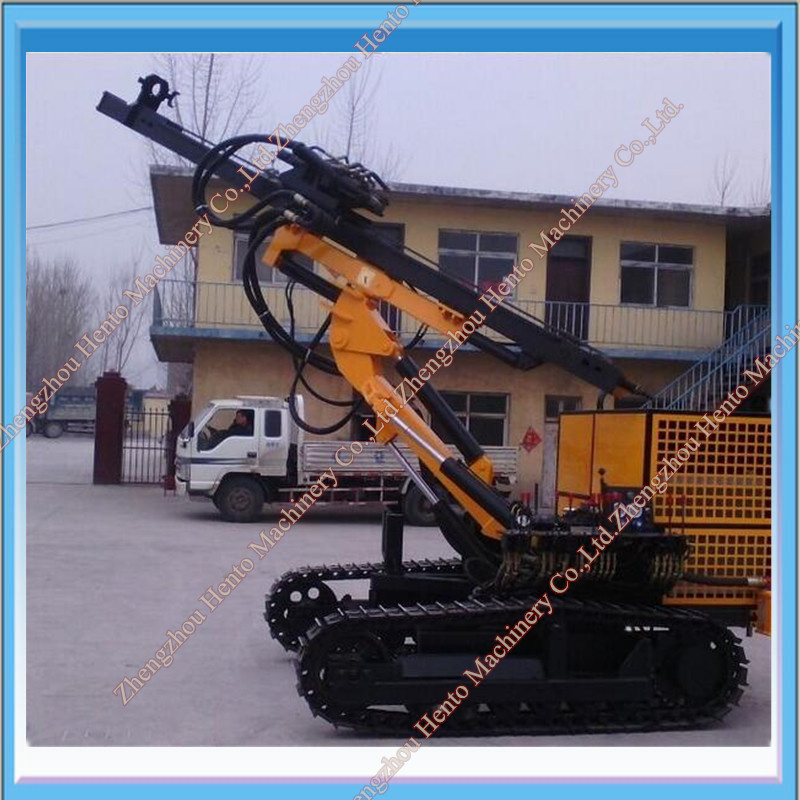

4.Photos of High Output Crawler Drill With TUV:
5.Company Certificate:
5.Packing&Delivery:
6.Our Customer:
7.Contact information:
If you need further information, please contact us freely, we will do our best to cooperate with you.
