| Prod Model: |
SY-CDDS-1000(Core Drill Diamond Segment) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
Diamond Core Drill Bit Crown Segment |
| Diameter(mm): |
6mm---400mm |
| Segment Height: |
8mm-10mm |
| Advantage: |
Safe and Long Lasting |
| Application: |
Used for Diamond Segments for Core Bits |
| Certificate: |
BV/SGS/ISO |
| Welding Type: |
Silver or Laser |
| Segment Raw Material: |
Diamond |
| Drill Bit Body Material: |
Alloy Steel |
| Supplier: |
Quanzhou Sunny Superhard Tools Co.,Ltd. |
| Material: |
Diamond & Alloy Steel |
Product Description

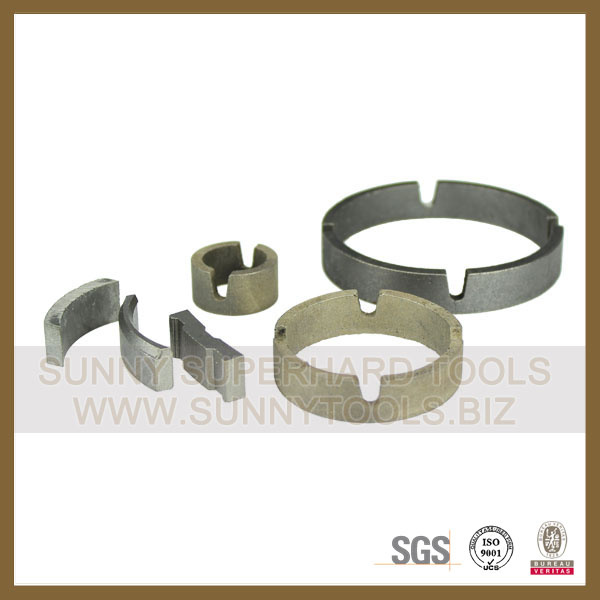

Diamond Core drill Segment
1. For masonry ,brick,concrete with light or medium stel reinforcing.Also effictive for granite.
2. Fast drilling
3. High frequency welding on diamond core bit
4. High efficiency,trimming efficiency,long life.
| Core Drill Diamond Segment |
Diamond Core Drill Bit is a cylinder used for cleaning and fast while extracting the material.
Small size of core bit uses for sink or pipe/ faucets hole drilling.
Big size of core bit used for plunge cutting out materials of concrete. |
| Outer Diameter | Inch | Ring Segment
(mm) | Working Length
(mm) | Connetction |
|
| 25 | 1" | | 360 | 450 | |
| 30 | 1.25" | | 360 | 450 | |
| 32 | 1.5" | | 360 | 450 | |
| 38.1 | 1.75" | 24*2.5*8.0 | 360 | 450 | M14 |
| 44.5 | 2" | 24*2.5*8.0 | 360 | 450 | M16 |
| 50.8 | 2.25" | 24*2.5*8.0 | 360 | 450 | G1/2" |
| 57.2 | 2.5" | 24*2.5*8.0 | 360 | 450 | 5/8"-11 |
| 63.5 | 3" | 24*2.5*8.0 | 360 | 450 | UNC1 1/4"-7 |
| 76.2 | 3.5" | 24*2.5*8.0 | 360 | 450 | |
| 101.6 | 4" | 24*2.5*8.0 | 360 | 450 | |
| 127 | 5" | 24*2.5*8.0 | 360 | 450 | |
| 152.4 | 6" | 24*2.5*8.0 | 360 | 450 | |
| 177.8 | 7" | 24*3.0*8.0 | 360 | 450 | |
| 203.2 | 8" | 24*3.0*8.0 | 360 | 450 | |
| 228.6 | 9" | 24*4.5*8.0 | 360 | 450 | |
| 254 | 10" | 24*4.5*8.0 | 360 | 450 |
|
Our company main product:
1. Cutting tools (diamond saw blades, diamond cutting segments & diamond wire saws).
2. Grinding and polishing tools (diamond calibrating rollers, diamond fickerts & Frankfurts,diamond profiling wheels, diamond polishing pads, etc).
3. Drilling tools (diamond finger bits & core drills).
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
