| Prod Model: |
SY-GW-1022 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: |
Cup-Shaped |
| Diameter(mm): |
120/150/180 |
| Segment Height(mm): |
15 |
| Grit No.: |
6#, 46#, 60#, 80# |
| Connection: |
M45*3 |
| Bonding Agent: |
Metal |
| Advantage: |
Quality & Price |
| Machinery: |
for Continuous Automatic Machines |
| Application: |
for Rough Granite Slabs |
| Delivery Detail: |
7 - 15 Days |
| Material: |
Diamond |
| Abrasive: |
Superabrasive |
| Shapes: |
Section Shape |
| Types: |
Surface Grinding Wheel |
| Working Style: |
Surface Grinding |
Product Description

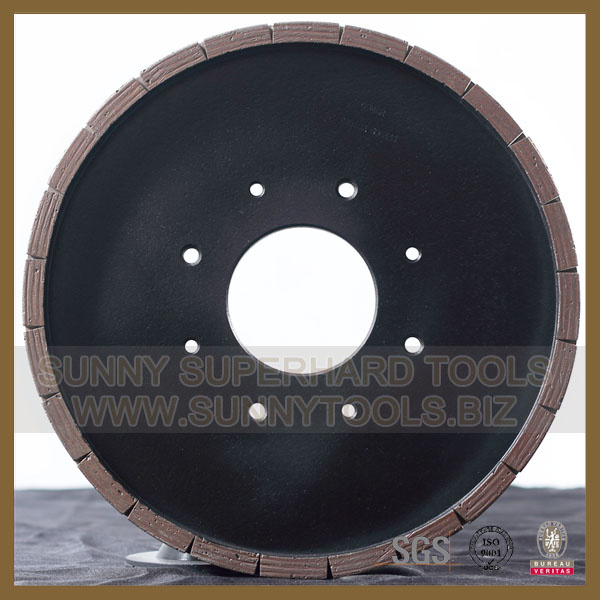

Diamond Squaring Wheel
Metal bond diamond squaring wheel for trimming and correcting the rim of tile or ceramic to get scheduled size.
It works stably low vibration in high efficiency, sharp grinding without chipping.
Characteristics: Easy cutting, low noise, no chipping and smooth surface etc.
Technical data and parameters requested
The technical data and parameters to be provided in order to identify the most suitable Squaring wheel are the following:
Type of machine: BrandModelYear constructed
Material to be processed
Amount of material to be removed
Working speed
Required finish
Diameter and wheel fixing system
The following specification is only for Reference, other or special specification can be ordered by customers.
| Diameter | Seg. size | Seg. No. | Grit |
| mm | mm | mm | mm |
| 200 | 22/20*8*12 | 24 | 46#--200# |
| 250 | 22/20*8*12 | 32 |
| 300 | 22/20*8*12 | 35 |
| other specifications are available upon request. |
Company Introduction:
1. We are a professional and dynamic diamond tools manufacturer, establishing in 1993.
2. We have a team of professional and experienced engineers who can design bond as per the size, hardness and abrasiveness of your stone as well as the machine parameter to yield maximum output.
3. We produce different diamond tools suitable for quarrying, squaring, cutting, grinding, profiling and polishing on various kinds of stones.
4. We accept OEM and ODM.
Main products:
1. Cutting tools ( diamond saw blades, diamond cutting segments and diamond wire saws ).
2. Grinding and polishing tools ( diamond calibrating rollers, diamond fickerts & Frankfurts, diamond profiling wheels, diamond polishing pads, etc ).
3. Drilling tools ( diamond finger bits and core drills ).
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
