| Prod Model: |
FLC1325B |
| Working Area: |
1300*2500mm |
| Laser Power: |
150W |
| Delivery Time: |
in 10 Days |
| Warranty: |
2 Years |
Product Description

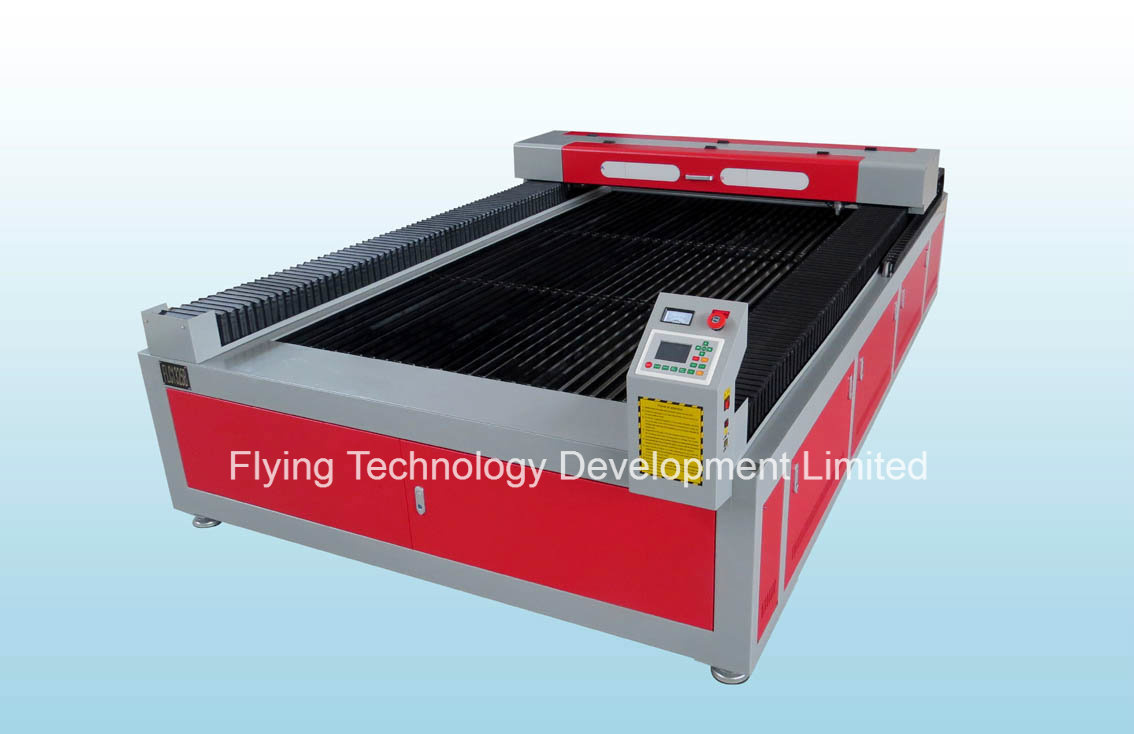

High power laser cutting machine wood metal laser cutter
Features:

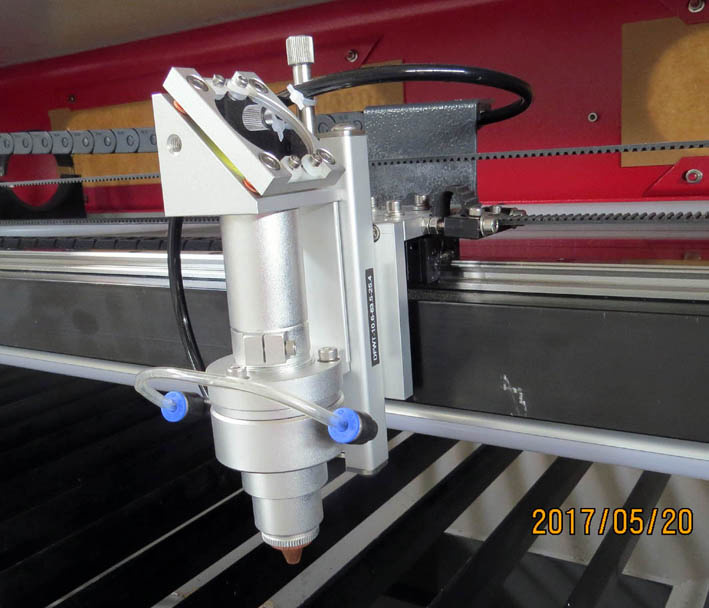

This laser machine has big working area of 1300*2500mm, this can meet demands of work on large scale garments and cloth, leather, wood, acrylic and paper industry. It is equipped with 3-phrased motors and drivers, high laser power, special cutting nozzle(Advanced wavelength laser head, has the best focusing result) and oxygen assistance device, which can also cut metal well such as stainless steel, carbon steel.
Specifications:
| Model | FLC1325B |
| Laser-type | 10.6um CO2 glass laser tube w/ water-cooling |
| Laser power | 150W |
| Working area | 1300*2500mm |
| Max Engraving speed: | 0-50, 000mm/min |
| Max cutting speed | 0-24, 000mm/min |
| Laser output control | 1-100% software setting |
| Location precision | Less than 0.01mm |
| Highest scanning precision | 2500DPI |
| Operating temperature | 0 - 45 |
| Operating humidity | 5- 95% non-condensing |
| Minimum shaping character | English 1.0 x 1.0mm |
| Graphic format supported | HPGL, BMP, JPEG, PLT, DST, DXF, and AI ... |
| Driving system | Stepper(Optional: Servo) |
| Cooling mode | Water-cooling and protection system |

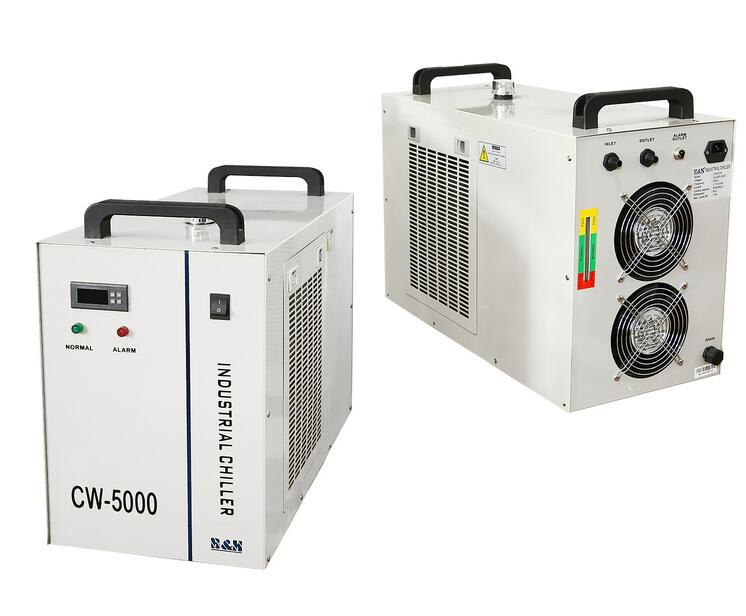

| Auxiliary equipments | Exhaust-fans, air-exhaust pipe, air pump, chiller |
| Controller | DSP |
| Compatible Software | CorelDraw, AutoCAD, Photoshop, TAJIMA |
| Slope Engraving | Can be easily designed within the "Grade Engrave" function. |
| Color separation | Uses color property to set function, speed, and laser po |
Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.
Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, foam, MDF, rubber, plastic, garments, paper, leather, marble, granite, tiles, carbon steel, stainless steel and etc...
Flying Technology Development Limited. Was established in 2008. We are well known for our superior quality and service in the field of engineering and manufacturing of Laser Equipment and CNC Router that includes: Laser Engraving and Cutting Machine, CNC Router, CNC plasma cutting machine, Acryling Bending machine, Cutting Plotter, and so on.
Our company is the modern enterprise in combination with resarching, producing and selling, have excellent engineers, technical experts, etc. Each product has its enterprise standard. All of them have the strict quality testing departnment detection, complete with product standards. The product passed the European Union CE authentication and American FDA certificate, the products are sold in eighty countries. Most of the m- aterials which the product use for imported steel and electrical devices, true material anticipates, worth of the money. The employee of our company is very rigorous, serious and responsible. The product from design to production, every link excellence, plus factory's strict inspection so that making the product has excellent quality and minimum malfunction probalility.
Our company is famous for high quality and better after-sale service as the competitive price. Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.
We are searching the distributors around the world. Hope we can cooperate for the world market.
