| Prod Model: |
thyh-ic02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CNC Machining Or Not: |
CNC Machining |
| Type: |
Broaching, Drilling, Etching / Chemical Machining |
| Material Capabilities: |
Hardened Metals, Stainless Steel, Steel,Iron |
| Micro Machining Or Not: |
Micro Machining |
| Place Of Origin: |
Qingdao,China |
| Optional Material: |
Stainless Steel, Carbon Steel,Brass, Aluminum etc. |
| Machine: |
CNC Center |
| Surface: |
as Customers' Requirements |
| Inspection: |
100% |
| Min Tolerance: |
+/-0.01mm |
| Casting Method: |
Directional Crystallization |
| Material: |
Stainless Steel |
| Surface Preparation: |
Polishing |
Product Description
High Quality OEM Stainless Steel casting/Lost Wax casting/ Investment casting/Precision Casting
A,Products Description:
Manufacture process: lost wax investment casting(precision casting)
Casting materials: carbon steel, stainless steel or non-ferric alloy
Production Process:Wax Mould-Shell Making-Dewaxing-Smelting&Casting-Shell Off-Blasting-Cutting&Polishing-Acid Washing-CNC Precised Machining
Casting facility:wax injector, electric furnace,heat treatment furnace,cutting head machine, shot-blasting machine, sand-blasting machine.
Machining facility: CNC,NC lathe,ordinary machine tools,linear cutting machine, NC milling machine, polishing machine.
Heat treatment as required: anneal normalizing, quench + temper or solution treatment
Surface protection can be: pickling and passivation, oil anti-rust protection, anti-rust protection without oil, prime paint, epoxy powder coating, galvanization, hot dipped
Unit weight: 1g to 100kg
Casting tolerance per ISO8062 CT7-CT10
Castings appearance inspection per ISO11971 or MSS-SP-55
EN 10204 3.1B Mill cert and dimension report will be provided
Inquiry information: material grade, unit weight, quantity and drawings (CAD/PDF/IGS/STEP), or sample
Experienced inspection team of casting quality conducts the entire quality control procedure from raw material to finished productsAll inspectors are well trained and have rich product knowledge and inspection experiences.
B.Advantage
1. Competitive price with good quality
2. Low MOQ (100pcs is even acceptable in some special conditions)
3. Short lead time (7-15days according to order qty)
4. Customized size and spec /OEM available
C.Package
Suitable for sea and air transportation or as required
| PROCESS | MATERIAL | STANDARD |
SAND
CASTING | Green Sand | Grey Iron, Ductile Iron, Malleable Iron, Stanless Steel, Carbon, Steel, Aluminium, Brass, Bronze | ASTM
BS
JIS
DIN
etc |
| Furan Resin Sand |
| Cold Harden Resin Sand |
INVESTMENT
CASTING | Sodium Silicone (Water galss) | Stainless Steel, Carbon Steel, Special Alloy Steel Bronze, Brass, Aluminum |
| Silica Sol |
| FORGING | Hammer Forging | Stainless Steel, Carbon Steel, Alloy Streel, Brass, Aluminum |
| Die Forging |
| Roll Forging |
| STAMPING MACHINING | STAMPING MACHINING | All metal material |

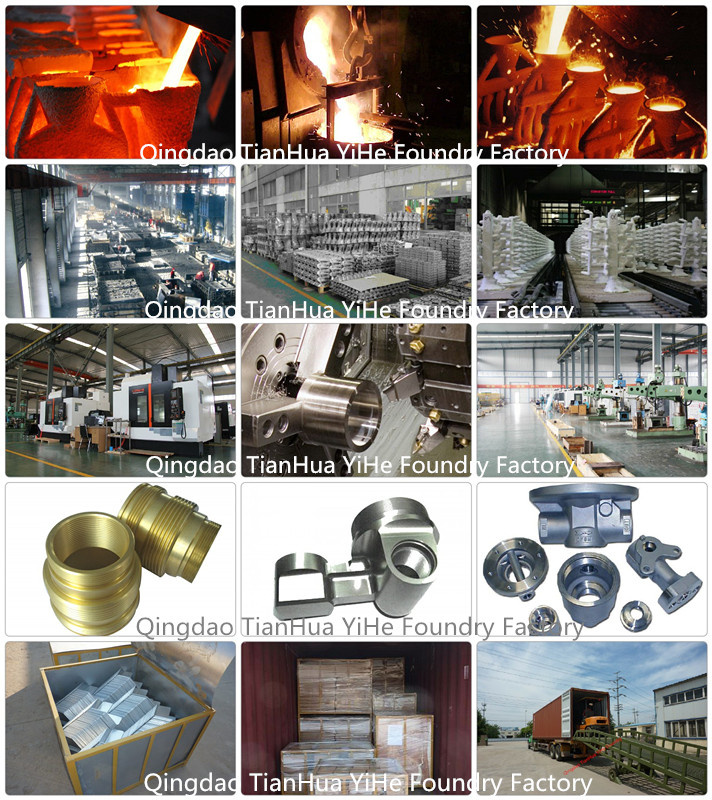

Our workshop of casting factory and CNC machining factory:

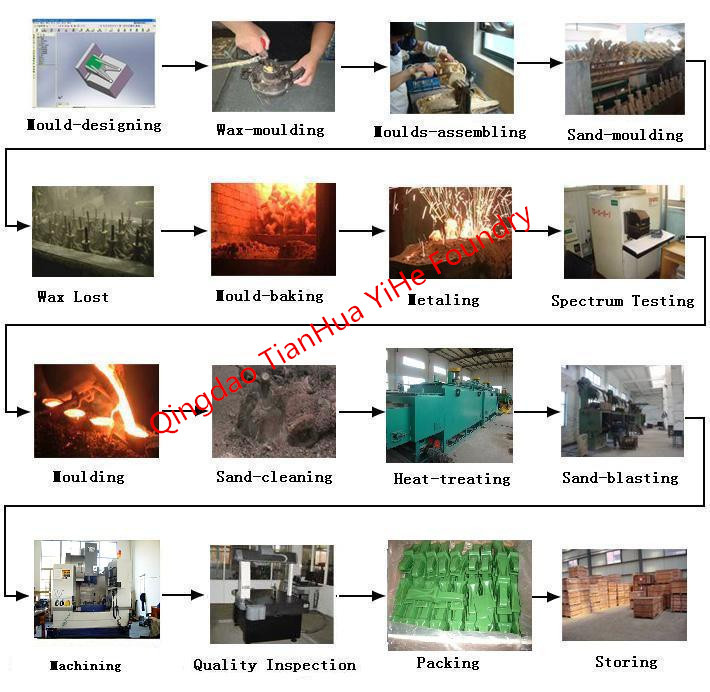

Our Investment Casting Production Processes:

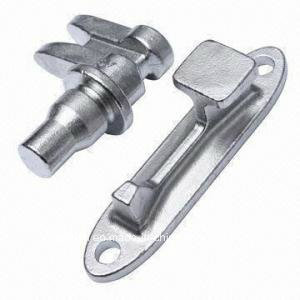

Our Casting and Machining Parts pictures as following:
FAQ
1 Are you factory or trading company?
We are leading casting manufacture factory at qingdao,china,So we can quote competitive price for you.
2 How long can I get the price?
Prices will be quoted within 24 hours after we get your inquiry with detailed information ( including drawings, material, surface treatment,quantity, special requirements,etc)
3 Can you produce custom products meet customer's requirement ?
Yes,We have specialized in producing OEM customized products according to the drawings or samples provided by the customer for 15 years.
4 Can you provide complete products?
Yes.We provide complete products including castings,machining, finishing treatment, packing and shipment on request. It is our goal to provide you with one-stop and satisfied service.
5 How can I get a sample to check your quality?
On the case of quotation confirmed.Sample will be free of charge for customer approval, freight collect.
6 How does your factory do regarding quality control?
Experienced inspection team of casting quality conducts the entire quality control procedure from raw material to finished products All inspectors are well trained and have rich product knowledge and inspection experiences.
7 How long can I expect to get the sample?
It depends on, normally 15days~20 days (including mould making time). Samples will be sent by DHL, FedEx, UPS, TNT or EMS,ect.
8 What about the lead time for mass production?
It depends on the order quantity. Normally,25days~30 days after receiving of deposit.
9 What are your MOQ?
We don't have a strict limit, small quantity is also workable.
10.What are your terms of payment ?
We can accept T/T or L/C at sight payment way.
Qingdao Tian Hua Yi He Foundry Factory located at the beautiful seashore city Qingdao, China. The factory manufacture and export OEM casting parts, forging parts, CNC machining parts, metal fabricated parts for oversea customers more than 15 years. We have own import&export right. Our foundry have earned the reputation of fast deliveries, superior quality, competitive pricing and outstanding customer service. Our factory capacity of castings more than 5000 tons in every year.
Our custom casting products made in both ferrous and non-ferrous alloys material (include cast iron, ductile iron, alloy iron, carbon steel, alloy steel, stainless steel, bronze, aluminum, etc. ) Our production methods include sand casting, investment casting, lost foam casting, die casting, V-process casting, permanent mold casting etc.
We exported casting and machined parts which is widely used for automobile, electrical power engineering, petroleum exploration, municipal engineering, sporting equipment, machinery parts, pump& valve industry, hardware parts etc.
Tianhua Yihe Foundry offers a wide range of associated casting services, including drafting and design, processes, shot blasting, painting and custom coatings. We have the full capacity to machining all these parts that we produced- including conventional and precision CNC machining.
Tianhua Yihe Foundry is dedicated to supplying cost effective casting solutions; We manufacture, and supply a wide variety of castings, forgings, and fabricated metal parts for various industries throughout the world. With our professional foundry experiences and management skills we supply quality assured components with the production.
Tianhua Yihe Foundry can produce the outstanding products for customers according to customer provide drawings or samples. Welcome send your inquire parts'drawings and/or samples, we will quote competitive price for you within two days.
We would like to establish good business relations with all friends both home and abroad on the basis of equality and mutual benefits. Please feel free to contact us for more to discuss business. Give us a chance, we will do our utmost to meet your requirements.
