| Prod Model: |
J21S-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Kingball |
| Place Of Origin: |
Jiangsu,China |
| Color: |
All Color Is Available |
| Model Number: |
J21s-63 |
| Machine Type: |
CNC Machine |
| Power: |
Hydraulic |
| Dimension(Lxwxh): |
Depend on |
| Weight: |
Depend on |
| Guarantee Period: |
Two Years |
| Type: |
Deep Throat Punching Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Power Source: |
Manual |
| Precision: |
High Precision |
Product Description

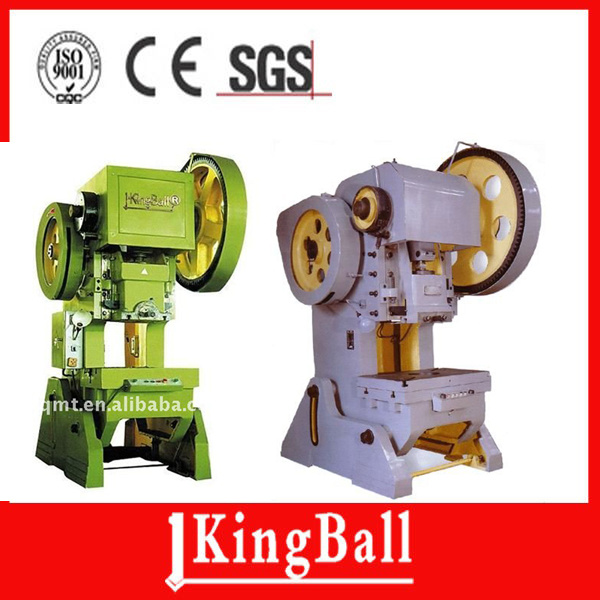

Power press J21S series1. Press punching machine
2. CE, ISO, SGS Certification
3. Economic & practical;
4. High performance, long life
5. High quality with good price
Features and Specifications of power press J21S series
Deep-throat power press with fixed bedJ21S series pressure machines is common type open type can the pressure machine,
1. Its structure is simple, operation convenience, function credibility, the usage maintain convenience.
2. J21S series shut type list orders the pressure machine fuselage of airplane srtaight line form design, well balanced to be subjected to dint, constant form, rigid and strong.
3. Extemely high closing height, pack the mould space big, slippery piece the piece six noodles directionn, the accurancy is high, stability good.
4. Outside support type especially the big machine do, exaltation the tool machine install stability, safety, inside place type, oil road, electric circuit, beauty clean and net, have a safety, dependable type more,
5. The hand operation button the switch match pressure machine national security standard
Except POWER PRESS, we also have the press brakes, shearing machine, rolling machines and other machines.
For more about our products, please contact us. Thanks.
| | J21S-6.3 | J21S-10 | J21S-16 | J21S-25A | J21S-40A |
| Capacity | kN | 63 | 100 | 160 | 250 | 400 |
| Nominal Force | mm | 2 | 2 | 2 | 2.5 | 4 |
| Slide Stroke | mm | 35 | 60 | 70 | 80 | 120 |
| SPM | min- 1 | 170 | 145 | 125 | 60 | 55 |
| Max. Die Height | mm | 110 | 130 | 170 | 180 | 220 |
| Die Height Adjustment | mm | 30 | 35 | 45 | 70 | 80 |
| Between Slide Center & Frame | mm | 700 | 700 | 700 | 700 | 700 |
| Bolster (FB×LR) | mm | 200×310 | 240×360 | 320×480 | 400×600 | 480×700 |
| Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) | mm | Φ60 | Φ120×20×Φ100 | Φ100 | Φ120 | Φ220×25×Φ180 |
| Bolster Thickness | mm | 40 | 50 | 60 | 70 | 80 |
Bolster Opening
(Dia.×FB×LR) | mm | Φ140×110×160 | Φ130×90×180 | Φ210×160×240 | 200×200 | 200×240 |
| Slide Area (FB×LR) | mm | 120×140 | 150×170 | 180×200 | 210×250 | 270×320 |
| Shank Hole (Dia.×Dpth) | mm | Φ30×55 | Φ30×55 | Φ40×60 | Φ40×70 | Φ50×70 |
| Between Columns | mm | 162 | 182 | 220 | 350 | 390 |
| Motor Power | kW | 0.75 | 1.1 | 1.5 | 2.2 | 4 |
| Outline Size (FB×LR×H) | mm | 1540×700×1525 | 1620×730×1800 | 1680×840×1880 | 1790×990×2288 | 1965×1180×2295 |
