Home Toolbuy Products High Precision Diamond Cut Wheel Refurbishment Lathe Awr2840

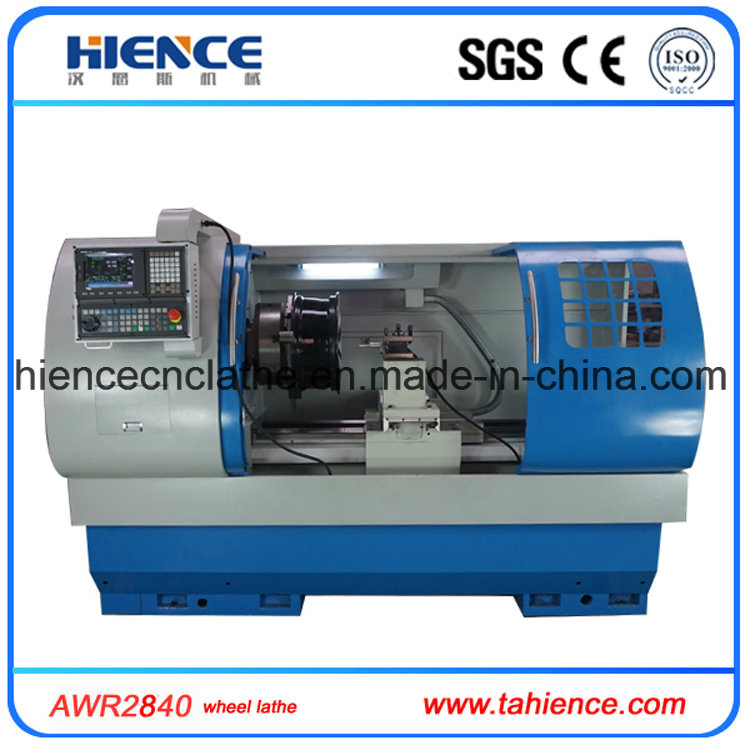

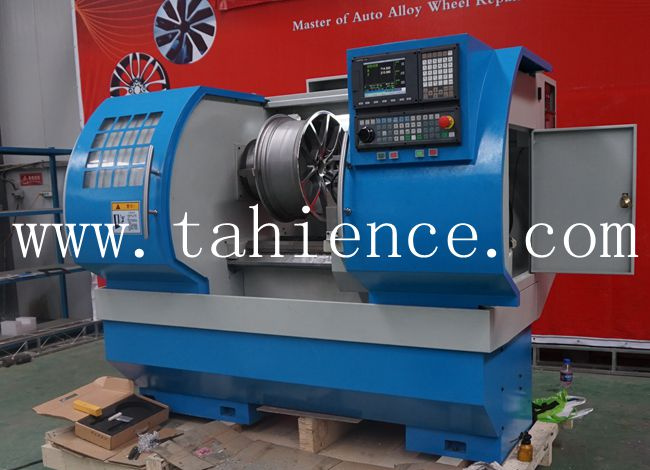

High Precision Diamond Cut Wheel Refurbishment Lathe Awr2840

High Precision Diamond Cut Wheel Refurbishment Lathe Awr2840
Price: US $ 14000-17000set
Min Order: 1set
Pay Type: L/C,T/T,Western Union
Prod Model: AWR2840
Colour: Blue or Black
Controller: CNC or PC
Voltage: 3 Phase 380 or Your Request Voltage
Cutting Effect: Rainbow Line or Cutting Line
Detection Way: Touch Ruby Probe System
Cutter: Special Diamond Cutter
Optimized Software: Designed for Optimize Program
Clamping Form: 3 Jaws Chuck
Max Wheel Size: up to 27 Inch,30 Inch,or 32 Inch
Oversea Service: Offer
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision

Product Description

High precision diamond cut wheel refurbishment lathe AWR2840



Standard configuration
  1.  Diamond  Cutter  1 set;
  2.  3-Jaws Chuck(With Special Soft Jaws)
  3.  Pioneer Sensing Probe  TP300;
  4.  S YTEC
  5.  Manual Quick Change Toolpost,Four-station;
  6.  Work Lighting System;
  7.  Automatic Lubrication System;
  8.  Cooling System;
  9.  Full Enclose(Security Guard Door);
  10.  Tools&Tool Box
  11.  Specific Digital Optimization Software;
  12.  Training Video CD;

ITEMSAWR2840
Max. swig over bed (mm)Φ720(28 inch)
Max. swig over cross slide (mm)Φ540
Max. Size of alloy wheel27'
Cross slide travel (mm)350
Width of the rail330
Length of the rail1320
Size of the three-jaw chuck12'
Range of spindle speed (RPM)50~2000
Spindle speed controlAutomatic
Spindle bore  (mm)Φ60
Taper of spindle boreMT6
Taper of spindle noseA2-6
Max. size of tool post25×25mm
Stations of tool carrier4 station
Min. setting unit of motor(Z) long    0.001mm,
(X) cross   0.001mm
Moving speed of post(Z) long     8m/min,
(X) cross    4m/min
Motor power7.5KW
Mchine baseWhole cast iron base
Machine size(L×W×H) (mm³)2300×1750×1950
Net weight2600kgs





















Taian Hiscinece Machinery Co., Ltd is located in Shandong province, China. Is dedicated to the research and development, production and sales of CNC machine tools.

We are manufacturer and trader of CNC lathe, Slant bed Horizontal CNC lathe, CNC Pipe threading lathe, CNC wood lathe, CNC milling machine & machining center, Drilling machine, Manual engine lathe, CNC Turning Machine center, accessories of CNC machine.

Our company has developed one type new CNC machine for alloy wheel repair lathe machine which can probe wheels face and cut automatically.

CNC machine tool has been applied to the airline industry sector, gradually expand to the automobile, shipbuilding, machine tools, construction machinery manufacturing industry. For copper, aluminum, iron, plastic and other precision parts manufacturing, applicable to instruments, watches, cars, motorcycles, bicycles, eye wear, stationery, hardware, sanitary ware, electronic components, connectors, computers, cell phones, electronics, military and other industries in bulk machining small parts, especially the more complex parts.

The company has passed CE ISO SGS, Our products are hot sale in the domestic market, and meanwhile, they have been exported to Europe, America, Southeast Asia and othe countries, more than 100 countries in Worldwide.

The company adjacent to Qingdao, Shanghai, Tianjin, Lianyungang Port as well as Qingdao, Jinan, Shanghai, Beijing Airport.

Welcome all customers to have cooperation with us. We will offer our best machine and service to you.
