| Prod Model: |
ANL-5000P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Digital Torque Meter |
| Measuring Range: |
5000n.M |
| Division Value: |
0.1n.M |
| Peak Value Sampling Frequency: |
2000Hz |
| Power: |
8.4V 1.2vx7 Ni-MH Battery Group |
| Charging Time: |
4-6hour |
| Continuous Using Time Of Battery: |
About 10 Hours |
| Size: |
230*95*180mm |
| Price: |
Competitive |
| Condition: |
New |
| Power Source: |
AC220V |
| Type: |
Digital Torque Meter |
| Accuracy Grade: |
0.1n.M |
| Weight: |
36kg |
| Oil Cylinder Position: |
No |
Product Description
Factory directly sale Digital Torque Meter for 5000N.m testing

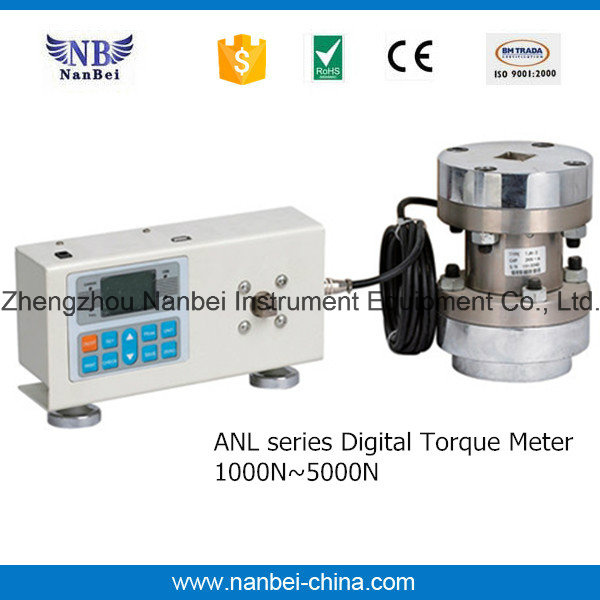

ANL series Digital Torque Meter
Function
The ANL digital torque meter is specially designed for measuring all kinds of torque.
It is suitable for all kinds of torque measurement and adjust components reverse destructive test
and so on.
This product Mainly used in measuring all kinds of electric and air torque, bottle opener, screwdriver,
torque wrench, tighten torque instrument and product, widely applies in the electrical manufacture,
the machine manufacture, the automobile light industry and the specialized scientific research and
industry.
Character
1:High accuracy, high resolution, and stability. The sampling speed can be set.
2:Fluctuate limiting value set, has the acousto-optic alarm device.
3:Lattice type LCD, the back light can be set.
4:Torque directions identify.
5:Three kind of unit: N · m, kg · cm, lb · in automatic conversion.
6:Many kinds of front values maintain.
7:Power source shows and low power prompt.
8:No-operation close automatically, can set the close time.
9:Saves and prints 100 test data, can clean out at will.
10Uses the USB connect to the PC, examine real-time, survey curve, and carries on processing to the data: such as prints, statistics and so on.
Specifications
| Type | With printer | ANL-1P | ANL-2P | ANL-3P | ANL-5P | ANL-10P | ANL-20P |
| Index | No printer | ANL-1 | ANL-2 | ANL-3 | ANL-5 | ANL-10 | ANL-20 |
Measuring
range /
Division
value | N·m | 1.0000/0.0001 | 2.0000/0.0001 | 3.0000/ | 5.0000/ | 10.000/ | 20.000/ |
| 0.0001 | 0.0001 | 0.001 | 0.001 |
| Kg·cm | 10.210/ | 20.421/ | 30.631/ | 51.052/ | 102.10/ | 204.21/ |
| 0.001 | 0.001 | 0.001 | 0.001 | 0.01 | 0.01 |
| Lb·in | 8.862/ | 17.724/ | 26.586/ | 44.311/ | 88.62/ | 177.24/ |
| 0.001 | 0.001 | 0.001 | 0.001 | 0.01 | 0.01 |
| Precision | ±0.5% |
Peak Value
Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
Continuous using
time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Size | With printer:230mm×95mm×180mm |
|
| No printer:230mm×70mm×125mm |
| Net Weight | With printer:4KG No printer:2KG |
| Power adapter | Input:AC 110-220V 50HZ Output:DC 10V 300mA |
| Type | With printer | ANL-50P | ANL-100P | ANL-200P | ANL-300P | ANL-500P |
| Index | No printer | ANL-50 | ANL-100 | ANL-200 | ANL-300 | ANL-500 |
Measuring
range /
Division
value | N·m | 50.000/0.001 | 100.00/0.01 | 200.00/0.01 | 300.00/0.01 | 500.00/0.01 |
| Kg·cm | 510.52/0.01 | 1021.0/0.1 | 2042.0/0.1 | 3063.1/0.1 | 5105.2/0.1 |
| Lb·in | 443.11/0.01 | 886.2/0.1 | 1772.4/0.1 | 2658.6/0.1 | 4431.1/0.1 |
| Precision | ±1% |
Peak Value
Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
Continuous using
time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Size | With printer:Host display part 230mm×95mm×180mm |
| Measuring device part 480mm×190mm×180mm |
| No printer:Host display part 230mm×70mm×125mm |
| Measuring device part 480mm×190mm×180mm |
| Net Weight | With printer:36KG No printer:34KG |
| Power adapter | Input:AC 220V 50HZ Output:DC 10V 300mA |
| Type | With printer | ANL-1000P | ANL-2000P | ANL-3000P | ANL-5000P |
| Index | No printer | ANL-1000 | ANL-2000 | ANL-3000 | ANL-5000 |
Measuring
range /
Division
value | N·m | 1000.0/0.1 | 2000.0/0.1 | 3000.0/0.1 | 5000.0/0.1 |
| Kg·cm | 10210/1 | 20420/1 | 30630/1 | 51051/1 |
| Lb·in | 88622/1 | 17724/1 | 26586/1 | 44311/1 |
| Precision | ±1% |
Peak Value
Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
Continuous using
time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Size | With printer:Host display part 230mm×95mm×180mm |
| No printer:Host display part 230mm×70mm×125mm |
| Net Weight | With printer:36KG No printer:34KG |
| Power adapter | Input:AC 220V 50HZ Output:DC 10V 300mA |
ANL-P Bottle Lid Torque Meter
Function
ANL-P bottle lid torque tester is an intelligent and multifunction measure instrument.
Specially designed for testing and examining all kinds of bottle lid to open and close torque.
Applied in examining all kinds of bottle lid, light cap etc. open and close torque. Installed conveniently
and fast, and the maximal diameter can reach 200mm, enclosed USB serial port output, can carry out
transfer the data to the computer for analysis, printing and so on related process.
Character
1:High accuracy, high stability, high resolution.
2:The sampling speed can be set.
3:The upper limit value and lower limit value can be set, has acousto-optic alarm device.
4:Lattice type liquid-crystal display, the backlight lamp can be set.
5:Torque direction identifies.
6:Three kinds of unit automatic conversion: N.m, Kg.cm, Lb.in.
7:Multi-peak values maintain.
8:Power source, electric quantity display and low electric quantity cue.
9:Close automatically under no-operation, the close time can be set.
10:Saves and prints 100 test data, delete at will.
11:Uses USB connect PC, test real-time, measure curve, and carries on processing to the data:
such as prints, statistic. and so on.
Parameter
| Type | With printer | ANL-P1 | ANL-P2 | ANL-P3 | ANL-P5 | ANL-P10 | ANL-P20 |
| Index | No printer | ANL-WP1 | ANL-WP2 | ANL-WP3 | ANL-WP5 | ANL-WP10 | ANL-WP20 |
Measuring
range /
Division
value | N·m | 1.0000/0.0001 | 2.0000/0.0001 | 3.0000/ | 5.0000/ | 10.000/ | 20.000/ |
| 0.0001 | 0.0001 | 0.001 | 0.001 |
| Kg·cm | 10.200/ | 20.400/ | 30.600/ | 51.000/ | 102.00/ | 204.00/ |
| 0.001 | 0.001 | 0.001 | 0.001 | 0.01 | 0.01 |
| Lb·in | 8.850/ | 17.700/ | 26.550/ | 44.250/ | 88.50/ | 177.00/ |
| 0.001 | 0.001 | 0.001 | 0.001 | 0.01 | 0.01 |
| Precision | ±1% |
Peak Value
Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
Continuous using
time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Size | 400mm×200mm×200mm |
| Net Weight | 12KG |
| Power adapter | Input:AC 220V 50HZ Output:DC 10V 300mA |
ADN Dynamic Torque Tester
1, Measuring the height of sensor's diameter of axle and center, waiting.
2, Using two groups of coupling, installed the sensor between the power equipment and
load.
3,Adjusted the center height and coaxiality of load, power equipment and sensors
respectively, and then fixed it,and reliable fastening, are not allowed to have loosening.
4, You can choose the rigid or flexibility coupling. In the circumstances of great vibration or
the coaxiality is larger than 0.05 mm, it's better to choose flexible couplings.
5, The installed mesa should have certain strength.
6, The coupling should rely on the shoulder in both ends of the sensor.
Special attention
1:The requirements of Installation environment:
2:Temperature: - 10 °c ~ 60 °c
3:Humidity: < 90% RH
4:No inflammable, explosive
5:When installation, don't knock and collide sensor.
6:Prohibit charged operation when installing.
7:The sensor is not waterproof, explosion-proof design, pay attention when using.
8:Avoid strong interference, and ensure the normal operation of the equipment.
AGN Digital High-Speed Impact Torque Tester
Function
The high-speed impact torque meter is an intelligent multi-functional measuring instrument
which is designed for testing various kinds of torque. It main used in testing and calibration
various kinds of electric pneumatic screwdriver set, the torque of torque wrench, all kinds of
products refer to testing of screw down force, parts torsion destructive testing etc.
With features of simple operation, high precision, easy to carry, complete functions etc.
It's widely used in various kinds of electric, light industry, machinery manufacturing,
research institutions, etc.
Main features
1:High precision, high resolution, quick sampling speed, full-screen display.
2: Adopting high precision torque sensor, with torque direction display
3:Upper and lower limit value setting, red and green indicating lights and buzzer audible
and visual alarm.
4:Three units can be switched each other (N·m, kgf·cm, Lb·in).
5: Real-time, peak, automatic peak three models of optional switch.
6:Use USB interface and PC communications, synchronous test function can connect to the
computer, computer synchronous display test force graph and the detailed test process,
can save, print, doing all sorts of analysis.
7: Peak holding, remove automatically function, remove time to set freely.
8: Large storage, can save 99 groups of test data.
9:Without automatic shutdown function, time can be set freely.
Parameter
Type
Index | With printer | AGN-1P | AGN-2P | AGN-3P | AGN-5P | AGN-10P | AGN-20P |
| No printer | AGN-1 | AGN-2 | AGN-3 | AGN-5 | AGN-10 | AGN-20 |
Measuring
range /
Division
value | N·m | 1.0000/
0.0001 | 2.0000/
0.0001 | 3.0000/
0.0001 | 5.0000/
0.0001 | 10.000/
0.001 | 20.000/
0.001 |
| Kg·cm | 10.210/
0.001 | 20.421/
0.001 | 30.631/
0.001 | 51.052/
0.001 | 102.10/
0.01 | 204.21/
0.01 |
| Lb·in | 8.862/
0.001 | 17.724/
0.001 | 26.586/
0.001 | 44.311/
0.001 | 88.62/
0.01 | 177.24/
0.01 |
| Precision | ±1%F.S |
Peak Value
Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
Continuous
using time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Size | With printer:230mm×95mm×180mm
No printer:230mm×70mm×125mm |
| Net Weight | With printer:5KG No printer:3KG |
| Power adapter | Input:AC 110-220V 50HZ Output:DC 10V 300mA |
Type
Index | With printer | AGN-1000P | AGN-2000P | AGN-3000P | AGN-5000P |
| No printer | AGN-1000 | AGN-2000 | AGN-3000 | AGN-5000 |
Measuring
range
/ Division
value | N·m | 1000.0/0.1 | 2000.0/0.1 | 3000.0/0.1 | 5000.0/0.1 |
| Kg·cm | 10210/1 | 20420/1 | 30630/1 | 51051/1 |
| Lb·in | 88622/1 | 17724/1 | 26586/1 | 44311/1 |
| Precision | ±1%F.S |
Peak Value
Sampling Frequency | 2000HZ |
| Power | 8.4V 1.2VX7 Ni-MH Battery group |
| Charging Time | 4~6 Hours |
Continuous using
time of battery | About 10 Hours |
| Battery life | ≥300 times |
| Size | With printer:Host display part 230mm×95mm×180mm
No printer:Host display part 230mm×70mm×125mm
|
| Net Weight | With printer:8.5KG No printer:6.5KG |
| Power adapter | Input:AC 220V 50HZ Output:DC 10V 300mA |
