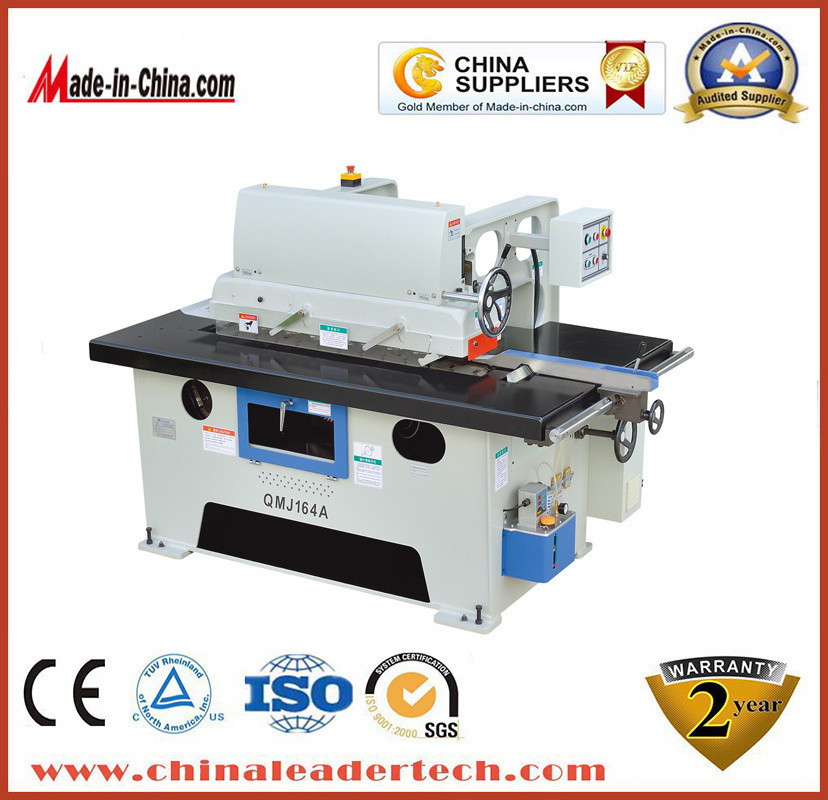

High Precision Full Automatic Circulartrimming Saw

High Precision Full Automatic Circulartrimming Saw
Price: US $ 9000-10000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: LTK-QMJ164A
Weight: 1950kg
Total Power: 18kw
Max Cutting Thickness: 120mm
Throat Thickness: 660mm
Feeding Speed: 10-40m/Min
Layout: Vertical
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
Certification: ISO
Type: Trimming Rip Saw

Product Description

Model:UnitLTK-QMJ164A
Max. working thicknessmm120
Min. working lengthmm120 (triming 250mm)
Throat thicknessmm660
Saw spindle Dia.mmΦ50.8
Saw spindle speedr/min2950-4000
Feed speedm/min10-40
Saw blade Dia.mmΦ355~455
Motor power            kW13.57kw/18HP
Diameter of dust collectormmΦ150*2
Air demand for dust collection systemsm3/h1600
Overall dimensionsmm2250*1680*1550
Weightkg1950







QINGDAO LEADERTECH MACHINERY is one of the leading industrial pioneer groups which established in 1999 from Qingdao City, China, And with over 8 years experience and grow up rapidly with the well-known reputation since 2007, especially we are focusing on the CNC router machines, CNC NESTING system machines, CNC carving and Engraving machines, CO2 laser cutting machines, finer laser cutting machines, 4 Axis CNC machines, 5 Axis CNC machines, many products and spare parts with high advance technology, producing a variety of wood working machines and products for a range of activities like carpentry, kitchen line companies, furniture factories, interior design companies, models, Advertising field, metals works, contracting company etc… We believe in quality is the life of our products, therefore we are using the first-class technology and components, such as original Italy HSD Spindle, Japanese servo system, Germany Becker Vacuum Pump, Japanese THK Rails and Bearing, Taiwan Syntec control system, Israel OASI control system etc…

Also we have been bonded together with the worldwide top brands manufacturers from China to provide the key of success of our customers, to provide engineering factory plan, placement of the machines, air system, dust extraction system, to provide full factory layout engineering plan, to provide all the production line from A-Z.

We have established the strategic cooperation relationship with more than 8 dealers and distributors from different countries and regions.

First – Class experts in the areas of after sales services to guarantee all the woodworkers, whether artisans, commercial companies or industry enable to get full time supports and ensure excellent precision and best processing quality. Specially trained technicians is the strong support for you, and they carry out the delivery, installation, commissioning, the first machine configuration settings and training which ensures that your machine can be used productively from the very first day of use.

We offer a huge range of tools and accessories, everything is available in our hand, and available to order on line, the requirements analysis by our experts will show you new solutions for optimizing your productivity and earnings.
