| Prod Model: |
MM-D420X1500DPA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Swing Over Bed: |
410 mm |
| Distance Between Centers: |
1500 mm |
| Display Type: |
Digital Position Indicator |
| Spindle Taper: |
Mt6 |
| Tailstock Taper: |
Mt4 |
| Spindle Bore: |
52 mm |
| Main Motor: |
3300W / 2200W |
| Spindle Speed: |
48 to 1800 Rpm |
| Connecting Voltage: |
Three Phase 400V |
| Gross Weight: |
1950 Kgs |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

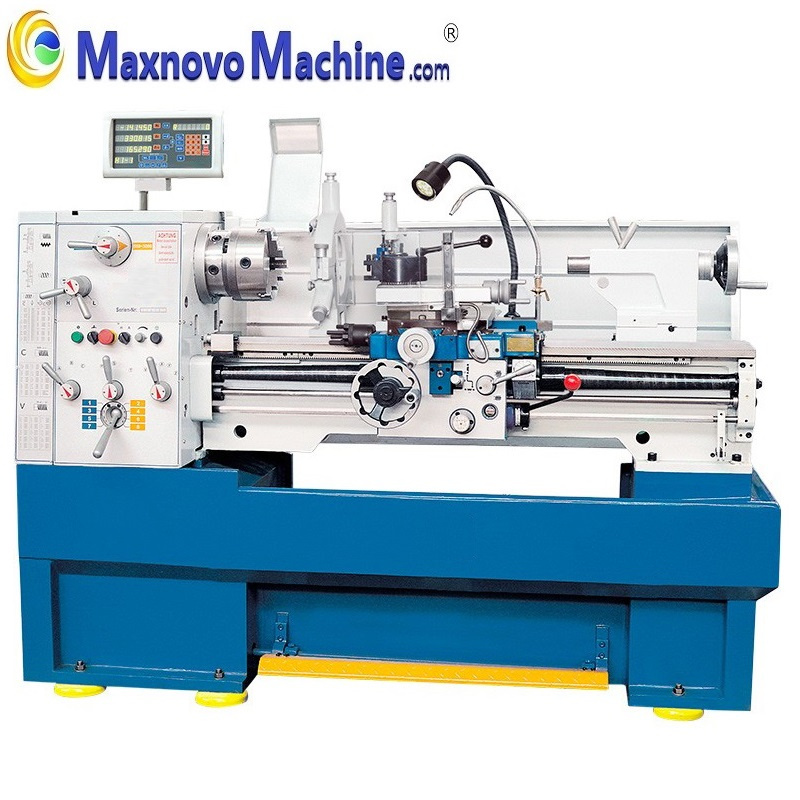

Such kind of MM-D420X1500DPA is the 16" X 60" inch High Precision Universal Big Hole Lathe / Lathe Machine / Metal Lathe / Engine Lathe / Gap-bed Lathe Machine / Precision Lathe Machine / Industry Metal Bench Lathe with Digital Position Indicator .
Precise Centre Lathes. Advanced Technology, Complete Equipment, Easy-to-Operate. DPA Version with Digital Position Indicator.
It is a really fun project. I was talking to my gunsmith one day and he mentioned that he was frustrated with the lathe he had and that no one made a lathe specifically for gunsmithing. I asked him what kind of features he would like to see. He gave me a "laundry" list that included super high precision spindle bearings with high precision ground gears, a tailstock that was precisely tuned at the factory with a lock that could accommodate a torque wrench (the tailstock center can be torqued down to bring it to exact center with the spindle center), two coolant nozzles for chambering, a longer tailstock for precise barrel support, support screws for outboard part of the spindle, etc...To make a long story short, we have incorporated all those features to come up with the first lathe ever to be designed specifically for gunsmithing. Customers will be proud to have them.
16" X 60" inch High Precision Metal Centre Lathe With Digital Position Indicator--Advanced Technology, Complete Equipment, Rasy-To-Operate.
Main Feature :
Convincing Arguments: Quality, Efficiency and Price -Centre Width 1500 mm, Turning Diameter Over Lathe Bed Ø 410 mm, Spindle Bore Ø 52 mm-For reducing non-productive time, this machine can install 3-Axis Digital Position Indicator -Easy, smooth and precisely adjustable speed and feed settings-Hardened, polished gears and shafts, also in feed gear unit-Hardened and ground bed guide-ways -Spindle Seat Camlock DIN ISO 702-2 No. 6 -Adjustable scale of the threading gauge -Electrical system with high quality components -Foot brake - foot operate emergency stop device -Heavy ribbed machine bed and massive one-piece cast-iron frame provide solid basis for this machine -Wide, hardened and guide-ways ensure superior turning results and long life -State-of-the-art main spindle bearing with high-quality angular ball bearings-Guaranteed true running accuracy of the spindle nose of better than 0.015mm-Running in an oil bath, hardened and ground with 2 re-adjustable precision taper roller bearings -All metric thread pitch in range from 0.2 to 14mm/rev and all inch threads in range from 72 - 2 threads per inch without replacing change gears by means of gear levers adjustable on control panel -Right-handed / Left-handed rotation on the bed slide switchable via stem -Large, hardened, polished gears-Electro-mechanical foot brake reduces downtime significantly-Adjustable tailstock for taper turning, handwheel feature adjustable scale (0,02 mm)-The remove-able bridge allows machining of work-pieces with a big diameter-Coolant equipment with separate coolant tank separately with filling level display -and oil separator, Easy and compete draining and cleaning according to DIN-Central lubrication at the bed slide -Base frame and lathe bed made from one-piece mechanize casting -Inductive hardened, polished grey cast-iron machine bed-Centrally located, logical switches for feeds and threads with lead-screw and feed rod-Large spindle bearings and high-precision headstock ensure excellent concentricity -Halogen machine lamp with articulated arm -Acceptance certificate-Protective cover for lead screw (optional) -Connecting voltage Three Phase 400V -Certificate of Original (CO, FORM A, FORM E, FORM F)
Technical Data :
| Product Name : | High Precision Metal Centre Lathe Machine |
| Product Item : | MM-D420 X 1500 DPA |
| Machine Data |
| Max Swing over Bed : | Ø 410 mm |
| Distance between centers : | 1500 mm |
| Turning Diameter over Cross Slide : | Ø 255 mm |
| Turning Diameter in the Bed Bridge : | Ø 580 mm |
| Length of Bed Bridge : | 260 mm |
| Centre Height : | 205 mm |
| Bed Width : | 250 mm |
| Spindle |
| Spindle Taper : | MT 6 |
| Spindle Bore : | Ø 52 mm |
| Quadruple Tool Holder Height : | Max. 20 X 20 mm |
| Spindle Seat : | Camlock DIN ISO702-2 No.6 |
| Speed Range |
| Spindle Speed : | 45-1800 RPM |
| Number of Steps : | 16 Steps |
| Tailstock |
| Tailstock Taper : | MT 4 |
| Tailstock--Sleeve Diameter / Sleeve Travel : | Ø 50 mm / 120 mm |
| Travels |
| Travel of Top slide : | 140 mm |
| Travel of Cross slide : | 230 mm |
| Feeds and Thread Pitches |
| Longitudinal feed in range of : | 0.05-1.7 mm/rev (17 feeds) |
| Transverse feed in range of : | 0.025-0.85 mm/rev (17 feeds) |
| Pitch-Metric in range of : | 0.2-14 mm / rev (39 thread pitches) |
| Pitch-Inch in range of : | 72-2 GPZ (45 thread pitches) |
| Diametric Pitch in range of : | 8-44 DP (21 trapezoid thread) |
| Modular Threads in range of : | 0.3-3.5 mm (18 modular thread) |
| Electrical Connection |
| Main Motor : | 3300W / 2200W |
| Connecting Voltage : | Three Phase 400V |
| Gross Weight : | 1950 KGS |
| Packing Size : | 2525 X 915 X 1615 mm |
| Standard Accessory : | Digital Position Indicator, 3-Jaw Chuck, 4-Jaw Chuck, Face Clamping Disc, Foot Brake, Steady Rest, Follow Rest, Machine Lamp, Coolant Equipment, Change Gear Kit, Tools and Box |
As a professional OEM manufacturer, We have full sincerity to look for good distributor, wholesaler or agent in your country to enlarge business share together. Please visit our company website ( www.maxnovomachine.com) to send enquiry to us to get direct factory best competitive price immediately, it is only for you !
This high precision 16" x 60" inch metal engine lathe machine with MT6 spindle taper is an incredible value and perfect for small industry. Lead screw lathes with feed gear for demanding users. Vario type with infinitely variable speed control for brushless motor.
We are the OEM manufacturer vendor for a very famous Germany Top Brand Machine Company for many years, we also hope to support you together.
