| Price: | US $ 2600-10000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Shaping Mode: | Injection Mould |
|---|---|
| Process Combination Type: | Single-Process Mode |
| Application: | Hardware |
| Installation: | Fixed |
| 1 | Mo uld Base | LKM, DME, HASCO etc ; |
| 2 | Cavity Material | 1.2738,1.2343, 1.2344, S7, H13, P20HH, GS738H, LKM738H, 718, 8407, S136, Calmax 635 NAK80, SKD-61,NIMAX, 45#, 50#, Aluminum for prototype mold etc. |
| 3 | Steel Hardness | 20-60HRC |
| 4 | Treatment | Pre-Harden, Nitride, Heat treatment, Quenching |
| 5 | Cavity Qty | Single-cavity / Multi-cavity |
| 6 | Runner | Cold runner or Hot runner :YUDO/ HUSKY/MOLD-MASTER/SYNVENTIRE/INCO/ MASTIP/ HASCO/ DME |
| 7 | Gate | Submarine gate, tunnel gate, side/edge gate, direct gate, pin point gate, sprue gate, diaphragm gate, fan gate, cashew gate, hook gate, hot tip, hot drop, valve gate etc. |
| 8 | Plastic material for parts | PS, SAN, PA, POM, ABS, PP, PET, PC, PE, HDPE, PA66+GF, PVC, TPE, TPU, TPV etc |
| 9 | Mould Life | 50K - 1 million cycles |
| 10 | Design Software | UG, CAD, PRO-E, Solid Works etc, |

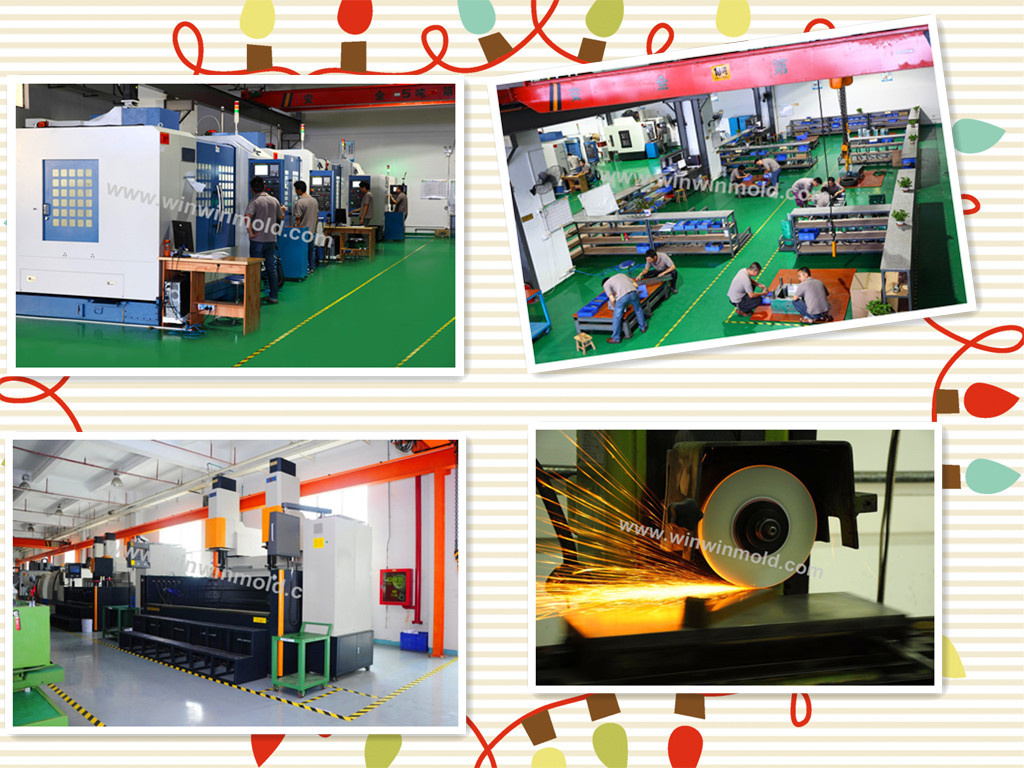

| 11 | Process | CNC, high speed carve, EDM ,wiring-cutting, drill, polish etc |
| 12 | Quality | ISO9001:2000 Certified |
| 13 | Lead Time | 10-30 work days depends on the structure and size of products |
| 14 | Package | Wooden Case Package or according to customer requirement |
| 15 | Price Term | EX Works, FOB Shenzhen, FOB Hong Kong, China, CFR, CIF, DDU, DDP |
| 16 | Payment | T/T, Western Union , Money Gram |
| 17 | 20 years professional manufacturing experience, specialized in design and manufacture of plastic injection mould ( tooling) for Automotive, Electrical appliances ,House wares , Medical devices, Toys and Games, Communication industries and etc. | |
| 18 | OEM & ODM orders are welcome. | |
Quality molds begin with quality design!

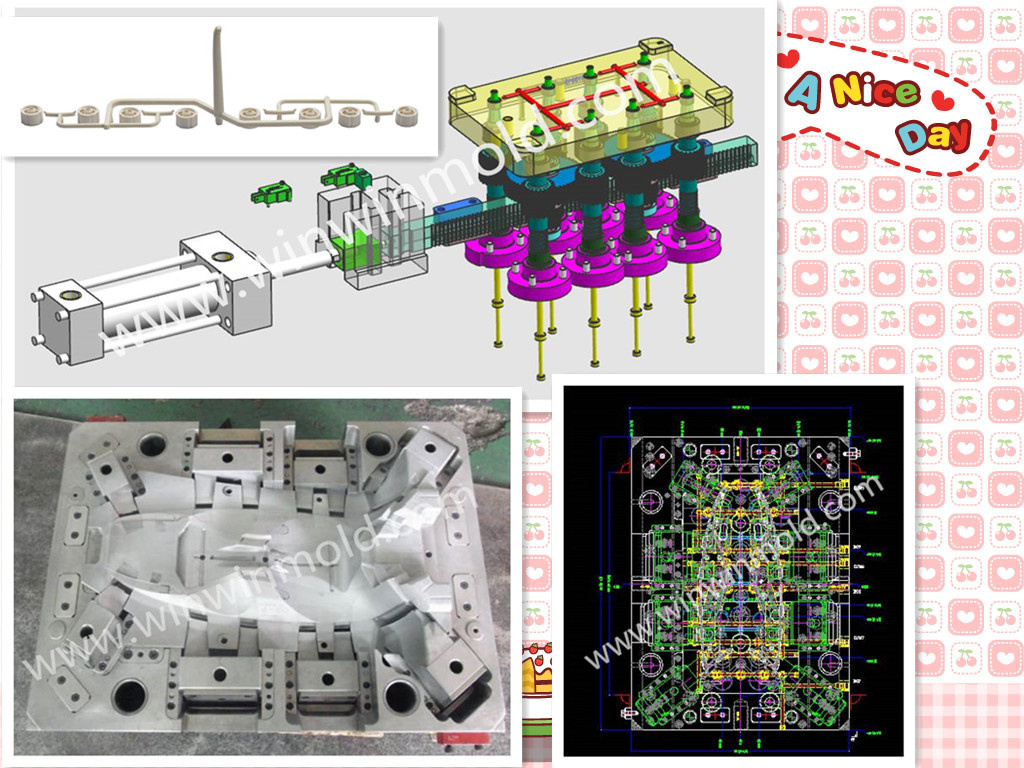

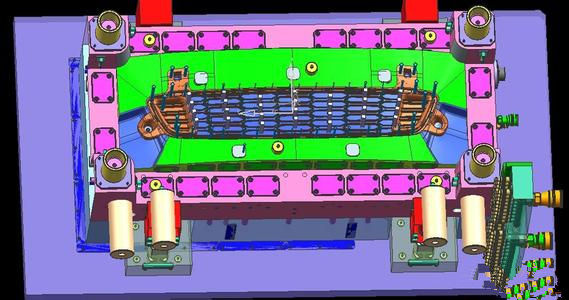

Engineering CapabilityWin Win Mold's engineering team is using international advanced CAD/CAE/CAM design and processing integration system. Our engineers collaborate closely with our customers on all aspects of the programs so as to develop the best designed molds and that are easy to maintain and plastic components that are cost-effective to produce.
★On-site injection plastic mold repair & maintenance
★Injection machines ranging from 80 - 600 tons
★24-hour plastic molding manufacturing shifts
★Long and short plastic injection molding
production runs
★Insert molding, dual-color molding service
★General resin and industrial plastic such as ABS,
PP, PE, HDPE, LDPE, PC, PC+ABS, POM, PMMA,
PA66+33%GF, PPT, PVC, etc.
Win Win Mold is a full service Plastic Injection Molding manufacturer in custom manufacturing. With our experienced tool makers and setters we can achieve optimum product output in a minimum of time. Your product is molded to your specifications and put through our quality inspection department to guarantee accuracy and quality at all times.
FAQ:
Q. I have an idea for a new product, but I don't know if it can be manufactured. Can you help?
A. Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.
Q. What are the advantages to have my parts manufactured locally?
A. Win Win Mold can offer quick reaction times to any changes in specification, batch size or material. We can ship small or large quantities anywhere in North America, Europe overnight to accommodate unforeseen changes in demand.
Q. My components have already been developed on CAD. Can you use the drawings?
A. Yes! DWG, DXF, IGES, Solid works and STP, X_T files can all be used to generate quotes, models and mould tools - this can save time and money in producing
your parts.
Q. Can I test my idea/component before committing to mould tool manufacture?
A. Yes, we can use CAD drawings to make Prototype models for design and functional evaluations or market test.
Q. What type of plastic is best for my design/component?
A. Materials selection depends on the application of your design and the environment in which it will function. We will be happy to discuss the alternatives and suggest the best material.
Q. What type of mould tool do I need?
A. Mould tools can be either single cavity (one part at a time) or multi-cavity (2,4, 8 or 16 parts at a time). Single cavity tools are generally used for small quantities, up to 10,000 parts per year whereas multi-cavity tools are for larger quantities. We can look at your projected annual requirements and recommend the
best tooling option for you.
Q. Ok, I've decided to go ahead with my project. How long will it take to get my parts?
A. It can take 3 to 6 weeks to have the mould tool manufactured depending on the part's complexity, size and the number of impressions/ cavities (single or multiple). After we receive your final approval on the tool preliminary design, you can expect delivery of T1 parts within 3-6 weeks. And during mold building process, mold build Weekly Update will be provided to you every week for your better understanding of the manufacturing progress in our work shop.
