| Prod Model: |
FY-EP |
| Theory: |
Electromagnetic Pump |
| Pressure: |
High Pressure |
| Voltage: |
380V |
| Structure: |
Multistage Pump |
| Motor Power: |
0.75-5.5kw |
| Tank Capacity: |
12-100L |
| Pump Type: |
Single and Double Acting |
| Weight: |
30-120kg |
| Color: |
Yellow |
| Working Pressure: |
700bar |
| Pressure Medium: |
Oil |
| Type: |
Eelectric |
Product Description
High Pressure Hydraulic Hand Pump for Sales
Features:1. Hydraulic Pump special for hydraulic wrench.
2. Parameter: 2-stage pump with heat exchange, 220V/380V, 50Hz, double-phas
3. The maximum operating pressure: 70 MPA
4. Flow: Low pressure 6 L/m, high pressure 0.7L/m
5. Motor: 220V, 50Hz, 800W, double-phase
6. Conformable temperature: 40-70oC
7. Operation: Suitable for single and multi-operation (2 pair ports).
8. Two stage with heat exchage
9. Remote Control Wire

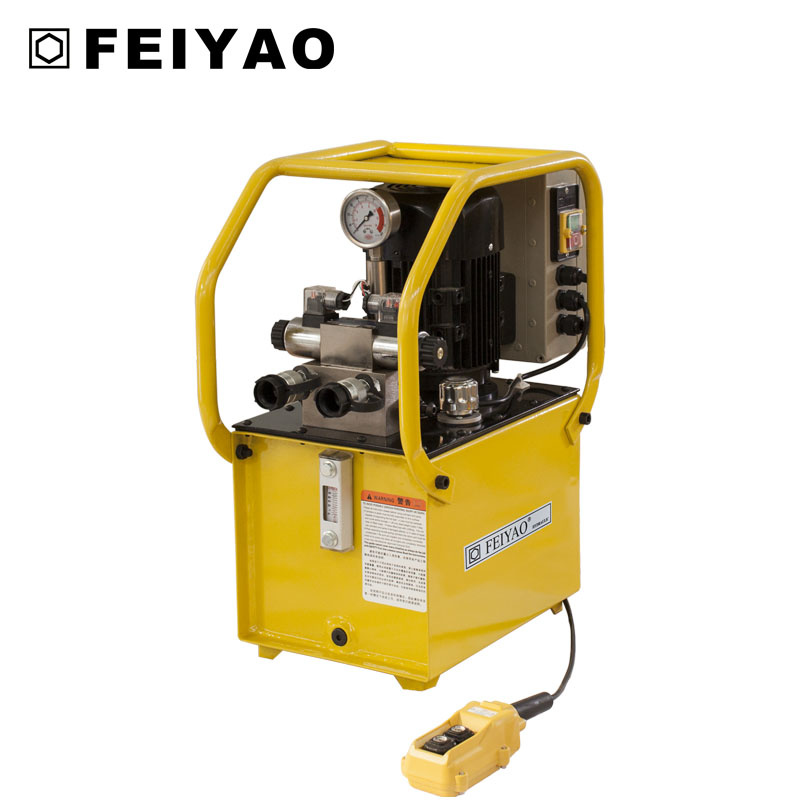

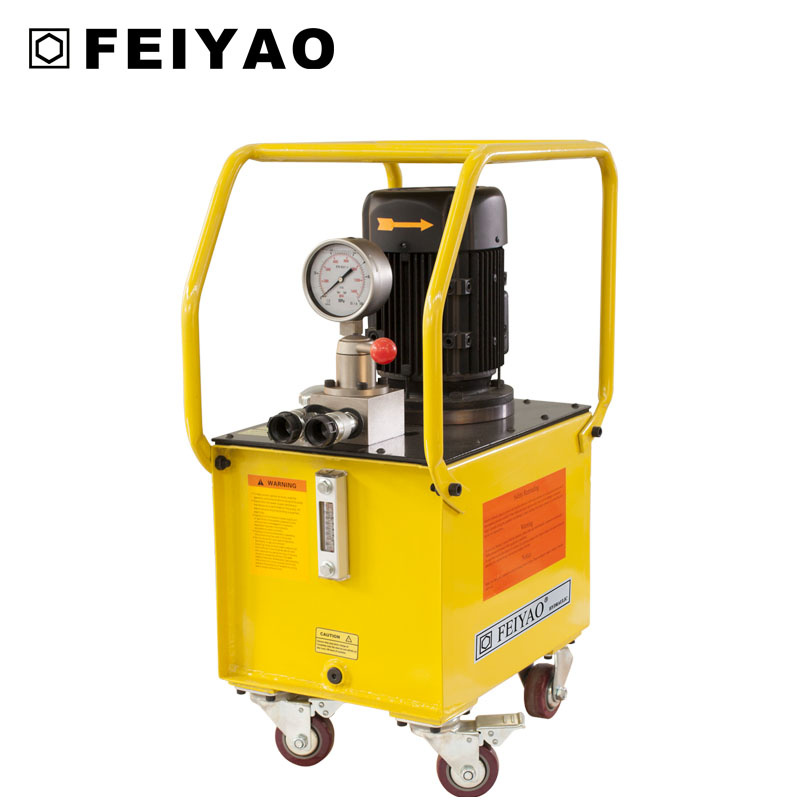

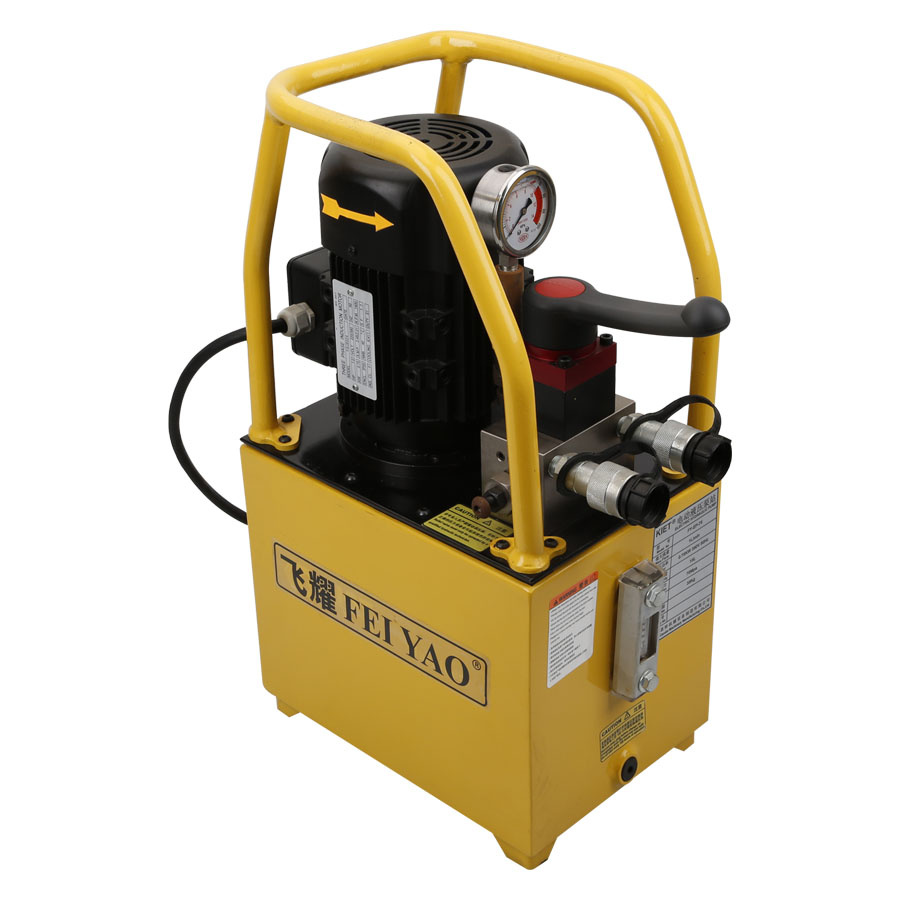

Products Photos
Parameter information | model | working pressure(Mpa) | flow (L/Min) | tank capacity | motor power(kw) | voltage(v) | dimension(L×W×H) (mm) | weight(kg) |
| high pressure | low pressure | high pressure | low pressure | (L) |
| FY-ER-75 | 70 | | 0.8 | | 12 | 0.75 | 380 | 400×260×440 | 30 |
| FY-EPR-150 | 70 | | 0.8 | | 12 | 1.5 | 220 | 400×260×440 | 30 |
| FY-EP-150 | 70 | 10 | 1 | 6 | 24 | 1.5 | 380 | 500×350×600 | 60 |
| FY-EP-220 | 70 | 10 | 1.5 | 7 | 50 | 2.2 | 380 | 500×350×600 | 90 |
| FY-EP-220 | 70 | 10 | 1.5 | 7 | 60 | 2.2 | 380 | 610×450×860 | 90 |
| FY-EP-550 | 70 | 10 | 4 | 10 | 100 | 5.5 | 380 | 750×540×880 | 120 |

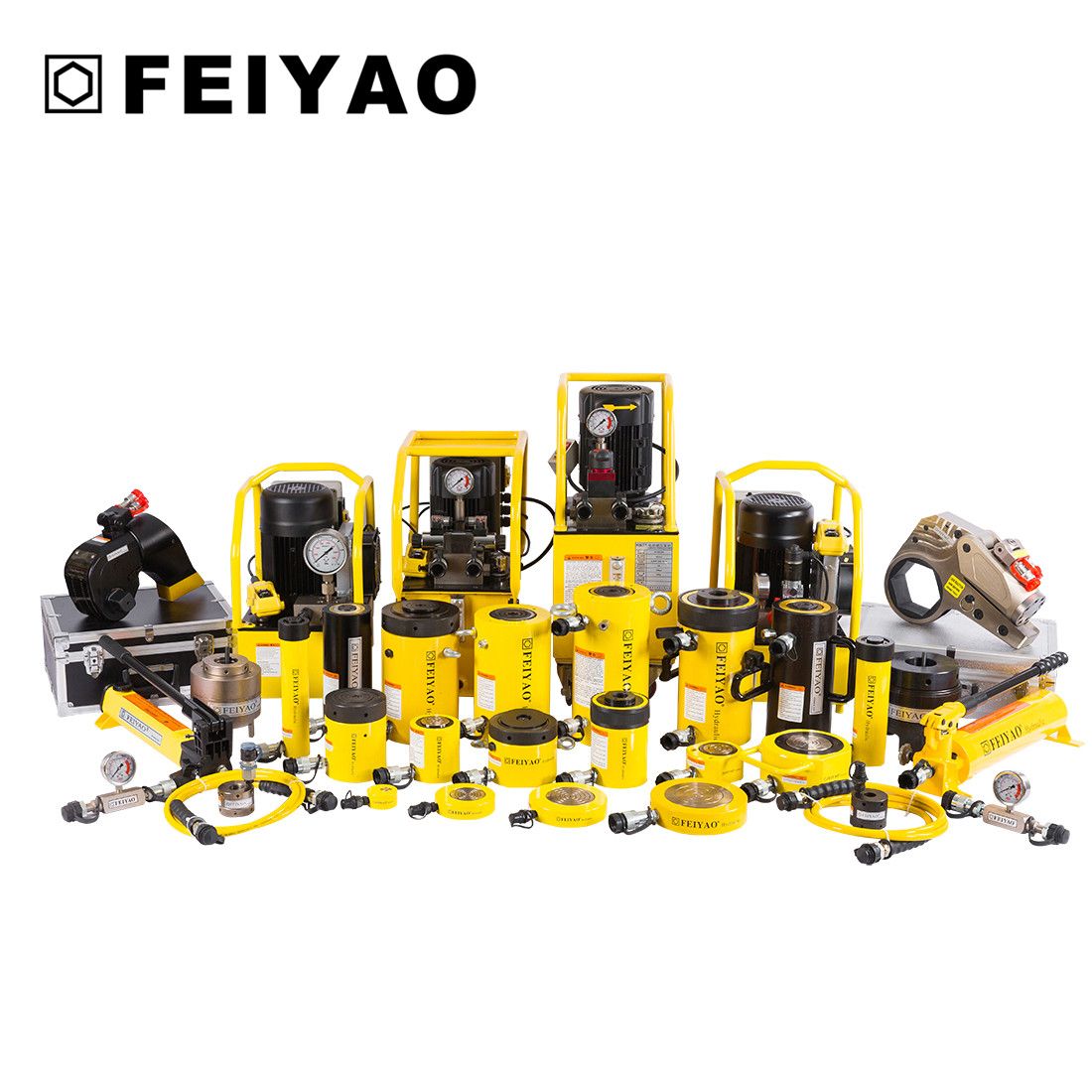

Other Products
Brief introduction of FEIYAO
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is
always your reliable friends.Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
For more information please visit our website:www.fyhydraulic.cn
We are professional manufacturer, offer you competitive price.
If you have any questions about these products , please contact us ,we will try our best to help you !
