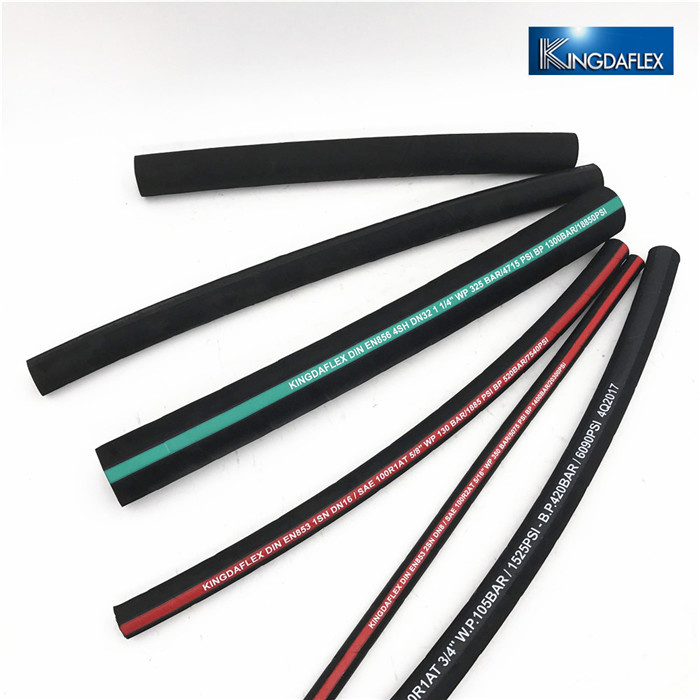

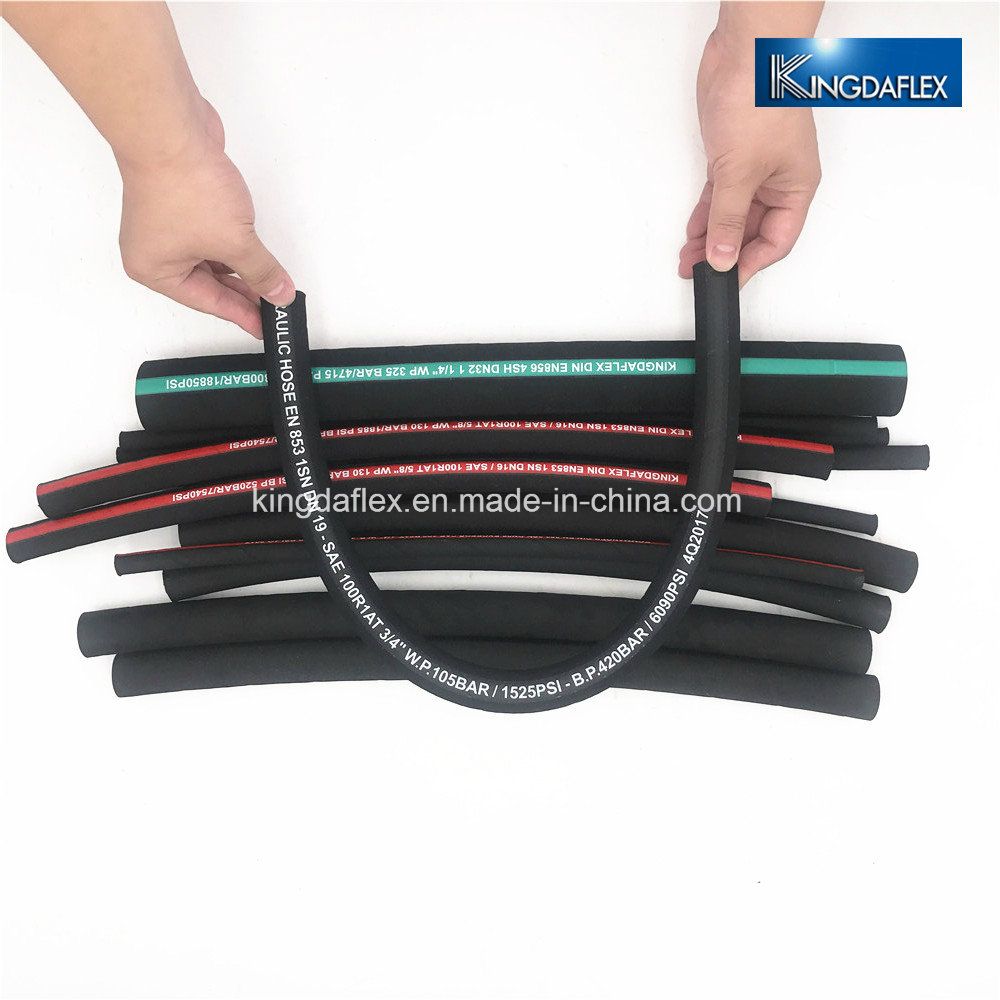

High Pressure Hydraulic Hose (R1at/1sn/R2at/2sn)
| Price: |
US $ 0.56-10.22/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
R1, R2, 1SN, 2SN, 4SH, 4SP |
| Certification: |
ISO9001; SGS |
| Output: |
800, 000m/Month |
| Application: |
Construction Equipment, Coal Mining, Power Transmi |
| Standard: |
SAE100rat/DIN En853 |
| Cover: |
Oil, Abrasion and Weather Resistant Synthetic Rubb |
| Color: |
Black |
| Material: |
Synthetic Rubber |
| Capability: |
Oil, Abrasion and Weather Resistant |
Product Description
High Pressure Hydraulic Hose (R1AT/1SN/R2AT/2SN)High Pressure Hydraulic Hose SAE 100R1/EN853 1SN 1.Tube: oil resistant synthetic rubber
2.Reinforcement: one high tensile steel wire braid
3.Cover: abrasion and weather resistant synthetic rubber
4.Temperrature range: -40°C to +100°C
5.Applications: To deliver medium-high pressure petroleum and water-based hydraulic fluids such as mineral oil, glycol, lubricating oil, emulsion, hydrocarbon etc. | DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Mini. B.R. | Weight |
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m |
| 5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100.0 | 14280 | 89 | 0.19 |
| 6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90.0 | 12840 | 102 | 0.21 |
| 8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85.0 | 12280 | 114 | 0.24 |
| 10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.33 |
| 13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.41 |
| 16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52.0 | 7420 | 203 | 0.45 |
| 19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42.0 | 6000 | 241 | 0.58 |
| 25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 |
| 32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 |
| 38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 |
| 51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 |

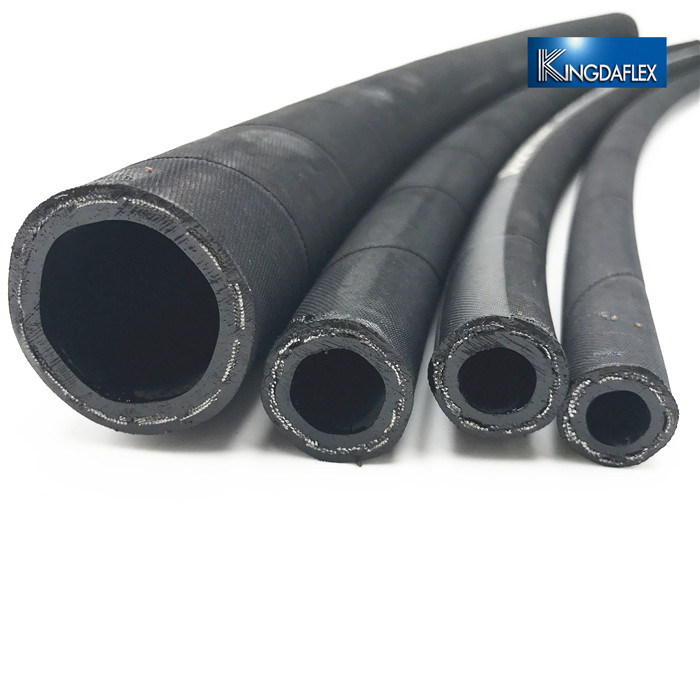

High Pressure Hydraulic Hose SAE 100R2/EN853 2SN 1.Tube: oil resistant synthetic rubber
2.Reinforcement: two high tensile steel wire braid
3.Cover: abrasion and weather resistant synthetic rubber
4.Temperrature range: -40°C to +100°C
5.Applications: To deliver medium-high pressure petroleum and water-based hydraulic fluids such as mineral oil, glycol, lubricating oil, emulsion, hydrocarbon etc. | DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Mini. B.R | Weight |
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m |
| 5 | 3/16 | 4.8 | 11.1 | 13.4 | 41.4 | 6000 | 16 | 23720 | 89 | 0.32 |
| 6 | 1/4 | 6.4 | 12.7 | 15.0 | 40.0 | 5800 | 160 | 22840 | 102 | 0.36 |
| 8 | 5/16 | 7.9 | 14.3 | 16.6 | 36.0 | 5250 | 140 | 20000 | 114 | 0.45 |
| 10 | 3/8 | 9.5 | 16.7 | 19.0 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 |
| 13 | 1/2 | 12.7 | 19.8 | 22.2 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 |
| 16 | 5/8 | 15.9 | 23 | 25.4 | 25.0 | 3630 | 100 | 14280 | 203 | 0.8 |
| 19 | 3/4 | 19.0 | 27 | 29.3 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 |
| 32 | 1 1/4 | 31.8 | 44.5 | 48.3 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 |
| 38 | 1 1/2 | 38.1 | 50.8 | 54.6 | 9.0 | 1310 | 36 | 5140 | 508 | 2.65 |
| 51 | 2 | 50.8 | 63.5 | 67.3 | 8.0 | 1160 | 32 | 4560 | 635 | 3.42 |
Company Information:

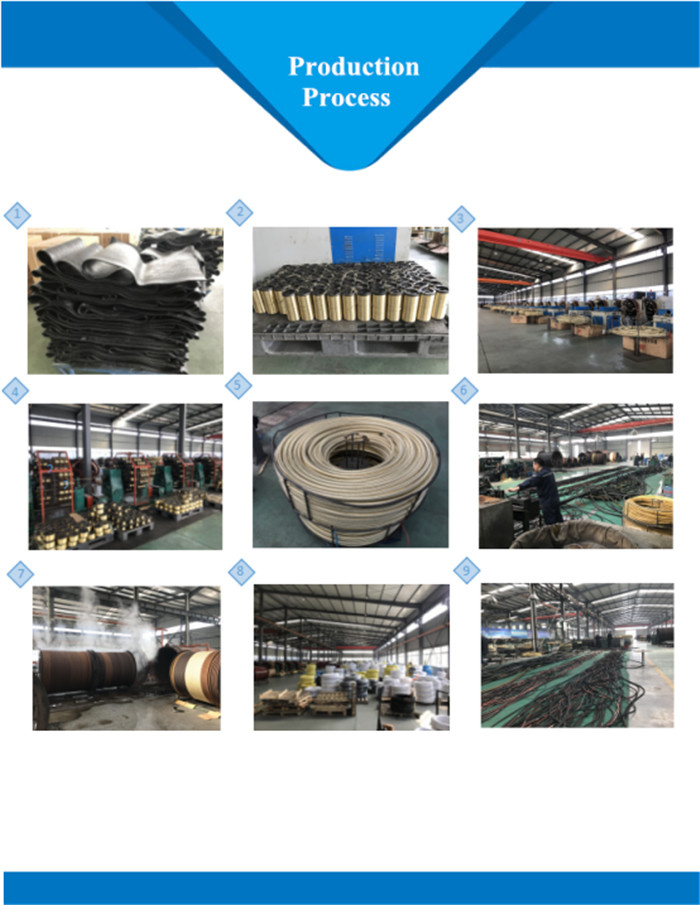

Production Process:
Our Main Product:1. Hydraulic Hose
SAE 100R1AT/EN853 1SN
SAE 100R2AT/EN853 2SN
SAE 100R5
SAE 100R7/R8
SAE 100R9/R12
SAE 100R14/Teflon hose
EN856 4SP/4SH
2. Smooth(Wrapped) Air/Water/Oil hose
3. Welding hose
Oxygen hose
Acetylene hose
Lpg hose/Propane hose
Twin hose
4. Oil/Water suction and discharge hose
5. Sandblast hose

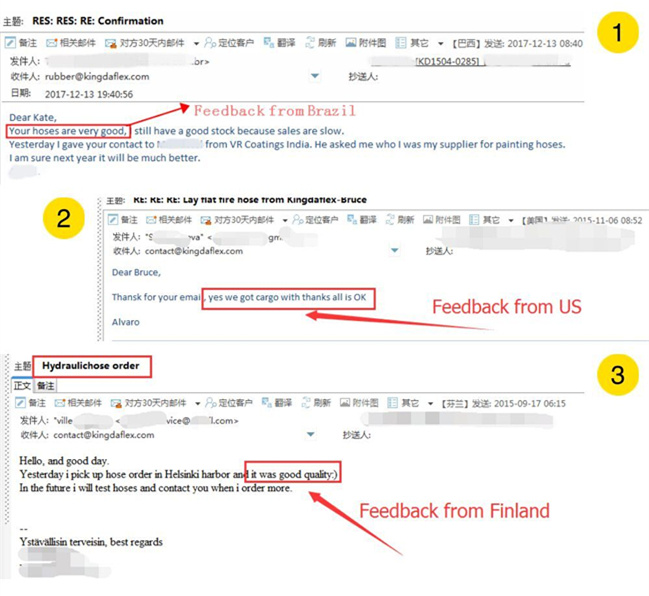

6. Fire sleeveCustomer Feedback:
FAQ:Q: Are you trading company or manufacturer ?
A: We are a manufacturer and exporter in China for more than 15 years in the market.
Q: How long is your delivery time?
A: Generally it is 20 days for one container or it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: T/T, L/C, O/A, Western Union etc.
Kingdaflex Industrial is a professional manufacturer & exporter of hydraulic hose and industrial hose in China many years. Since the establishment, we have controlled and inspected raw materials strictly to ensure the quality. Meanwhile, we are continuing to refine our manufacturing and processing systems to achieve customers' requirements all the time.
Hydraulic Hose including:
SAE100 R1AT/EN853 1SN
SAE100 R2AT/EN853 2SN
EN857 1SC/2SC
EN856 4SH/4SP
SAE100 R3/R6/R5/R7/R8
SAE100 R16/R17
R12/R13/R15
R14/Teflon Hose
Fire Sleeve
Hose Fitting
Industrial Hose including:
Oxygen Hose, Acetylene Hose, LPG Hose, Twin Hose
Air/Water Hose, Oil/Fuel Hose
Sandblast Hose
Suction & Discharge Hose
Concrete Pump Hose
Slurry Hose
PVC Hose
Our products are widely used in agriculture, construction, coal mining, machinery, garden industry, automobile industry, oil & gas industry. With competitive prices, stable products quality and timely delivery, We have established long-term business relations with customers from more than 30 countries.
Welcome customers from all over the world to contact us!
