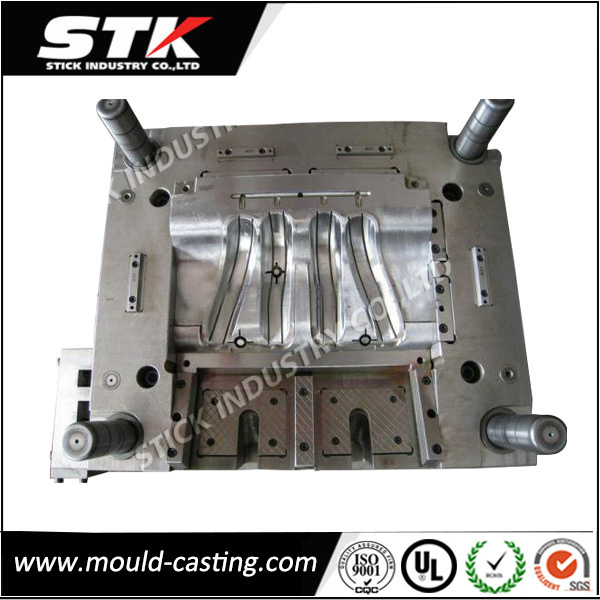

| Prod Model: |
die casting mould |
| Material For Die Casting Mold: |
P20,H13,S136,Nak80,718,2738,2316,SKD61 |
| Insert Moulding Material: |
Zinc,Aluminum,Steel, Brass |
| Drawing: |
Solidworks, Proe, Ug, Auto CAD, Pdf |
| Shaping Mold: |
Die Casting Mold |
| Delivery Time: |
25-30 Days |
| Mould Range: |
20-25t |
| Mold Lifetime: |
300k to 1500k |
| Cavity: |
1*1,1+1,1*2,1+1+1 |
| Shot Runner: |
Cold or Hot Runner,Hasco/Dme |
| Zinc Die Casting Machine: |
80t-280t |
| Application: |
Commodity |
| Material: |
Steel |
| Surface Treatment: |
Polished |
Product Description

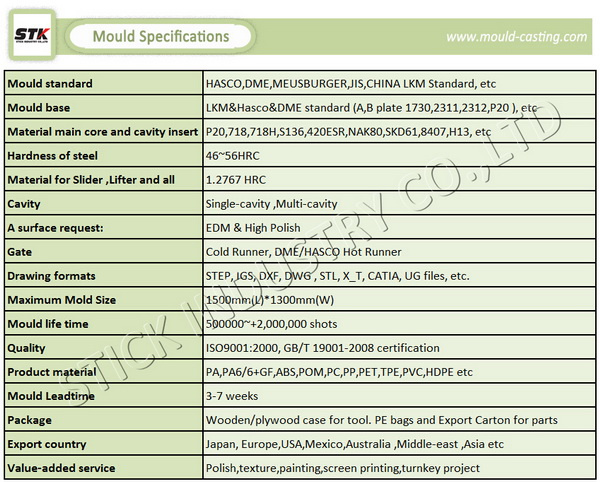

1) Mould Standard: HASCO, JIS, DME etc
2) Core material: H13, 8407 etc
3) Cavity: single or multiple (1*1,1+1,1*2,1+1+1)
4) Hardness of steel: 40-60 HRC
5) Lead time: 3-6 weeks depending on products
6) Product Material: Aluminum alloy, Zinc alloy
7) Suitable for both cold chamber and hot chamber machines
8) Machine Size: Zinc Die Casting Machine: 80T-280T; Aluminum Die Casting Machine: 200T-650T
| Why choose us? | Xiamen Stick Industry began in the mold manufacturing industry in 2002, and our company has grown steadily since then. We have an experienced and dedicated team that supports all aspects of rapid mold manufacturing and plastic injection mold design.
l In-house mold design and mold manufacturing
l Precision single and multi-cavity molds
l Rapid prototype to high volume molds
l Design for manufacturability
l Fast turnaround |

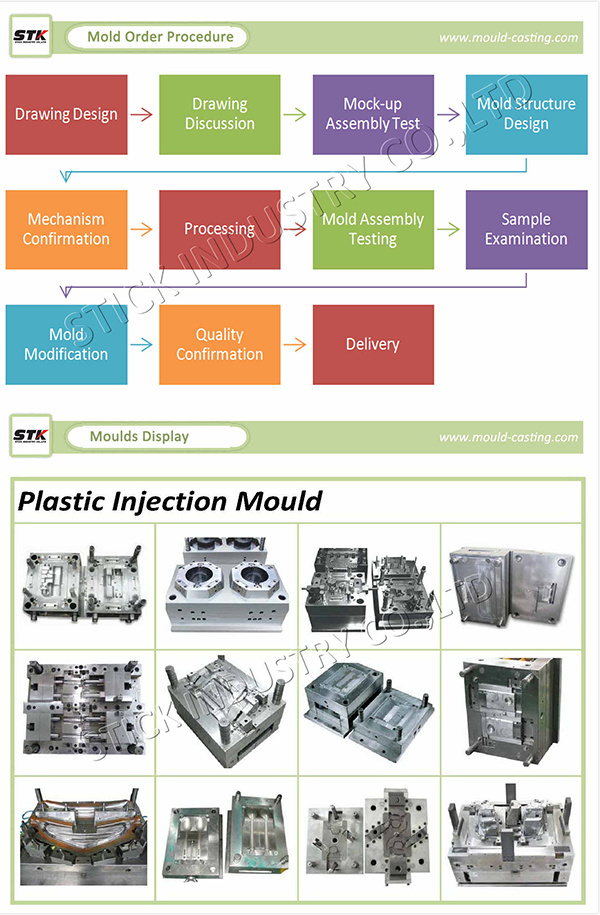

| Flow Chart | 1. Drawing design |
| 2. Drawing discussion |
| 3. Mock-up assembly testing |
| 4. Mold structure design |
| 5. Mechanism confirmation |
| 6. Processing |
| 7. Mold assembly testing |
| 8. Sample examination |
| 9. Mold modification |
| 10. Quality confirmation |
| 11. Delivery |
| Material utilized in mould design | P20, H13, S136, NAK80, 718, 2738, 2316, SKD61, etc
Tool steel or beryllium-copper are often used. Mild steel or aluminum is only suitable for very short production runs. |
We believe that the best way to ensure our success is by providing our customers consistent quality in a timely fashion and at a fair price.
Stick Industry was established in 2004, with factory located in Haicang district, Xiamen city, South East of China. The company has been in business for over 10 years, beginning as a small plastic mold and die casting mold workshop growing into an industrial leading, multi-plant molder with factory size over 10000 square meters and employees about 150.
Conveniently located in the south of China, our ISO 9001-2000 Certified facility economically services markets throughout the world including USA, Russia, Canada, Mexico, Brazil, Germany, Spain, Italy, Poland etc

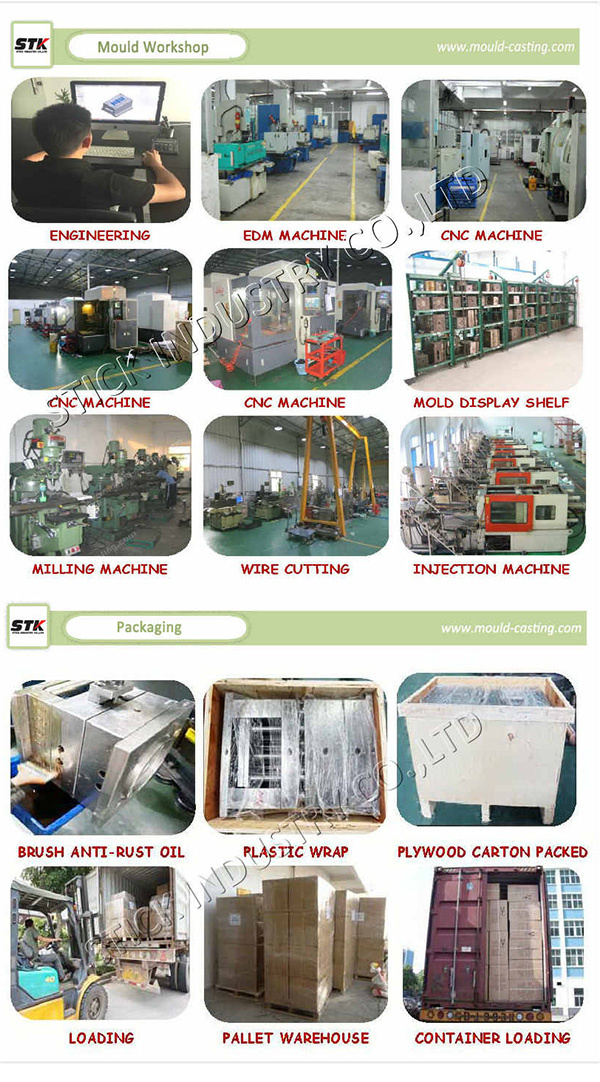

In addition to outstanding growth in our die cast and injection molding department, our secondary machining operations have continued to grow to meet the varied needs of our customers, including: Drilling, tapping, turning, boring, milling, sanding, shot blasting, vibratory finish, and more.
From concept to final production, from mechanical and electronic design to components sourcing, and from prototype manufacturing to mold design, our engineer team can jump in at any stage to complete your valuable project on time.

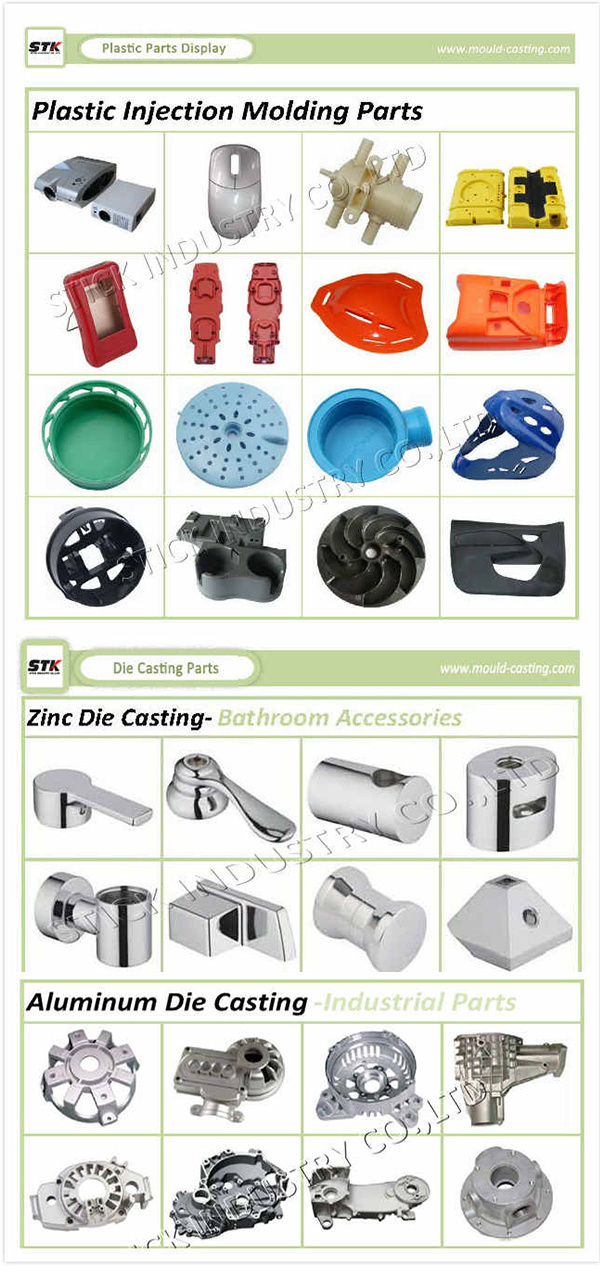

Our service include: Moulds, plastic injection molding, Aluminum/Zinc Die casting, CNC Machining, Sheet Metal Forming, Surface Treatments, Assembly and packaging.
We will pay great attention to your any question or enquiry.
If any questions, please feel free to contact us at any time.
