High Production Efficiency Crocodile Hydraulic Shear for Cutting Metal Pipe
| Price: |
US $ 2100-5600/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C |
| Prod Model: |
Q43 |
| Largest Shear Force(Ton): |
630 |
| Max Press Force(Ton): |
120 |
| Max Blade Opening(mm): |
250 |
| Blade Length(mm): |
600 |
| Motor Power: |
7.5 |
Product Description
High Production Efficiency Crocodile Hydraulic Shear For Cutting Metal Pipe

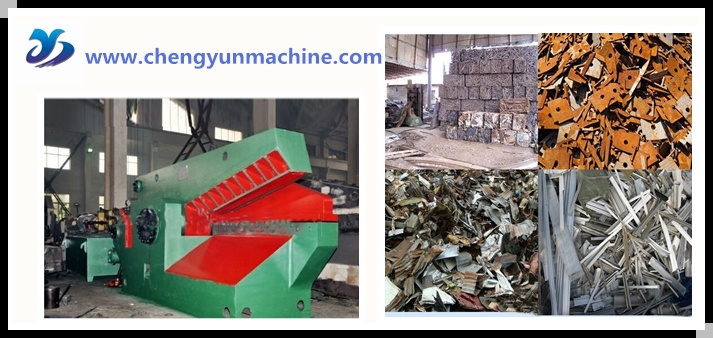

Q43 series alligator type metal shear is suitable to shear various sharps of profiled bar and varieties of metal structure parts at cold condition for metal recovery companies, waste steel works, smelting and casting enterprises.
PRODUCT FEATURES:
- 1.Hydraulic driving,easy operation,easy maintenance.
- 2.Work knife edge length:400mm,600mm,700mm,800mm,1000mm, 1200mm. The shearing force has 10classes from 63 tons to 630 tons. The shear with over 700mm knife edge can be used to shear waste car.
- 3.No requirements of foundation bolts for installation, the diesel may be used for driving at the place without power supplying.
| Alligator Metal Shear |
| Model | Max shear force(ton) | Max press force(ton) | Max blade opening(mm) | Blade Length(mm) | Shearing frequency(time/min) | Material size(mm) | Motor power(kw) |
| Q43-63A | 630 | 120 | 250 | 600 | 6-8 | 30x30 Φ35 | 7.5 |
| Q43-63B | 630 | 120 | 250 | 800 | 6-8 | 30x30 Φ35 | 7.5 |
| Q43-100A | 1000 | 160 | 280 | 600 | 6-8 | 40x40 Φ45 | 7.5 |
| Q43-100B | 1000 | 160 | 280 | 800 | 6-8 | 40x40 Φ45 | 11 |
| Q43-120A | 1200 | 200 | 280 | 600 | 6-8 | 50x50 Φ50 | 15 |
| Q43-120B | 1200 | 200 | 280 | 800 | 6-8 | 50x50 Φ55 | 15 |
| Q43-160 | 1600 | 250 | 320 | 700 | 6-8 | 55x55 Φ60 | 18.5 |
| Q43-200 | 2000 | 300 | 380 | 800 | 6-8 | 70x70 Φ75 | 22 |
| Q43-250 | 2500 | 380 | 480 | 1000 | 6-8 | 80x80 Φ85 | 15x2 |
| Q43-315 | 3150 | 380 | 650 | 1200 | 6-8 | 90x90 Φ95 | 18.5x2 |
| Q43-400A | 4000 | 420 | 750 | 1200 | 7-8 | 100x100 Φ100 | 18.5x2 |
| Q43-400B | 4000 | 420 | 750 | 1500 | 7-8 | 100x100 Φ100 | 22x2x |
| Q43-500 | 5000 | 420 | 850 | 1800 | 4-6 | 110x110 Φ110 | 30x2 |
| Q43-630 | 6300 | 420 | 840 | 1800 | 4-5 | 120x120 Φ130 | 30x2 |
2.Package and Shipping:
Package: Seaworthy package for Metal Baler (Film package,Naked package or Shrink-pack).
1.We fixed our machine in container by steel wire and all of the machine is by plastic film;
2.For small equipment we use wooden package to protect it;
3.We use 40 HQ or 20 GP to load protect ;
4.Delivery time:20-90 days.3.Our serivce:
24 hours online service
Enquiry will be replied in 2 hours
One year guarantee and lifelong maintenance.
Spare parts: supply one set of spare parts for free, tool box, operation book.
Free parts for any breakdown with convincing evidence
Any problem, you can call us directly.
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: No. 201 Yungu Road, Yunting Street, Jiangyin City, Wuxi, Jiangsu, China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 8 years, and be the famous supplier on the domestic market. Oversea market will be the most important strategy plan on 2017
Q4:How can i trust your company?
A:With 8-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Shanghai Pudong airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
