| Price: | US $ 2000-3500/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |

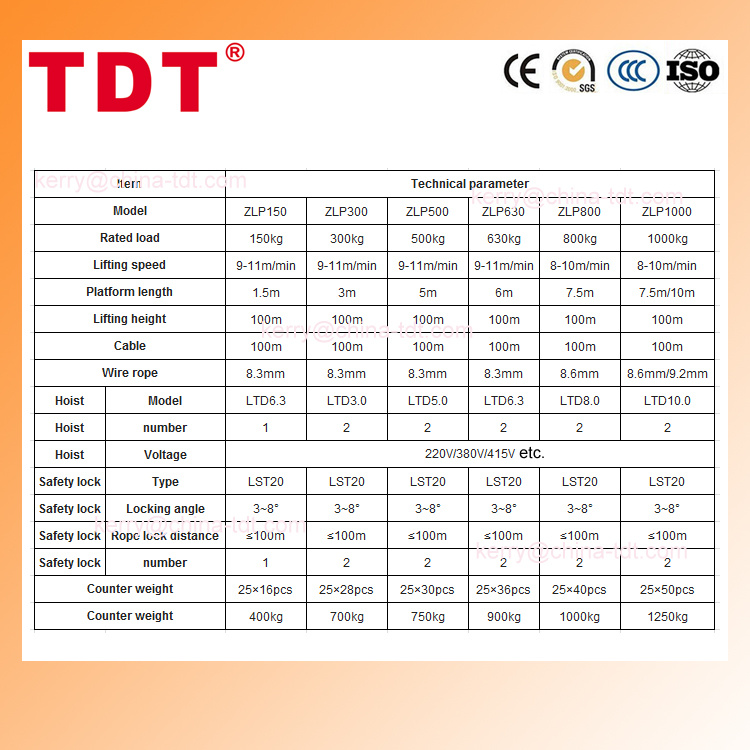

| Prod Model: | ZLP150, ZLP300, ZLP500, ZLP630, ZLP800, ZLP1000 |
|---|---|
| Material: | Steel, Galvanized, Aluminum Alloy |
| Rated Load: | 150kg 300kg 500kg 630kg 800kg 1000kg |
| Type: | Electrical |
| Color: | Silver, Red, Blue, Yellow or According to Your Req |
| Voltage: | 220V/380V/415V/440V, Adjustable According to Your |
| Lifting Height: | 100m or Customized |
| Lifting Speed: | 8m/Min~11m/Min |
| Balance Weight: | 400kg~1250kg |
| Certificate: | Ce, ISO, GB, GOST-R |
| Application: | for High-Rise Buildings and Bridges, etc.. |

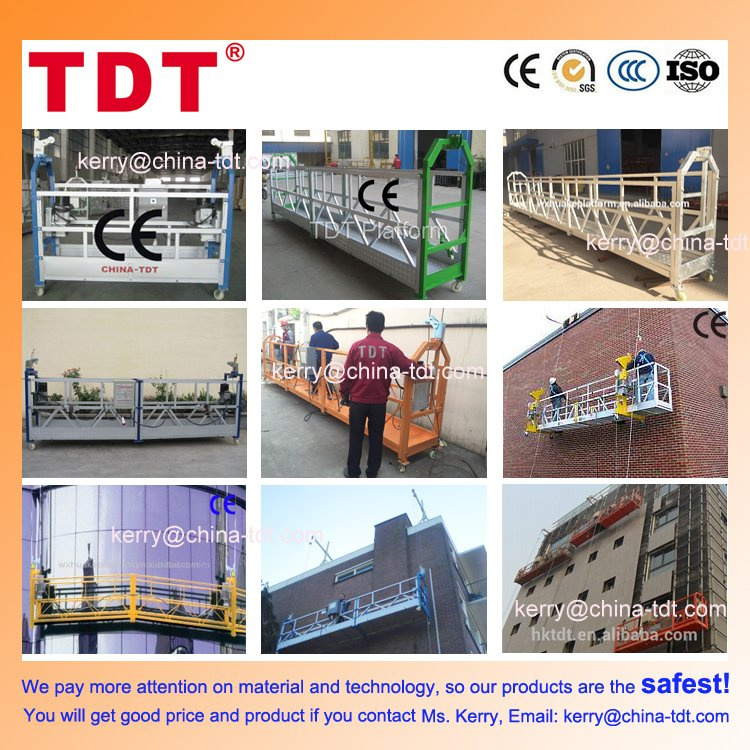

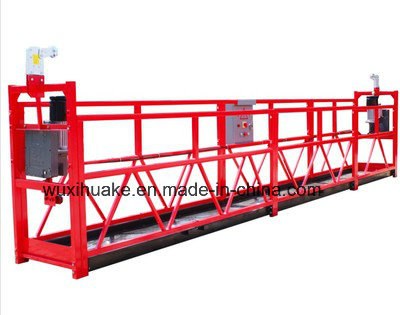

TDT suspended platform provide safe, efficient and reliable vertical transportation for exterior construction, decoration, cleaning and maintenance of high rise building.
Comparing with the traditional scaffold, suspended platform features itself in safety, obviously efficent, more flexible and lowcost.
Our company have wide range specification of suspended platform and most of them can be customized according to your requirements.
1) Specification: common suspended platform and special suspended platform.
2) Rated load: 150kg, 300kg, 500kg, 630kg, 800kg and 1000kg
3) Lifting speed: 8-11m/min
4) Standard Lifting Height: 100m (max lifting height is 300m)
5) Materials: aluminum alloy, steel, hot-dip galvanized steel
6) The length of platform can be adjusted from 1.5m to 10m
7) The working height and voltage can be adjusted with your need
8) With the manual landing system which allows driving down the platform manually while electric power is off.
