| Price: | US $ 1.5-2.216 |
|---|---|
| Min Order: | 1016 |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | Riverside, Danieli, Lindemann etc |
|---|---|
| Application: | Quarry |
| Product Name: | Hammer |
| Color: | Request |
| Usage: | Crushing etc |
| Advantage: | Wear Resistant |
| Size: | Full Types |
| After Services: | Available |
| Sample Order: | Available |
| Drawing: | Original |
| Use: | Ore Mining |

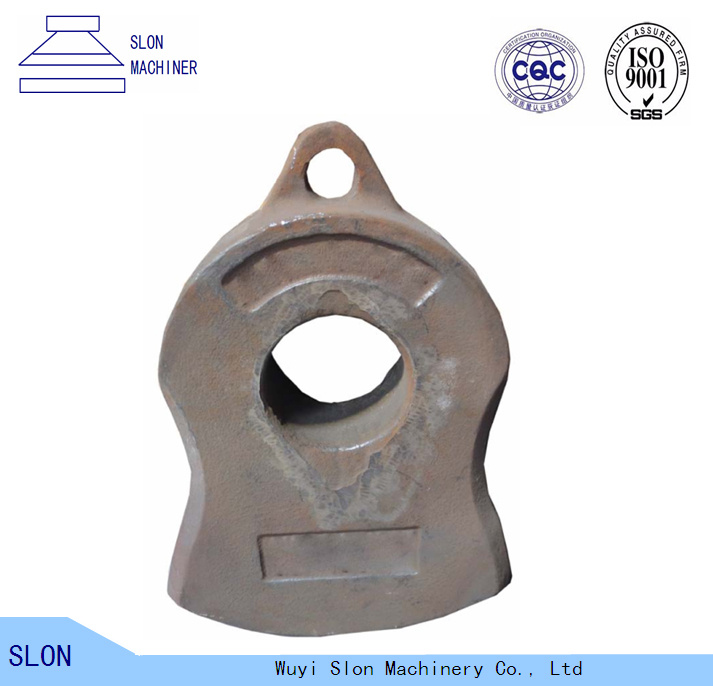

High quality auto shredder parts maize grinding mill hammer
Product Name: Shredder parts/hammer/crusher hammer
Applications: Widely used in mining industry, metallurgical industry, construction industry, chemical industry and silicate industry for crushing hard and medium hard ore and rock, such as iron ore, limestone, copper ore, sandstone and so on.
Product Benefits:Compared with the general market products, our products smooth surface, accurate dimensions , high wear resistance and longer life. Direct sales by the company foundry, cost-effective products.
Main Features:
| Competitive products: | Good quality with reasonable price |
| Material: | High manganese and customised materials |
| Use: | We can supply almost crusher parts |
| Quality | ISO9001 &TS and CE certification |
Material:
Following is our normal material component,we also can customize as your request
High Manganese Casting Material Chemical composition
| Material code | C | Mn | Si | Cr | P | S |
| ZGMn13Cr2 | C:1.0~1.3 | Mn:11~14 | Si:0.3~0.6 | Cr:1.7~2.4 | P:≤0.05 | S:≤0.03 |
| ZGMn18Cr2 | C:1.1~1.4 | Mn:17~20 | Si:0.3~0.6 | Cr:1.7~2.4 | P:≤0.05 | S:≤0.03 |
| ZGMn22Cr2 | C:1.1~1.4 | Mn:20~24 | Si:0.3~0.6 | Cr:1.7~2.4 | P:≤0.05 | S:≤0.03 |

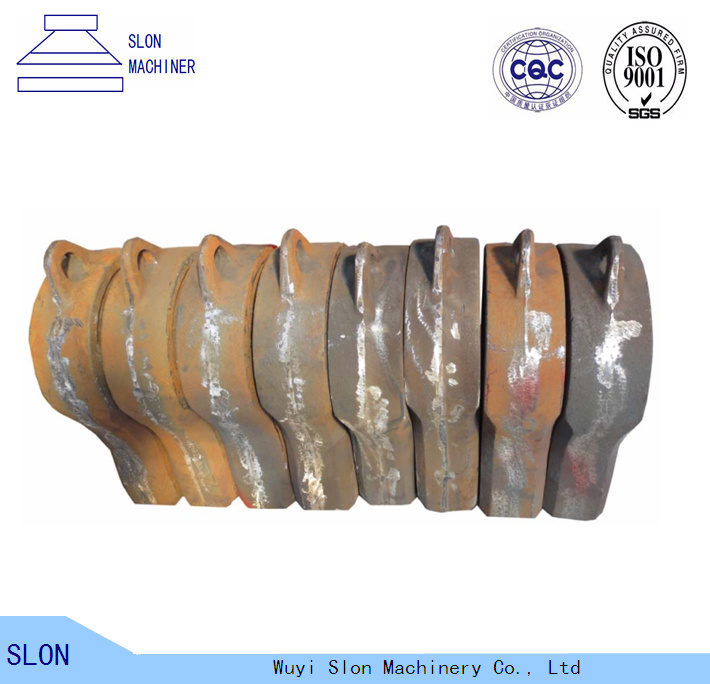

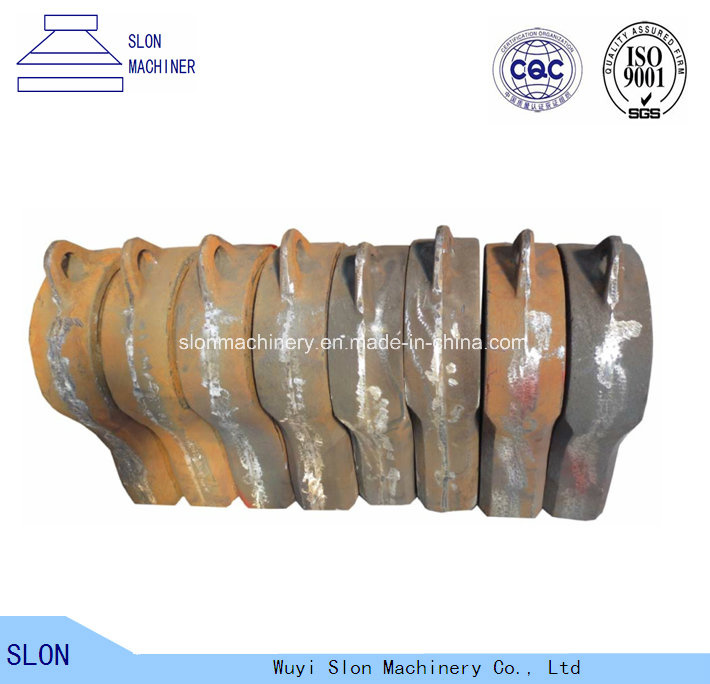

Products Exhibition:
We can provide large batches:
| Cone Crusher Parts | Jaw Crusher Parts | ||||||||
| CH430 | HP100 | GP100S | 2' | CJ208 | C80 | NP1213 | PE250*400 | CM1208i | UJ310 |
| CH440 | HP200 | GP200S | 3' | CJ209 | C96 | NP1313 | PE400*600 | CM1208F | UJ400i |
| CH660 | HP300 | GP300S | 4' | CJ211(J11) | C100 | NP1315 | PE500*750 | CM1211 | UJ440E |
| CH870 | HP400 | GP500S | 4800 4¼ ' | CJ408(JM806) | C106 | NP1415 | PE600*900 | CM1511 | UJ540 |
| CH880(H8800) | HP500 | GP100 | 5100 5½ ' | CJ409(JM907) | C110 | NP1520 | PE750*1060 | UJ640 | |
| CH890 | HP800 | GP200 | 7' | CJ411(JM1108) | C116 | NP1620 | PE870*1060 | ||
| CH895 | HP3 | GP300 | CJ412(JM1208) | C120 | PE1200*1500 | ||||
| CS420(S2800) | HP4 | GP550 | CJ612(JM1211) | C125 | PE1400*1800 | ||||
| CS430(S3800) | HP5 | GP11 | CJ613(JM1312) | C140 | PEX250*750 | ||||
| CS440(S4800) | HP8 | CJ615(JM1511) | C145 | PEX250*1000 | |||||
| CS660(S6800) | MP800 | CJ815(JM1513) | C160 | PEX250*1200 | |||||
| CS820(S8800) | MP1000 | C200 | PEX350*700 | ||||||
| PEX300*1300 | |||||||||

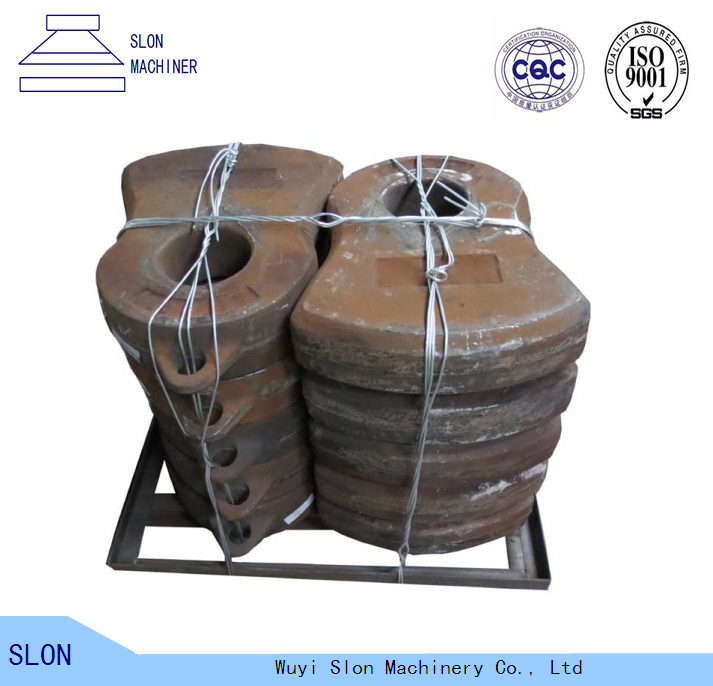

Packaging & Shipping
Packing: Steel pallet, comply with foreign trade standard.
Shipping: By Container.
Company Information:
FAQ

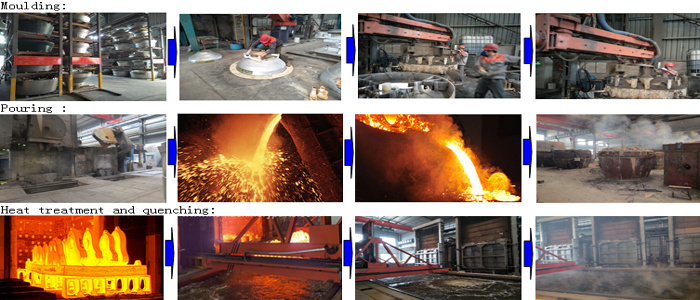

Production process:
1. Q: What kinds of products do you offer?
A: SLon Machinery provided parts are mainly related to your machine. It ranges from the drill rod,excavator buckets and wheel loaders, crusher spare parts, construction machinery parts,brass bush, conveyor and screen spare parts, beneficial equipment spare parts, grinding mill spare parts, machining spare parts and other customized spare parts.
2. Q: What kind of materials are you familiar with?
A: We are familiar with carbon steel, alloy steel, standard wearing plate, high material steel, high chrome steel, casting iron, and bronze.We have begun to research ceramic insert material technology.
3. Q: Can you use foundry machining castings ?
A: Yes, the CNC machine can machine material hardness from HB200 to HRC62.The maximum
machining length is 8m and maximum width is 4m.
4. Q: What information do we need to provide to you in order to confirm our parts order?
A: We work with technical drawings for any non-standard products. If the order is for standard parts,you only have to provide us with the part number so we may define the parts of the order.
5. Q: Would you like to accept factory inspection?
A: We are greatly welcome to our factory for your inspection
6. Q: Why you have to choose us from multiple vendors?
A: We have an increasing presence in the global market for more than 15 years-Reputation.
7. Q: How do you judge sufficient components for our parts?
A: As long as the material is chosen, we shall strictly manufacture the parts according to standard.
8. Q: Except for your products, do you offer some other services or new business opportunities?
A: Yes, we provide lots of service to you as you can see on our service. Slon Machinery has lot of new ideas for working with you and keeping your business moving forward.
