High Quality Best Pri⪞ E ⪞ Rimped Wire Mesh/Sieve S⪞ Reen Mesh/Home Use Mesh

Prod Model:	1.5M*2M
Wire Diameter Range:	0.5-14mm
Open Size:	1-300mm
Colour:	Black and Red and Primary Colours
Application:	Stone Screen Mesh
Hole Shape:	Square
Weave Method:	Flat-Topped Curved
Feature:	Easily Assembled
Wire Diameter:	6.0mm
Color:	Black
Packing:	Pallet
Certification:	CE
Material:	High Carbon Steel
Weave Technique:	Double Crimped

Product Description


             high quality best price crimped wire mesh/sieve screen mesh/home use mesh

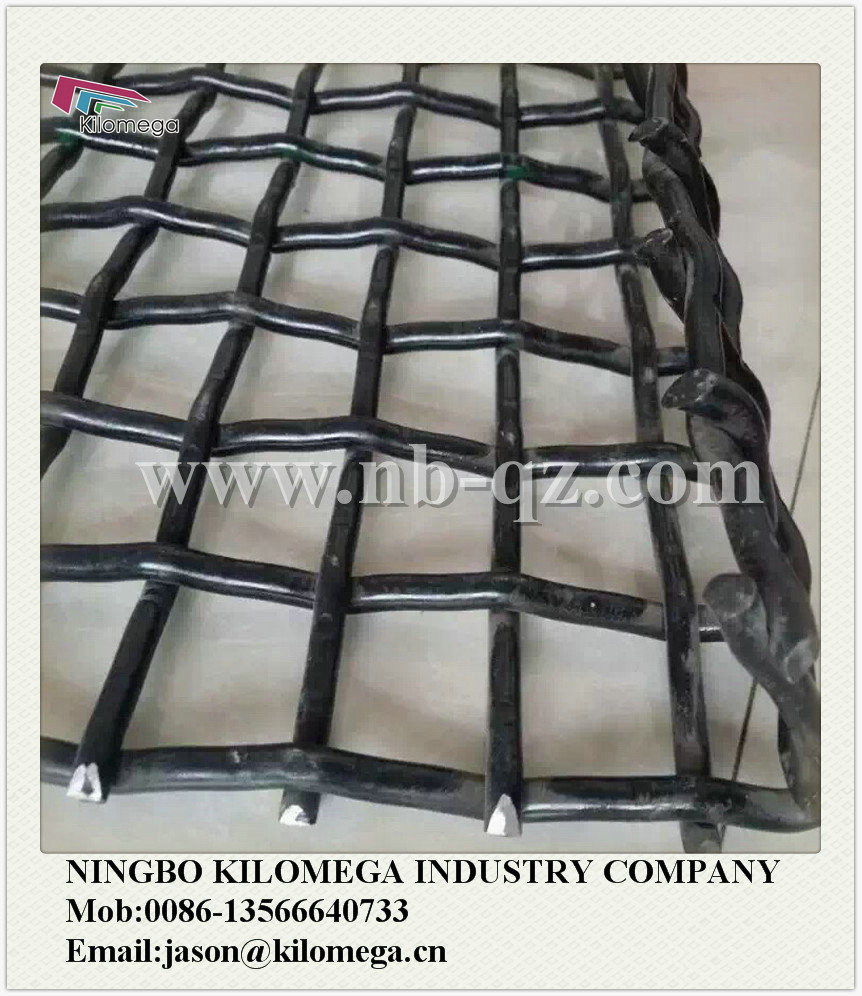

Crimped wire mesh also called square wire mesh is cloth made from wire strands.The wires that make up wire mesh run parallel to the width of the roll (cross wires) and parallel to the length (line wires).The cross and line wires are interwoven.That is, the wires cross over and under each other.Wire Mesh can be woven in a number of different styles depending on the material type, wire diameter, and opening size.Crimped wire mesh is available in rolls, sheets or panels, and cut-to-size.
Screen mesh is widely used in industry, agruculture, crusher, building, house fencing and so on.

1.Material:
High carbon steel wire, low carbon steel wire, galvanized wire, stainless steel wire and other metal wires.


2.Feature:
It has fine features of neat & precise, sturdy structure, durable& strongly rust-resistant and fine anti-corrosiveness.


3.Packaging:
Wrapped with moister-proof paper, Then covered with Hessian cloth



4.Application:
Screening in mine, coal factory, construction and other industries.Used as window
Screening, safety guards in machinery enclosures, also used in filtering liquid and gas, sieving grain.




5.Specification:

Item	Wire diameter Mm	Open size Mm	Width M	Length M	Weight Kg
1	2	3	1.5	2	32
2	3	5	1.5	2	42.6
3	4	8	1.5	2	51.13
4	4.5	12	1.5	2	46.77
5	5	16	1.5	2	45.52
6	5.5	18	1.5	2	49.37
7	6	20	1.5	2	52.7
8	6	22	1.5	2	48.96
9	6.5	24	1.5	2	52.87
10	6.5	27	1.5	2	48.12
11	7	30	1.5	2	50.63
12	8	50	1.5	2	42.29
13	12	75	1.5	2	64



No.	Grade	Chemical Composition			Wire diameter
		C	Si	Mn	Mm
1	45	0.42-0.50	0.17-0.37	0.50-0.80	2.0-6.0
2	50	0.47-0.55	0.17-0.37	0.50-0.80
3	55	0.52-0.60	0.17-0.37	0.50-0.80
4	60	0.57-0.65	0.17-0.37	0.50-0.80
5	65	0.62-0.70	0.17-0.37	0.50-0.80
6	70	0.67-0.75	0.17-0.37	0.50-0.80
7	65Mn	0.62-0.70	0.17-0.37	0.90-1.20	2.0-14.0
