| Prod Model: |
Crusher Knife |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Used for Jaw Crusher |
| Color: |
Customized |
| Material: |
Bronze/Brass |
| Casting Method: |
Sand Casting |
| Casting Form Material: |
Sand |
| Casting Metal: |
Cast Steel |
| Casting Form Usage Count: |
Permanent |
Product Description

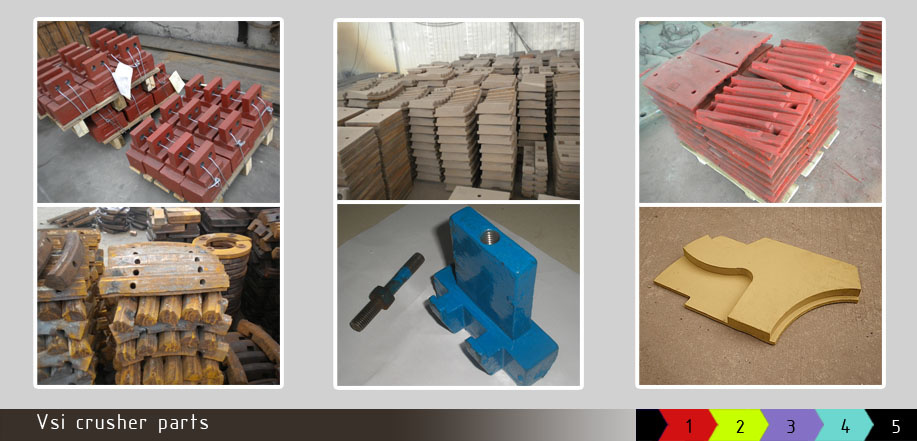

High Quality Crusher Wear Knife1. Range of crusher spare parts:
1.1Jaw crusher parts:
Jaw plate(jaw liner), toggle plate, up guard plate, down guard plate, set adjustment, end cover, block, moving jaw, frame, Swing Jaw liner
1.2 Impact crusher parts:
Blow bar(flat hammer), adjustment bar, impact plate, liner plate, frame(impact rack), cover, bolts, nuts, washer, etc.
1.3 Hammer crusher parts
Hammer head, liner plate, bolt, nuts, washer
1.4 Cone crusher parts:
Concave, mantle, eccentric shaft etc.
1.5 Vibrating screen parts
Roller, bolts, nuts, washer etc.
| Model | Feed Opening Size | Max Feed Size | Capacity | Motor Power | Adjustment Range of Discharge Opening(mm) | Eccentric Shaft Speed | Weight (t) |
| (mm) | (mm) | (m³/h) | (kw) | (r/min) |
|
| PEX100× 600 | 100× 600 | 80 | 2-8 | 7.5 | 7-21 | 330 | 1 |
| PEX150× 750 | 150× 750 | 120 | 5-16 | 15 | 18-48 | 320 | 3.5 |
| PEX250× 750 | 250× 750 | 210 | 8-22 | 22 | 25-60 | 330 | 4.9 |
| PEX250× 1000 | 250× 1000 | 210 | 10-32 | 30 | 25-60 | 330 | 6.5 |
| PEX250× 1200 | 250× 1200 | 210 | 13-42 | 37 | 25-60 | 330 | 7.7 |
| PEX350× 700 | 350× 700 | 300 | 16-35 | 30 | 30-80 | 300 | 6.5 |
| PEX300× 1300 | 300× 1300 | 250 | 15-55 | 75 | 30-80 | 300 | 11 |
| PE150× 250 | 150× 250 | 125 | 0.6-3 | 5.5 | 10-40 | 300 | 1 |
| PE250× 400 | 250× 400 | 210 | 3-13 | 15 | 20-60 | 300 | 2.8 |
| PE400× 600 | 400× 600 | 340 | 10-34 | 30 | 40-100 | 275 | 6.5 |
| PE500× 750 | 500× 750 | 425 | 20-52 | 55 | 50-100 | 275 | 10.5 |
| PE600× 900 | 600× 900 | 500 | 30-75 | 55 | 65-160 | 250 | 15.5 |
| PE750× 1060 | 750× 1060 | 630 | 72-130 | 110 | 80-160 | 250 | 28 |
| PE870× 1060 | 870× 1060 | 670 | 160-210 | 110 | 200-260 | 250 | 30.5 |
| PE900× 1200 | 900× 1200 | 750 | 90-190 | 132-160 | 95-180 | 200 | 50 |
| PE1000× 1200 | 1000× 1200 | 850 | 197-214 | 132-160 | 230-265 | 200 | 51 |
| PE1200× 1500 | 1200× 1500 | 950 | 188-500 | 160-250 | 150-350 | 180 | 100.9 |
| PE1400×1800 | 1400×1800 | 1100 | 288-480 | 250-315 | 500-1100 | 180 | 120 |
DENP INDUSTRIAL established in 2010, Focus on supply best quality Chinese stone crusher and crusher wear parts in competitive price. Through years effort by all staff, our products sold to 23 countries and area all around the world, and got good fame from our customers. Now our annual turnover have exceeded USD 10, 000, 000.
Our fist products have Jaw crusher and Jaw crusher spare parts( jaw plate, side plate, toggle plate, upper shim, bolt and nuts, top head and sleeve etc. ), Impact crusher and Impact crusher spare parts(blow bar, impact plate, side plate, rotor, lining board, motor fully, etc), Cone crusher and Cone crusher spare parts(concave, mantle, bush, main shaft, bronze dish, etc), Sand making crusher and spare parts, Vibrating screen, Vibrating feeder, Belt Conveyor, Sand washer, Mobile Crusher Plant, Mixer plant, Asphant Plant;
We cooperate with Lonking, LiuGong, XCMG, Sino Truk, Hangzhou Forklift, Heli Forklift etc in the field of Construction Vehicle. Also we cooperate with GD group, LDK Group and Nexpower for Solar power station.
Wish our quality products and best service can help our customers get more business, and make customers satisfied, to achieve common development.
