| Prod Model: |
T2 series |
| Products: |
Nq Hq Pq Umx Diamond Core Bits |
| Use: |
Exploration Core Drilling |
| Drilling Depth: |
Longer Life Drilling up to 800 Met |
| Series: |
Wireline Diamond Core Bits |
| Model: |
Impregnated Diamond Core Bits |
| Drilling: |
Exploration Core Drilling |
| Drills: |
Wireline Core Drilling |
| Mining: |
Australia Mining |
| Exploration: |
Australia Exploration |
| Model No: |
Mining Exploration Core Drilling |
Product Description
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
We have rich experience in this field of DTH hammers and bits for 60 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.
Product Description

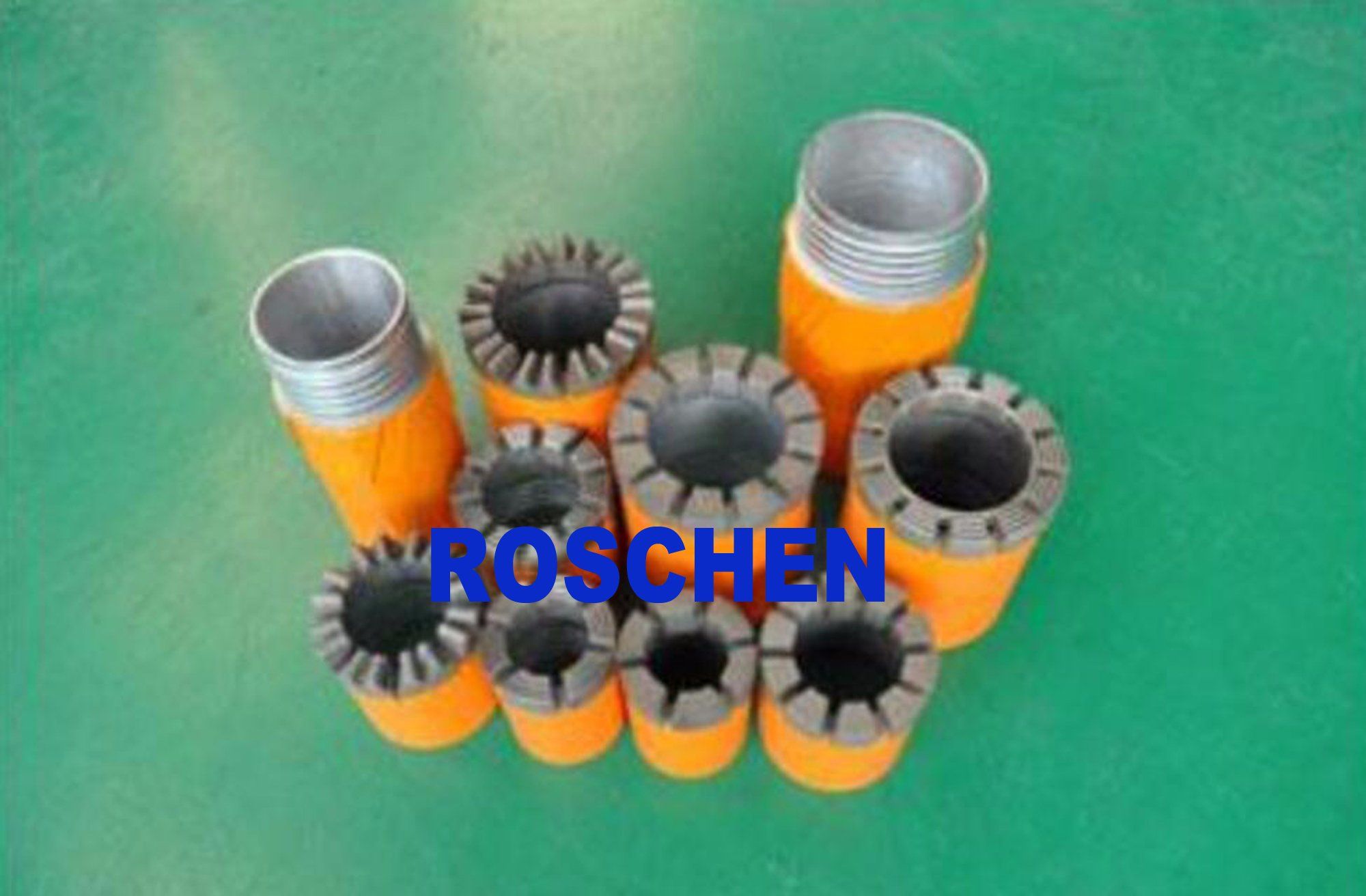

Impregnated Diamond Core Bit
Impregnated Diamond Core Bit is made with high quality synthetic diamonds, mixed evenly through a metal alloy matrix. It can drill various formations from the softest to hardest rocks.
Sizes Available:
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76,T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
and all other standard CDDA, DCAMA, Crealius, and ISO sizes .
Features:
Significantly outperforms the successful Series range in drilling speed and bit life.
Protects the diamond from oxidation and surface degradation.
Inhibits the premature "pull-out" of the diamond.
Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.
BQ NQ HQ PQ Diamond Impregnated Core Bit
| Wireline diamond core bits specifications |
| SIZE | CORE Ø | HOLE Ø |
| AQTK | 35.5 mm (1-3/8 in) | 48 mm (1-7/8 in) |
| BQ | 36.4 mm (1-7/16 in) | 60 mm (2-3/8 in) |
| BQTK | 40.7 mm (1-5/8 in) | 60 mm (2-3/8 in) |
| NQ | 47.6 mm (1-7/8 in) | 75.7 mm (3 in) |
| NQTK (NQ2") | 50.6 mm (2 in) | 75.7 mm (3 in) |
| NQ3 | 45 mm (1-3/8 in) | 75.7 mm (3 in) |
| HQ | 63.5 mm (2-1/2 in) | 96 mm (3-3/8 in) |
| HQ3 | 61.1 mm (2-3/8 in) | 96 mm (3-3/8 in) |
| PQ3 | 85 mm (3-3/8 in) | 122.6 mm (4-7/8 in) |
| PQ3 | 83 mm (3-1/4 in) | 122.6 mm (4-7/8 in) |
| Wireline diamond core bits, metricl diamond impregnated drill bits specifications |
| "Q" series: | AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT |
| A-Gauge Core Bits: | AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48 |
| B-Gauge Core Bits: | BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW |
| N-Gauge Core Bits: | NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW, |
| H-Gauge Core Bits: | HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT |
| P-Gauge Core Bits: | PQ, PQ3, PWF-Long, PWF-Short |
| S-Gauge Core Bits: | SWF-Long, SWF-Short |
| U-Gauge Core Bits: | UWF-Long, UWF-Short |
| Z-Gauge Core Bits: | ZWF-Long, ZWF-Short |
| T Series: | T36, T46, T56, T66, T76, T86, T101 |
| TT Series: | TT46, TT56, TT66, TT76, TT86, TT101 |
| T2 Series: | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
| TB Series Metric Core Bits: | TB36, TB46, TB56, TB66, TB76, TB86, TB101 |
| T6 Series Metric Core Bits: | T6-76, T6-86, T6-101, T6-116, T6-131, T6-146 |
| T6S Series Metric Core Bits: | T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146 |
| B Series(IS03552-1)Metric Core Bits: | B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| All other standard: | CDDA, DCDMA, Crealius, and ISO sizes. |
FAQ
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.
Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
