| Prod Model: |
CNC-FB |
| Delivery Time: |
7-10 Days |
| OEM&ODM: |
Yes |
| Customized Made: |
Available |
| Manufacturing: |
Sintered |
| Material: |
Diamond and Metal |
| Effective Length(mm): |
20~60 |
| Diameter(mm): |
20-24 |
| Advantage: |
Rapid Cooling and Easy Rust Removal |
| Connection: |
G1/2" |
Product Description
Diameter X Segment
(mm) x Segment number | Work length
(mm) | Total length
(mm) | Diamond grit
| Type of technical
|
| 20 x 4 | 42 | 80 | 50/60 | welding |
| 20 x 5 | 42 | 80 | 50/60 | welding |
| 22 x 5 | 42 | 80 | 50/60 | welding |
| 24 x 5 | 42 | 80 | 50/60 | welding |

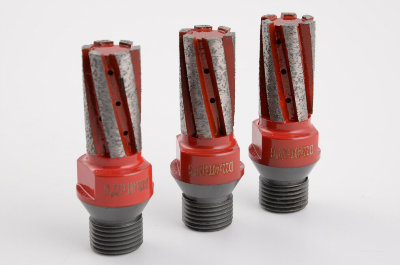

This kind of diamond router is metal bond,Mounted on CNC or any tool machinery, It features a clean aggressive cut on natural or engineered stone.
Suitable for milling cut the stone plate,glass plate or the ceramic plate,the thickness of the ptate from 1.0mm to 30mm can be processed by our diamond router.

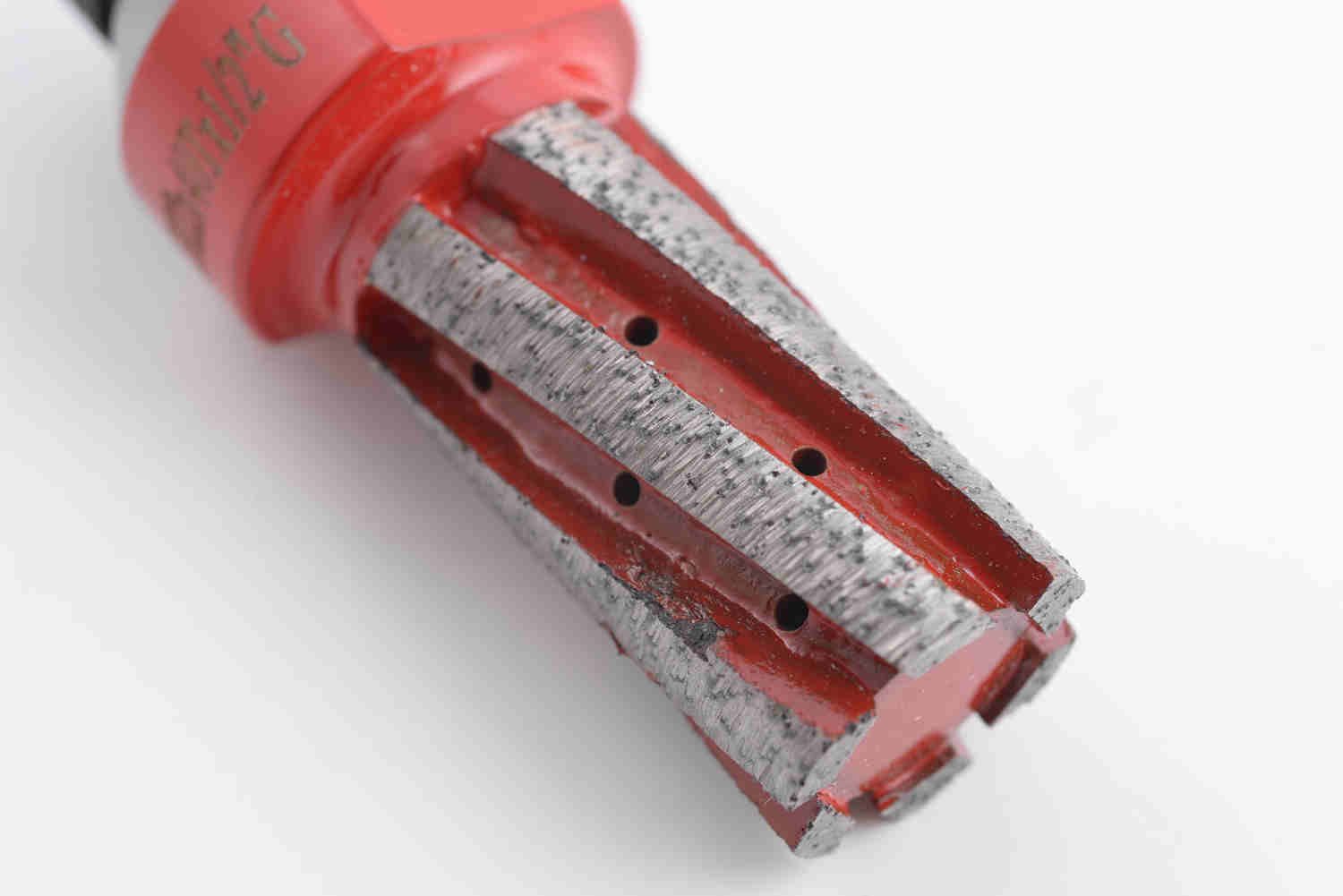

The diamond router have water cooling hole at the center,Enough water cooling can increase the life time.
Diamond segment of the router: 3 segment, 4 segment, 5 segment, 6 segment.
Type of techinical:Metal bond segment on welding.
Type of water supply:Water from the inner hole.
The diamond grit of the diamond router which we choose are all the top quality diamond grit,the diamond grit have top shock resistance performance and top grinding performance.
The diamond segment which welding on the diamond router are produced by the newest Vacuum-Hot pressing sintering machine,as the temperature of the hot pressing sintering is 800ºC~1000ºC, The high vacuum can protect the diamond grit without injury,the diamond grit will be no oxidation in the hot pressing sintering.
So this kind of diamond router have very good sharpness and long life time.
Good sharpness and small chipping of the cutting adge are our biggest advantage!
Try it,and you will love it!
Customized size available on request.
Application:
Be used for CNC machine, automatic processiong, high efficient, exact figure.
Our Feature:Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Our advantage:1. Manufacturer with more than 18 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
Payment:T/T, Western Union, L/C, Cash
Delivery time:For samples, shipped within 3 days after receiving the deposit,
For regular order, around 3-7 days, depends on the quantity of your order.
Packaging:The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.
Shipment:<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs
Xiamen taiying diamond products Co., Ltd.(xtdp) is a joint venture manufactory, located in the scenic coastal city, xiamen.Xtdp specializes in the research, development, production and sale of diamond tools.

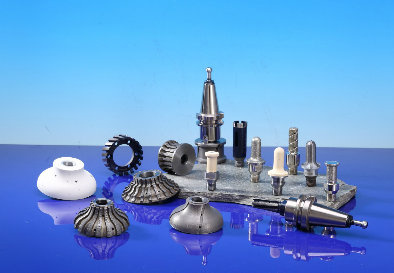

Since 1998, we have brought in the advanced processing technology and equipments from overseas.Moreover, we also have many advanced engineers who are accomplished in diamond tools manufacture, powder metallurgy and heat treatment, with the ability of developing international standard diamond products independently.And we have passed the standard attestation of ISO9001:2000 quality system in 2004.Our products include the tools of sawing, profiling, milling, polishing, drilling, etc, especially irregular-shaped tools.The process range covers the industries of stone, architecture, machinery, and electron, etc.More than 70 percent of our products are exported to Europe, America and southeast Asia, having won very good reputation from our customers.
