| Prod Model: |
SY-MDB-1000(Masonary Drill Bit) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Drilling |
| Manufacturing Arts: |
Welding Masonary Drill Bit |
| Kind: |
Masonary Drill Bit |
| Diameter(mm): |
25 - 254 |
| Inch: |
1" - 10" |
| Product Name: |
Masonary Drill Bit |
| Working Length(mm): |
50 - 450 |
| Connection End: |
M14 M16 G1/2" 5/8"-11 Unc1 1/4"-7 |
| Drill Type: |
Masonary Drill Bit |
| Advantage: |
Quality and Price |
Product Description

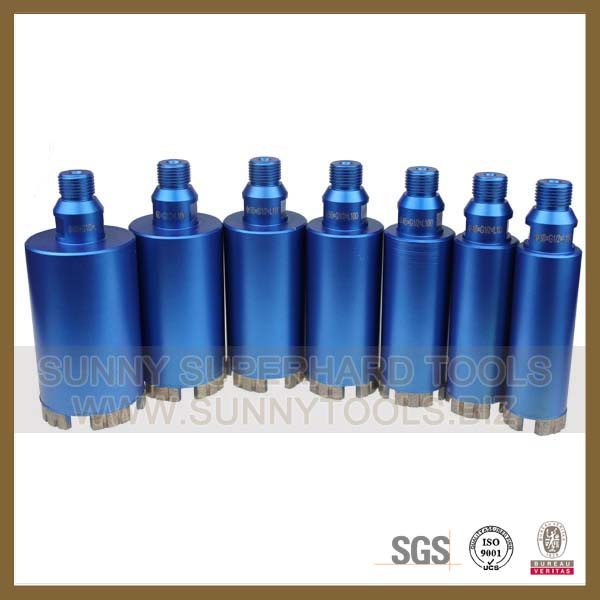

Diamond Masonary Drill Bit
Features:
1. Different connection end for different drilling machine
2. Suitable for drilling holes on various hard materials, such as glass, marble, ceramic, granite, etc.
Advantages:
1. High Quality
2. Competitive Price
3. Premium After-sale Service
Application:
1. Sunny diamond core drill bits are specially designed for drilling concrete, reinforced concrete and brick wall with fast drilling speed and long lifespan.
2. Threaded extension tubing greatly increases the capabilities of deep drilling.
[2013080204]
Outer Diameter |
Inch |
Ring Segment |
Working Length |
Connection |
mm |
|
mm |
mm |
|
25 |
1 " |
|
360 |
450 |
|
30 |
1.25 " |
|
360 |
450 |
|
32 |
1.5 " |
|
360 |
450 |
|
38.1 |
1.75 " |
24*2.5*8.0 |
360 |
450 |
M14 |
44.5 |
2 " |
24*2.5*8.0 |
360 |
450 |
M16 |
50.8 |
2.25 " |
24*2.5*8.0 |
360 |
450 |
G1/2 " |
57.2 |
2.5 " |
24*2.5*8.0 |
360 |
450 |
5/8 " -11 |
63.5 |
3 " |
24*2.5*8.0 |
360 |
450 |
UNC1 1/4 " -7 |
76.2 |
3.5 " |
24*2.5*8.0 |
360 |
450 |
|
101.6 |
4 " |
24*2.5*8.0 |
360 |
450 |
|
127 |
5 " |
24*2.5*8.0 |
360 |
450 |
|
152.4 |
6 " |
24*2.5*8.0 |
360 |
450 |
|
177.8 |
7 " |
24*3.0*8.0 |
360 |
450 |
|
203.2 |
8 " |
24*3.0*8.0 |
360 |
450 |
|
228.6 |
9 " |
24*4.5*8.0 |
360 |
450 |
|
254 |
10 " |
24*4.5*8.0 |
360 |
450 |
