1) high quality, smooth cutting without chip, easy welding, save electric, reduce the stone waste
2) universal wet cutting for different kinds of stone (granite marble sandstone etc...)
3) soft to hard bonds designed for cutting hard to soft materials
4) sandwich or grooved segment with any shapes for single or multi-blade as required.
5) reasonably priced with excellent service and consistent quality.
6) guarantee fast smooth cutting on each stone.
**Attn: Different market need different quality and sizes. We can make all kinds of sizes and quality or price according your requirement. **
Supplementary Explanation:
The segments are attached to the core by brazing with silver solder and fixed on circular blades, gang saws and circular single/multi-blade cutters;

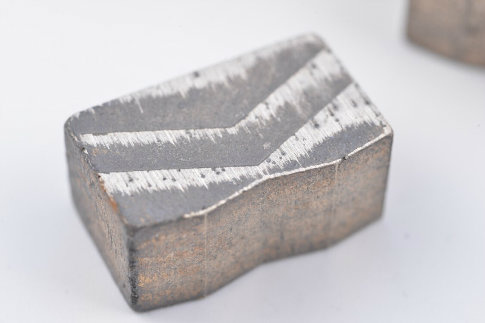

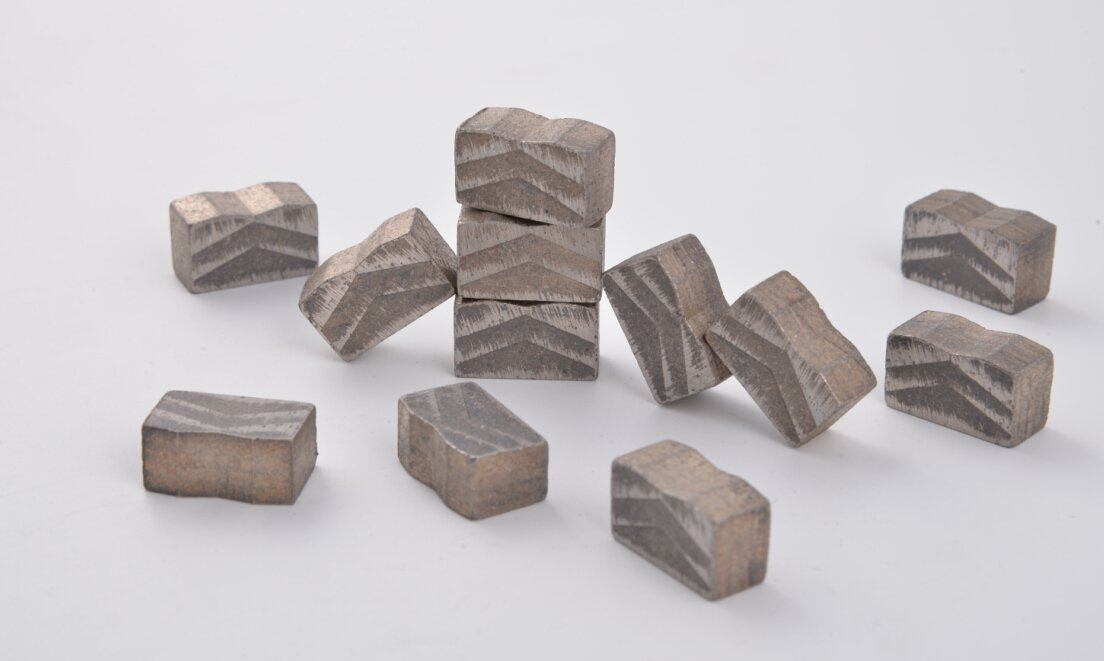

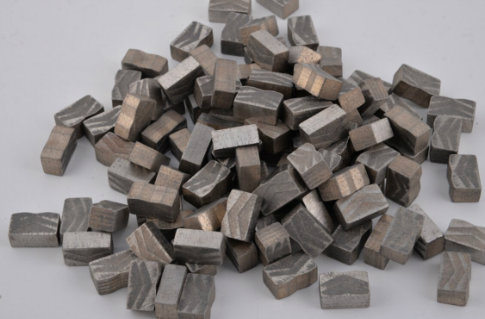

High-quality diamond segment made from high-grade diamond by special and advanced techniques;
Segment for diameter 100mm to 3500mm blade;
Specifications supplied by customers are available;
High cutting efficiency and long life;
Segment can be produced for cutting granite, marble, sandstone, limestone, andesine, asphalt, tile, concrete and others. Our diamond segments are always manufactured in sandwich design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.
Our service:
√ Factory == √ Own exporting license == √ Quality control == √ Competitive price == √ Own technology == √ Oem

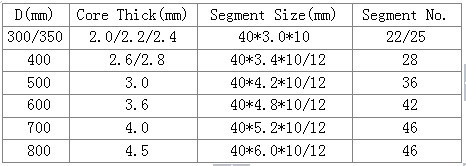

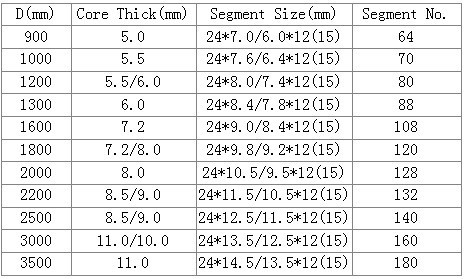

| Diameter | Inch | Core Thickness | Segment Size | Segment No. |
| mm | | mm | mm | pcs |
| φ300 | 12'' | 2.2/2.0 | 40*3.0/2.8*8(10)(12)(15) | 21 |
| φ350 | 14'' | 2.2/2.4 | 40*3.0/3.2*8(10)(12)(15) | 24 |
| φ400 | 16'' | 2.6/2.8 | 40*3.4/3.6/3.8*8(10)(12)(15) | 28 |
| φ450 | 18'' | 2.8/3.0 | 40*4.0/4.2*8(10)(12)(15) | 32 |
| φ500 | 20'' | 2.8/3.0 | 40*4.0/4.2*8(10)(12)(15) | 36 |
| φ450 | 18'' | 2.8/3.0 | 40*4.0/4.2*8(10)(12)(15) | 32 |
| φ500 | 20'' | 2.8/3.0 | 40*4.0/4.2*8(10)(12)(15) | 36 |
| φ600 | 24'' | 3.6 | 40*4.6*8(10)(12)(15) | 42 |
| φ700 | 28'' | 4.0 | 40*5.2*8(10)(12)(15) | 42 |
| φ800 | 32'' | 4.5 | 40*6.0*8(10)(12)(15) | 46/57 |
| φ900 | 36'' | 5.0 | 24*6.6/6.0*10(12)(15)(20) | 64 |
| φ1000 | 40'' | 5.5 | 24*7.0/6.4*10(12)(15)(20) | 70 |
| φ1200 | 48'' | 6.0 | 24*8.0/7.4*10(12)(15)(20) | 80 |
| φ1300 | 50'' | 6.5 | 24*8.4/7.8*10(12)(15)(20) | 88 |
| φ1600 | 64'' | 7.2 | 24*9.0/8.4*10(12)(15)(20) | 108 |
| φ1800 | 72'' | 8.0 | 24*9.8/9.2*10(12)(15)(20) | 120 |
| φ2000 | 80'' | 8.0 | 24*10.5/9.5*10(12)(15)(20) | 128 |
| φ2200 | 88'' | 9.0 | 24*11.5/10.5*(15)(20) | 132 |
| φ2500 | 110'' | 9.0 | 24*12.5/11.5*(15)(20) | 140 |
| φ3000 | 120'' | 10.0 | 24*13.5/12.5*(15)(20) | 160 |
| φ3500 | 140'' | 10.0 | 24*14.5/13.5*(15)(20) | 180
|
More sizes for your reference:
customized specification is available.
