| Prod Model: |
WSP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Diamond Wire: |
Adopt Diepa Steel |
| Manufacturing Experience: |
18 Years |
| Fixing Method: |
Spring, Plastic, Rubber |
| Craft: |
Sintered Diamond Wire |
| Certificate: |
SGS, ISO9001:2008 |
| Customized: |
Customized |
| Graininess: |
37/40 Beads/Meter |
Product Description
Product Description
There is no doubt that the appearance of diamond wires quarrying technique is a revolution for stone mining. This technique has following advantages in mining: Improve the quarrying efficiency, work safely and protect environment well. High performance brings good sized blocks without inner breaks, and can exploit large dimension blocks with low quarry cost.
Advantages of our vulcanised rubber wire:1.Provide different support designs and sizes beads according to the stone types.
2.Independently developed the special rubber and vulcanized technique to ensure that the diamond wires can work in all sorts of bad environment.
3.The rubber and cable sticking together tightly makes good bonding, and this can be more strikes during the work.
4.The vulcanised rubber easily withstands increases in temperature caused by badly controlled water spraying, which often happens in a quarry.
5.Strong flexibility can reduce the cut-in-one-side problem, and protect cable well when it used for small curvature radius(beginning and end of quarry cuts).

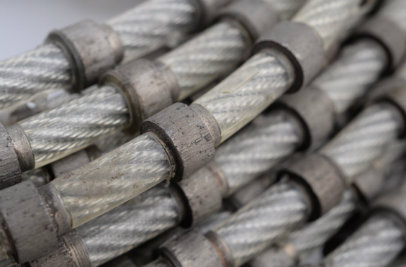

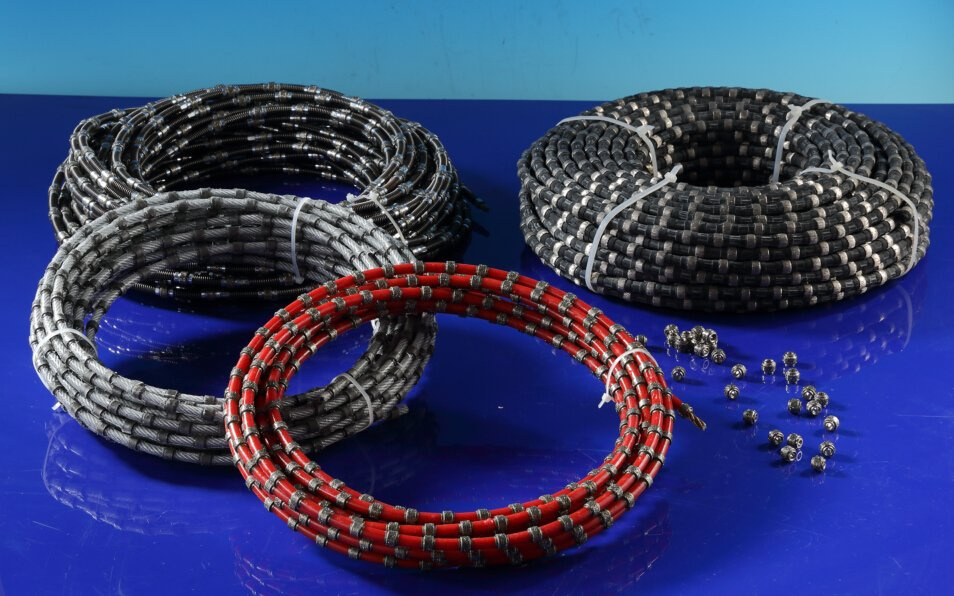

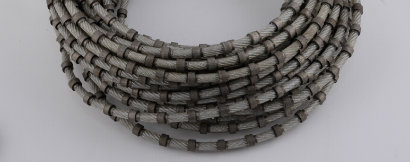

Diamond wire saw:
Suitable for quarry concrete cutting and huge irregular cutting, special-shape process.
Feature:
More economical, higher efficiency of cutting,
saving energy and more environmental protection than the traditional processing.
| Item No. | Spec | Bead quantity(bead/meter) | Fastening | Application |
| WSP-08033-M | φ8 | 33 | plastic | Marble processing |
| WSP-08037-G | 37 | plastic | Granite processing |
| WSP-08533-M | φ8.5 | 33 | plastic | Marble processing |
| WSP-08537-G | 37 | plastic | Granite processing |
| WSP-09033-M | φ9 | 33 | plastic | Marble processing |
| WSP-09037-G | 37 | plastic | Granite processing |
| WSP-10530-M | φ10.5 | 30 | plastic | Marble block profiling |
| WSP-10537-G | 37 | plastic | Granite block profiling |
| WSR-10540-M | 40 | rubber | Marble mining |
| (WSP-10540-M) | (plastic) |
| WSR-10540-G | 40 | rubber | Granite mining |
| (WSP-10540-G) | (plastic) |
| WSR-10540-RC | 40 | rubber | Reinforecement concrete cutting |
| (WSP-10540-RC) | (plastic) |
| WSR-11040-M | φ11 | 40 | rubberr | Marble mining |
| ( WSP-11040-M ) | (plastic) |
| WSR-11040-G | 40 | rubber | Granite mining |
| (WSP-11040-G) | (plastic) |
| WSRS-11040-RC | 40 | rubber+spring | Reinforecement concrete cutting |
| WSR-11540-M | φ11.5 | 40 | rubber | Marble mining |
| ( WSP-11540-M) | (plastic) |
| WSRS-11528-G | 28 | spring | Marble mining |
| WSR-11540-G | 40 | rubber | Granite mining |
| (WSP-11540-G) | (plastic) |
| WSIR-11540-G | 40 | Imported rubber | Granite mining |
| WSRS-11540-RC | 40 | rubber+spring | Reinforecement concrete cutting |
Xiamen taiying diamond products Co., Ltd.(xtdp) is a joint venture manufactory, located in the scenic coastal city, xiamen.Xtdp specializes in the research, development, production and sale of diamond tools.
Since 1998, we have brought in the advanced processing technology and equipments from overseas.Moreover, we also have many advanced engineers who are accomplished in diamond tools manufacture, powder metallurgy and heat treatment, with the ability of developing international standard diamond products independently.And we have passed the standard attestation of ISO9001:2000 quality system in 2004.Our products include the tools of sawing, profiling, milling, polishing, drilling, etc, especially irregular-shaped tools.The process range covers the industries of stone, architecture, machinery, and electron, etc.More than 70 percent of our products are exported to Europe, America and southeast Asia, having won very good reputation from our customers.
