| Prod Model: |
diamond core drill bits |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kind: |
Diamond Drill |
| Usage: |
Drilling, Engineering Material |
| Shape: |
Cylindrical |
| Manufacturing Arts: |
Brazed |
| Brand: |
Sang |
| Saw Blade External Diameter: |
6~600mm |
| Specification: |
D6mm~D600mm |
| Customized: |
Upon Your Request |
| Quality: |
a |
Product Description
Speciication from 6mm to 20mm, crown type and tip type to choose.
Diamond Drill Bit
| Diamond Drill Bit |
| Outer Diameter | Working Length | Segment height | Thread |
| (inch) | (mm) | (inch) | (mm) | (inch) | (mm) | G1/2", 5/8"-11 |
| 0.24 | 6 | 1.97 | 50 | 0.36 | 10 |
| 0.31 | 8 | 2.36 | 60 |
| 0.39 | 10 |
| 0.47 | 12 |
| 0.55 | 14 |
| 1.63 | 16 |
| 0.71 | 18 |
| 0.79 | 20 |
Specification from 25mm to 75mm, crown type and segment type to choose
| Diamond Core Drill |
| Outer Diameter | Working length | Segment Height |
| (inch) | (mm) | (inch) | (mm) | (inch) | (mm) |
| 0.98 | 25 | 2.36 | 60 | 0.31 | 8 |
| 1.18 | 30 |
| 1.38 | 35 |
| 1.57 | 40 |
| 1.77 | 45 |
| 1.97 | 50 |
| 2.17 | 55 |
| 2.36 | 60 |
| 2.76 | 70 |
| 2.95 | 75 |
Specification from 82mm to 600mm, segment type only.
| Diameter | Working length 1 | Working length 2 | Working length 3 | Segment Height | Thread |
| (mm) | (mm) | (mm) | (mm) | (mm) |
|
| 82 | 360 | 400 | 450 | 10 | 1-1/4", 5/8"-11, G1/2, M14, M16 |
| 92 |
| 100 |
| 112 |
| 122 |
| 127 |
| 152 |
| 178 |
| 200 |
| 225 |
| 252 |
| 300 |
| 305 |
| 352 |
| 400 |
| 450 |
| 505 |
| 550 |
| 600 |
Features:
1. Using high quality raw materials
2. High daily output
3. Save energy
4. Quick delivery 7-10days
5. Diamond tools factory
Product description:
1. Slot segment for fast cutting from very beginning
2. ISO9001:2008
3. Dry cut and wet cut
4. For granite and concret
Diamond core drill bit excelllent diamond segment use on rock or granite, marble, tile, porcelain or concrete.
We offer a full line of bits delicated to accracy, expedient drilling speed and optimum footage.
About us
Our factory established in 1993, specialized in manufacturing all kinds of diamond tools. We can make kinds of quality and sizes of products to fit your market and your stone.
Other specifications are avilable upon the request of customers.

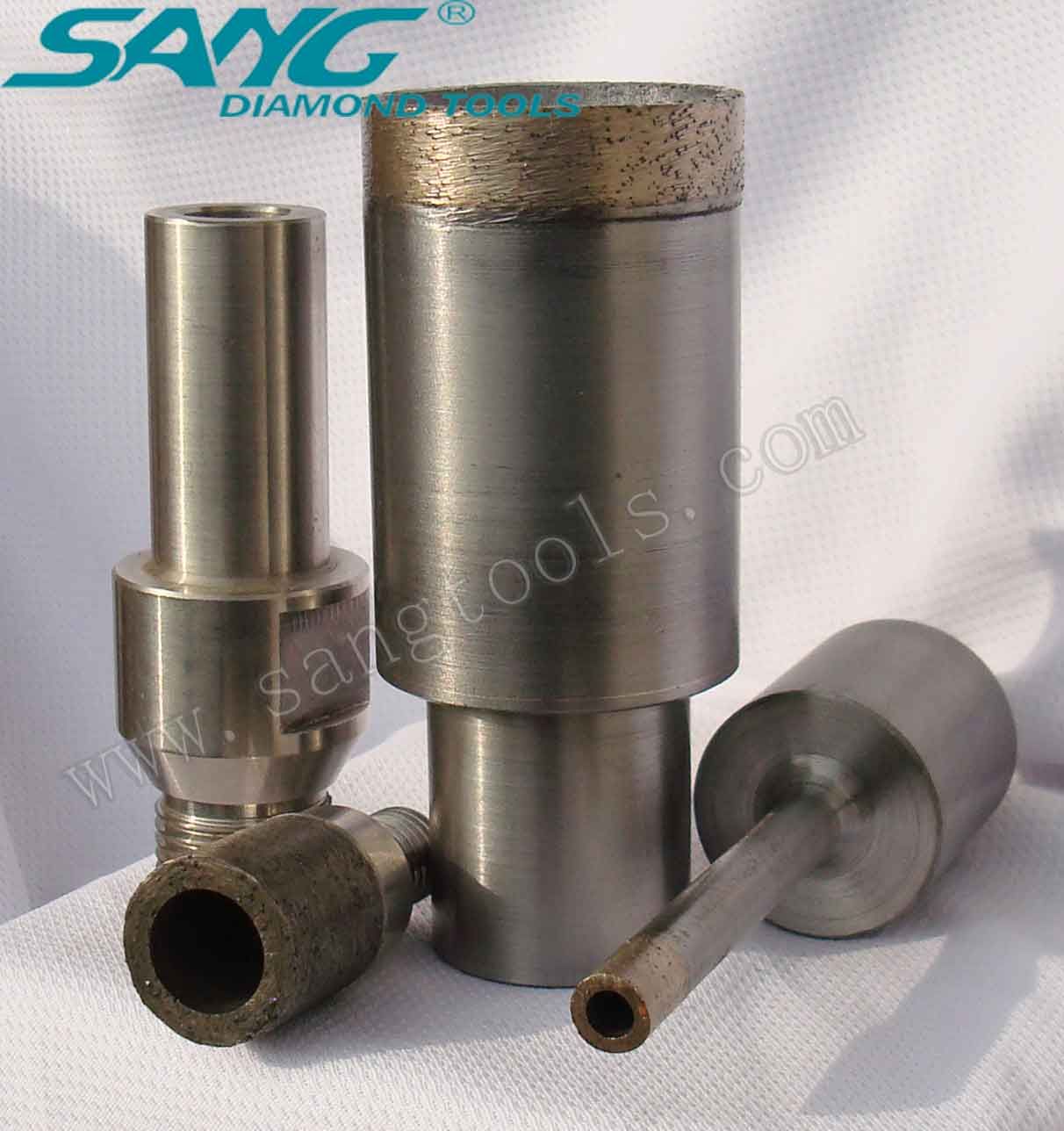

High quality dimond drill bit diamond core bit for stone drilling
Established in 1993, Sang Diamond Tools Co., Ltd. is an innovative company specializing in research and manufacture of various diamond tools, such as diamond segments, diamond blade, diamond wire saws, diamond core bits, diamond polishing pads, diamond cup wheels, and diamond profiling wheels.
Our products are widely used for cutting and grinding granites, marbles, concretes, asphalts, tiles, slabs, countertops, pavement, bricks, curb, steps, palisades, wall stones, pillars, memorials, and sculptures.
Based on advanced technology and comprehensively systematic research and analysis of cutting nature of diverse stones and non-metal materials at home and abroad, we have developed unique diamond tools of sawing, cutting, grinding, milling and drilling which are adaptable in different areas. Owing to the latest manufacturing techniques, the most stable products and the best services, our products enjoy high reputation in both domestic and foreign markets such as Europe, America, East Asia and Southeast Asia.
With high quality products at reasonable prices, we sincerely hope to set up close relationships with customers all over the world.
