Prod Model: |
352214 |
Quality: |
Good/High Quality |
Price: |
Competitive Price |
Rollers: |
Super Finishing Rollers |
Dimension: |
Metric Size or Inch Size |
Precision: |
P0, P6, P5 ABEC1, ABEC3 |
Components: |
Bearing Cup and Cones |
Rolling Body: |
Roller Bearings |
The Number Of Rows: |
Single |
Outer Dimension: |
Small and Medium-Sized (',60-115mm) |
Material: |
Bearing Steel |
Separated: |
Separated |
Product Description
Tapered roller bearings are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.
Specification of taper roller bearings
Product | 352214 bearing |
Material | Chrome steel, GCr15, Bearing Steel |
Decription | 70x125x75mm |
Series: | 302 series 303 series 313 series 322series 323series 329series 320series |
Precision Grade | P0, P6, P5 ABEC1,ABEC3,ABEC5 |
Service | OEM |
Vibration Level code | V1,V2.V3 |
Number of Row | Single |
Regular export packing | Single Box+ Carton +pallet |
Delivery Time | 3-7 days after receiving your payment |
Payment Terms | T/T,Western Union,MoneyGram,Paypal |
Port of shippment by sea | Qingdao, Ningbo, Tianjin , yIwu available |
Place of Origin | Shandong |
Samples | Acceptable |

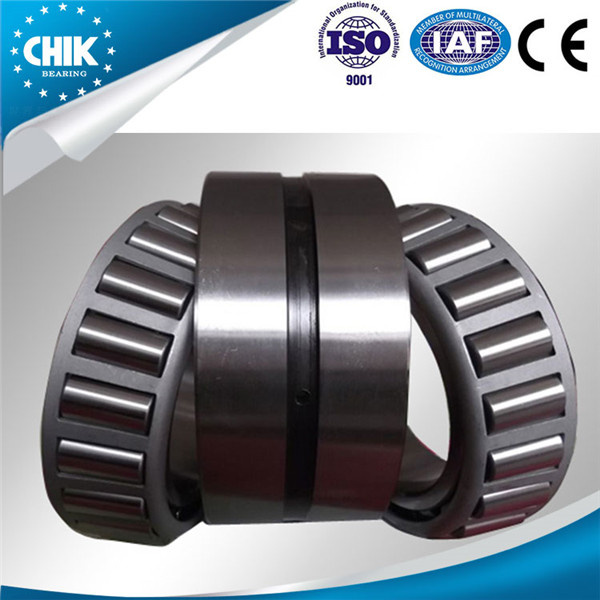

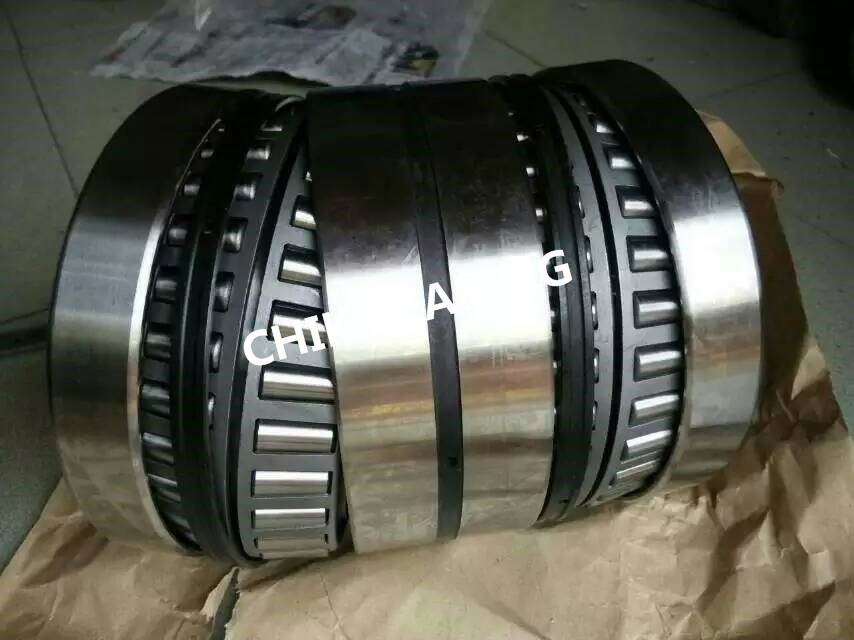

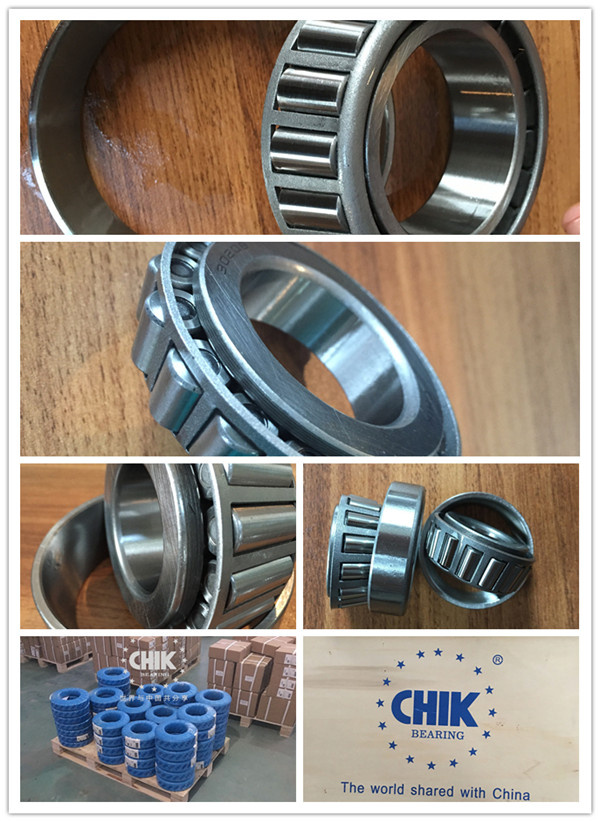

Product Show
Other models we havePrincipal Dimensions (mm) | Designation | Basic Load ratings (KN) | | Limited Speed (rpm) | | Weight |
(kg ) |
d | D | B | | Dynamic load | Static load | Grease | Oil | |
40 | 80 | 55 | 352208 | - | - | - | - | 1.21 |
50 | 90 | 55 | 352210 | 292 | 220 | 3400 | 4500 | 1.34 |
60 | 120 | 75 | 352212 | - | - | - | - | 1.34 |
65 | 120 | 75 | 352213 | - | - | - | - | 3.39 |
70 | 125 | 75 | 352214 | - | - | - | - | 3.51 |
75 | 130 | 75 | 352215 | - | - | - | - | 3.64 |
80 | 140 | 80 | 352216 | - | - | - | - | 4.97 |
85 | 150 | 85 | 352217 | - | - | - | - | 5.67 |
90 | 160 | 94 | 352218 | 460 | 740 | 1900 | 2500 | 7.37 |
100 | 165 | 80 | - | 520 | 1190 | 1800 | 2300 | 5.09 |
100 | 180 | 83 | - | 410 | 690 | 1700 | 2200 | 6.51 |
100 | 180 | 112 | 352220 | 630 | 45 | 1700 | 2200 | 11.3 |
100 | 190 | 125 | - | 635 | 1050 | 1500 | 2000 | 15 |
105 | 190 | 117 | 352221 | 720 | 1210 | 1600 | 2100 | 13.7 |
110 | 180 | 95 | 352122 | 480 | 860 | 1600 | 2100 | 8.63 |
110 | 180 | 95 | 352122K | 480 | 860 | 1600 | 2100 | 8.57 |
110 | 200 | 92 | - | 520 | 847 | 1500 | 2000 | 11.6 |
110 | 200 | 124 | 352222K | 620 | 1150 | 1500 | 2000 | 16.5 |
120 | 180 | 85 | - | 350 | 720 | 1400 | 1900 | 6.77 |
120 | 200 | 110 | 352124 | 605 | 1060 | 1400 | 1900 | 12.7 |
120 | 215 | 87 | - | 520 | 890 | 1400 | 1900 | 13.4 |
FAQQ: Can I customize the bearings?
A: Yes,sure .we provide customize- made service. You need to send us the drawings for our further handing.
Q:Are you a factory or trading company?
A: We are bearing factory and specialized in manufacturing and exporting bearing.
We have our own factory located in Linqing city and warehouse in Jinan city.
Q:Can I get some samples and do you offer the sample free?
A:Yes, sure, we are honored to offer you samples.If we have stock, we can send you free sample and you just need to pay freight. Sample freight to be collect or prepaid by your side. If there's no stock, you need to pay sample fee and freight.
Q:What is the MOQ for bearing?
A: Our MOQ is 1 pc for sample order.
Chik bearings established in 2001, produces a wide range of ball and roller bearings for automotive making, Ferrous Metallurgy, Chemical Machinery and Machine Manufacturing in its primary plants in China mainland. Our main bearing products include Deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, spherical ball bearings, spherical roller bearings, single row angular contact bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings pump bearings, and many non-standard bearings are also in our product range. The annual output is more than 10 million sets.
To stay in front and making progress, we continually keep expanding our manufacturing capabilities in more cities where are more traffic-developed and Resources-adequate in Liaocheng, Ningbo and Tianjin in China.

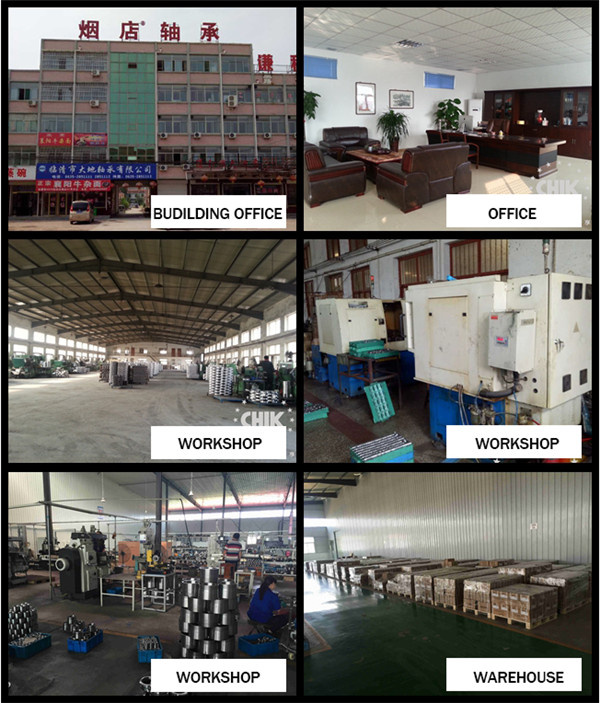

Our plant was equipped with fully modern enclosed dust-free workshop and warehouse, with improved detection technology. This enables us produce many high quality bearings and meet customers delivery time. All products could meet many advanced international standards with high quality steel and fully testing treatment.
Our main product:
Spherical roller bearings
Taper roller bearings
Cylindrical roller bearings
Angular contact ball bearings
Deep groove ball bearings
Thrust ball bearings
Thin section bearings
Self-aligning ball bearings
Needle roller bearings etc.
Sincerely hope to establish business relationship with your esteemed company in the near future.
Any inquiry or order placement, please feel free to contact us.
