| Prod Model: |
ROS-1 |
| Name: |
Drilling Rig Machine |
| China: |
China Drilling Rig Machine |
| Supplier: |
China Rotary Drilling Rig Supplier |
| Sales: |
China Land Drilling Rig Sale |
| Type: |
Oil Drilling Rig |
| Rig Parts: |
China Drilling Rig Parts |
| Equipment: |
China Drilling Equipment |
| Rock Drilling: |
China Quality Rock Drilling Tools |
| Manufacturer: |
China Crawler Drilling Rig Manufactu |
| Drilling: |
China Drilling Rig Machine |
Product Description
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
We have rich experience in this field of DTH hammers and bits for 60 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.
Product Description
Specifications
1. The drill rig has more speed series and reasonable speed range
2. Rig power, small size, light weight, versatility.

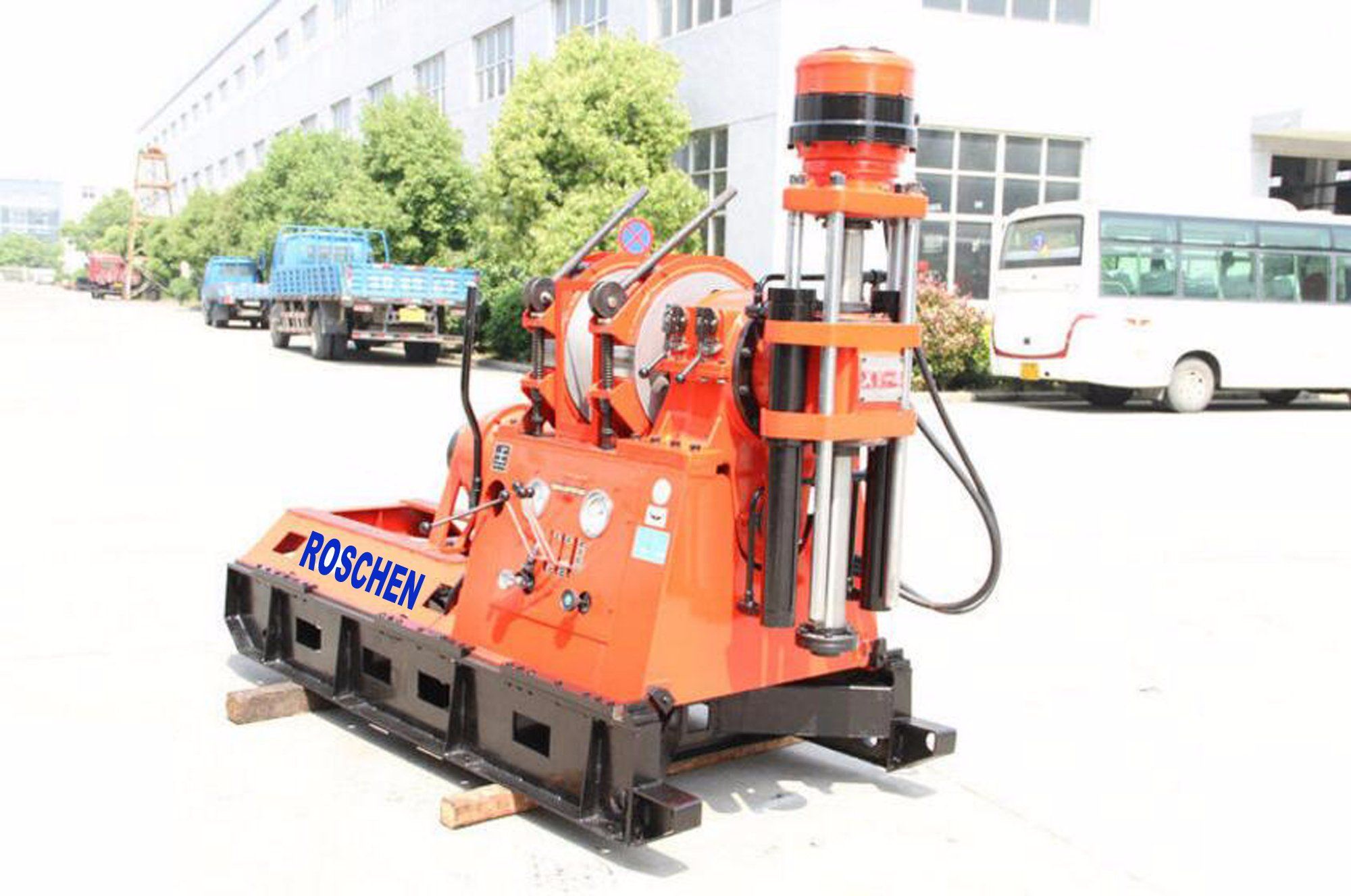

The machine is mainly used for core drilling, geological exploration, hydrology, water wells and micro-hole drilling rig construction and other pile. It has more speed series and reasonable speed range, rig power, small size, light weight and versatility.
Related technical parameters are as follows:
1, the basic parameters
Drilling Depth: 300 ~ 600 meters
Drill Diameter: Φ 42 mm, Φ 50 mm
Drilling angle: 0 ~ 90 °
Rig verandahs Size: (L × W × H) 2160 × 950 × 1700 mm
Rig Weight: (excluding Engine) 950 kg
2, the rotary device (with motor Y180L-22-4, Speed 1470RPM, power 22KW)
Spindle Speed:
Forward speed: 70; 121; 190; 263 r / min
Forward speed: 329; 570; 899; 1241 rev / min
Reverse speed: 55 rev / min
Reverse speed: 257 r / min
Spindle travel: 600 mm
Vertical maximum lifting capacity: 80 kN
Vertical maximum pressure capacity: 60 kN
Spindle diameter: Φ 68 mm
Vertical maximum torque: 2760 Nm
3, the winch (with motor Y180L-22-4, Speed 1470RPM, power 22KW)
Maximum lifting capacity (single rope speed): 30 kN
Drum speed: 37; 65; 103; 141 r / min
Rope lifting speed (single rope single): 0.41; 0.73; 1.15; 1.58 m / s
Wire Rope Specifications: Φ 16 mm
Wire rope capacity: 50 m
4, mobile device
Mobile cylinder Stroke: 465 mm
Rig left the orifice distance: 315 mm
FAQ
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.
Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
