High Quality Granite CNC Diamond Finger Bit for Drilling
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
SYZH-FB-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter(mm): |
22 - 25 |
| Bore: |
1/2gas (Male Thread) |
| Length(mm): |
40 - 100mm |
| Type: |
Completed/Segmented |
| Painting Color: |
as Customer's Request |
| Advantage: |
Quality and Price |
| Features: |
High Tension & Efficiency |
| Characteristic: |
Long Life |
| Supplier: |
Quanzhou Sunny Superhard Tools Co., Ltd. |
| Support: |
High Quality Granite CNC Diamond Finger Bit for Dr |
Product Description

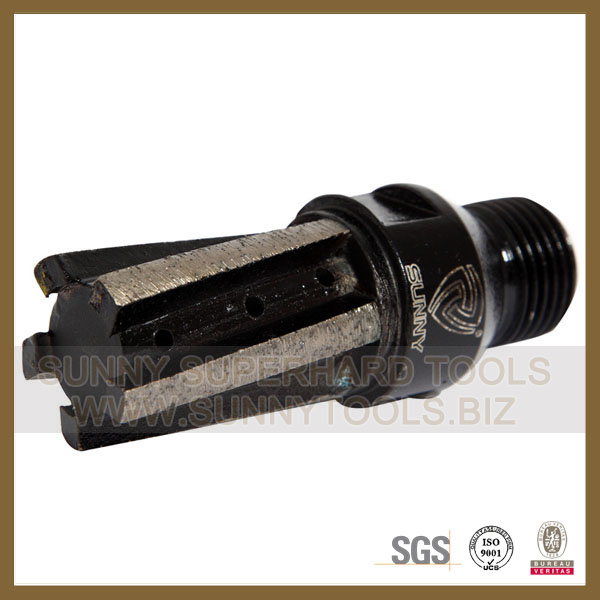

High Quality Granite CNC Diamond Finger Bit for Drilling
Features and Application1. Excellent cutting speed with a long cutting life compared to electroplated core bits;2. Ideal for marble and limestone drilling, can perform on granite, tiles, porcelain, concrete and more;3. Could be used wet or dry with cooling slots design for easier core removal when stuck.Other specifieations available upon request| Diameter(Inch/mm) | Segment Height(mm) | Usable Length(mm) | Connection |
| 1/4" /ø 6.30 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 3/8" /ø 9.50 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1/2" /ø 12.7 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 5/8" /ø 15.9 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 3/4" /ø 19.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1" /ø 25.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1-1/8" /ø 29.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1-1/4" /ø 32.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1-3/8" /ø 35.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1-1/2" /ø 38.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1-5/8" /ø 41.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 1-3/4" /ø 45.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 2" /ø 51.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 2-1/4" /ø 57.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 2-1/2" /ø 63.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 2-3/4" /ø 70.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 3" /ø 76.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 3-1/2" /ø 90.0 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
| 4" /ø 100 | 8.0-10.0 | 35/50/60 | Shank / M14 / 5/8" -11 / G 1/2" |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
