High Quality Hydraulic Cylinder

Prod Model:	RC Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stroke:	48-52mm
Capacity:	50-500ton
Collapsed Height:	123-190mm
Outside Diameter:	135-395mm
Piston Diameter:	100-310mm
Working Pressure:	700 Bar
Weight:	14-185kg
Color:	Black or Customized
Return:	Load Return
Feature:	Lock Nut
Material:	Steel
Structure:	Piston Cylinder
Power:	Hydraulic
Standard:	Nonstandard
Pressure Direction:	Single-acting Cylinder
Usage:	Weight Lifting

Product Description

Product Features
1. Self lock nut, long time safe load support;
2. Single acting, load return;
3. Cylinder are all equipped with lug handles for easy handling;
4. Dustproof ring installed to extend cylinder life;
5. Special surface treatment, stronger corrosion resistance;
6. 5 ° Maximum partial load;
7. Technical conditions, cylinder sealing size and the usage are in line with the standard of China mainland.

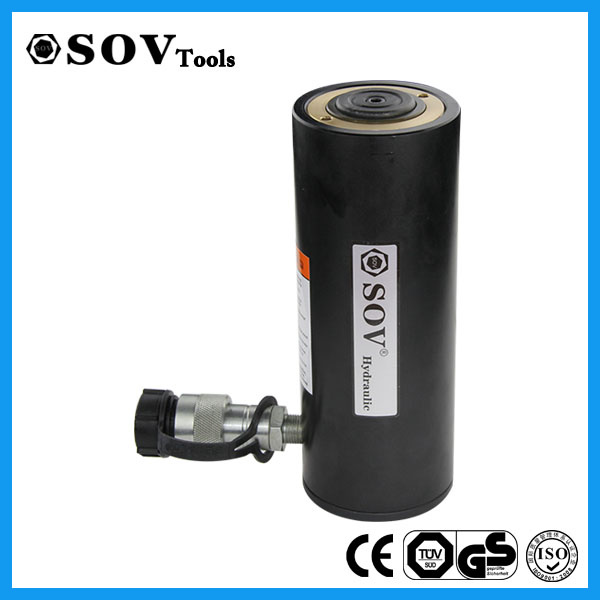

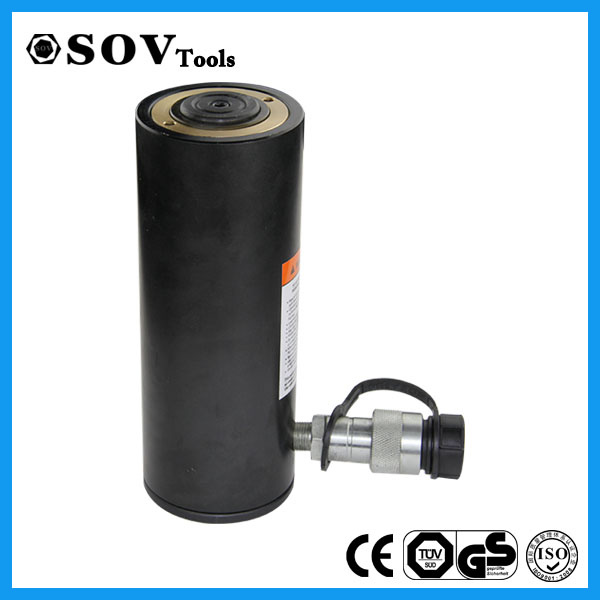

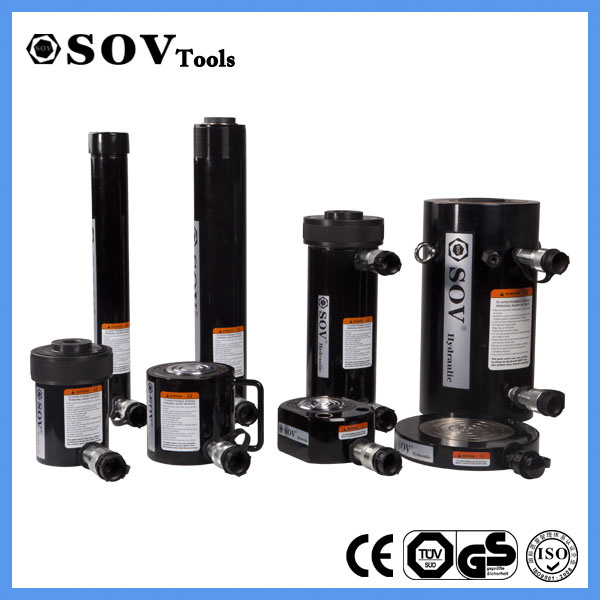

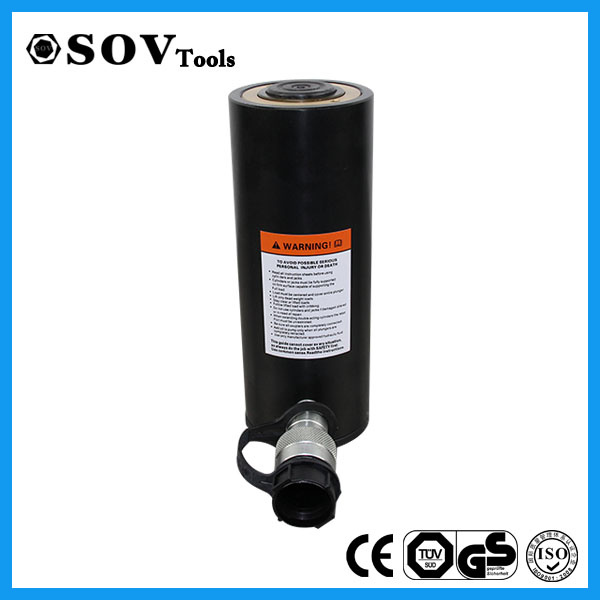

Product Picture

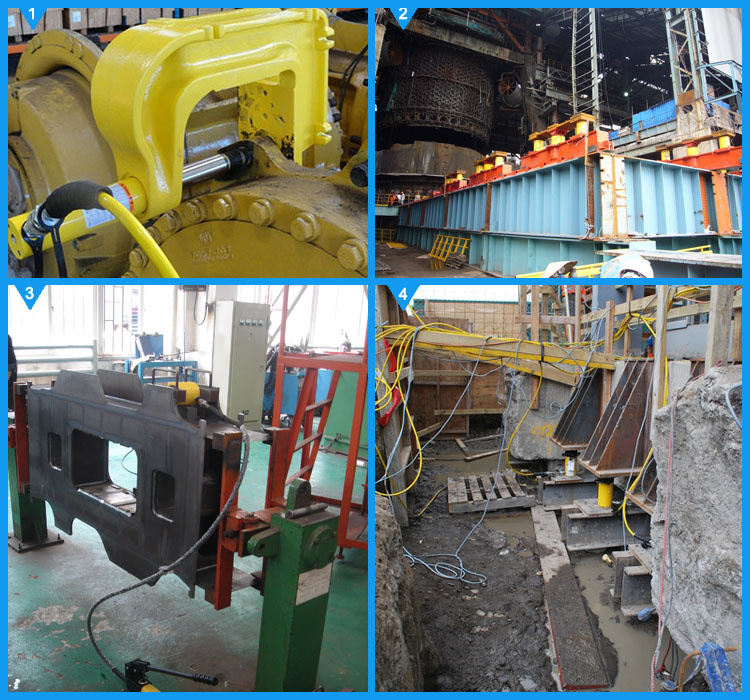

Application:




Specification:


Model Number	Cylinder Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height	Weight
	ton (kN)	mm	cm2	cm3	mm	kg
SOV-RC-50**	5 (45)	16	6,5	10	41	1
SOV-RC-51		25	6,5	16	110	1
SOV-RC-53		76	6,5	50	165	1,5
SOV-RC-55*		127	6,5	83	215	1,9
SOV-RC-57		177	6,5	115	273	2,4
SOV-RC-59		232	6,5	151	323	2,8
SOV-RC-101	10 (101)	26	14,5	38	89	1,8
SOV-RC-102*		54	14,5	78	121	2,3
SOV-RC-104		105	14,5	152	171	3,3
SOV-RC-106*		156	14,5	226	247	4,4
SOV-RC-108		203	14,5	294	298	5,4
SOV-RC-1010*		257	14,5	373	349	6,4
SOV-RC-1012		304	14,5	441	400	6,8
SOV-RC-1014		356	14,5	516	450	8,2
SOV-RC-151	15 (142)	25	20,3	51	124	3,3
SOV-RC-152		51	20,3	104	149	4,1
SOV-RC-154*		101	20,3	205	200	5
SOV-RC-156*		152	20,3	308	271	6,8
SOV-RC-158		203	20,3	411	322	8,2
SOV-RC-1510		254	20,3	516	373	9,5
SOV-RC-1512		305	20,3	619	423	10,9
SOV-RC-1514		356	20,3	723	474	11,8
SOV-RC-251	25 (232)	26	33,2	86	139	5,9
SOV-RC-252*		50	33,2	166	165	6,4
SOV-RC-254*		102	33,2	339	215	8,2
SOV-RC-256*		158	33,2	525	273	10
SOV-RC-258		210	33,2	697	323	12,2
SOV-RC-2510		261	33,2	867	374	14,1
SOV-RC-2512		311	33,2	1033	425	16,3
SOV-RC-2514*		362	33,2	1202	476	17,7
SOV-RC-308	30 (295)	209	42,1	880	387	18,1
SOV-RC-502	50 (498)	51	71,2	362	176	15
SOV-RC-504		101	71,2	719	227	19,1
SOV-RC-506*		159	71,2	1131	282	23,1
SOV-RC-5013		337	71,2	2399	460	37,6
SOV-RC-756	75 (718)	156	102,6	1601	285	29,5
SOV-RC-7513		333	102,6	3417	492	59
SOV-RC-1006	95 (933)	168	133,3	2239	357	59
SOV-RC-10010		260	133,3	3466	449	72,6

Packaging Details

1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Stretch Film;
3. Customized packaging acceptable.


Delivery

1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.

Product Application

Our products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.

Our Service

1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information

SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.

Competitive Advantages

1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
