| Price: | US $ 2/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | XZF17 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | Dme/DIN etc Standard and Customized Avaliable |
| Price: | Manufactury Price |
| MOQ: | 10PCS/Type |
| Delivery Time: | Generally 7-8 Workdays or According to Quantity |
| Shaping Mode: | Injection Mould |
| Process Combination Type: | Single-Process Mode |
| Application: | Hardware |
| Installation: | Fixed |
| Certification: | ISO9001:2008 |
| Design Software: | Pdf, CAD, PRO-E, Ug, Other Drawing Formats |

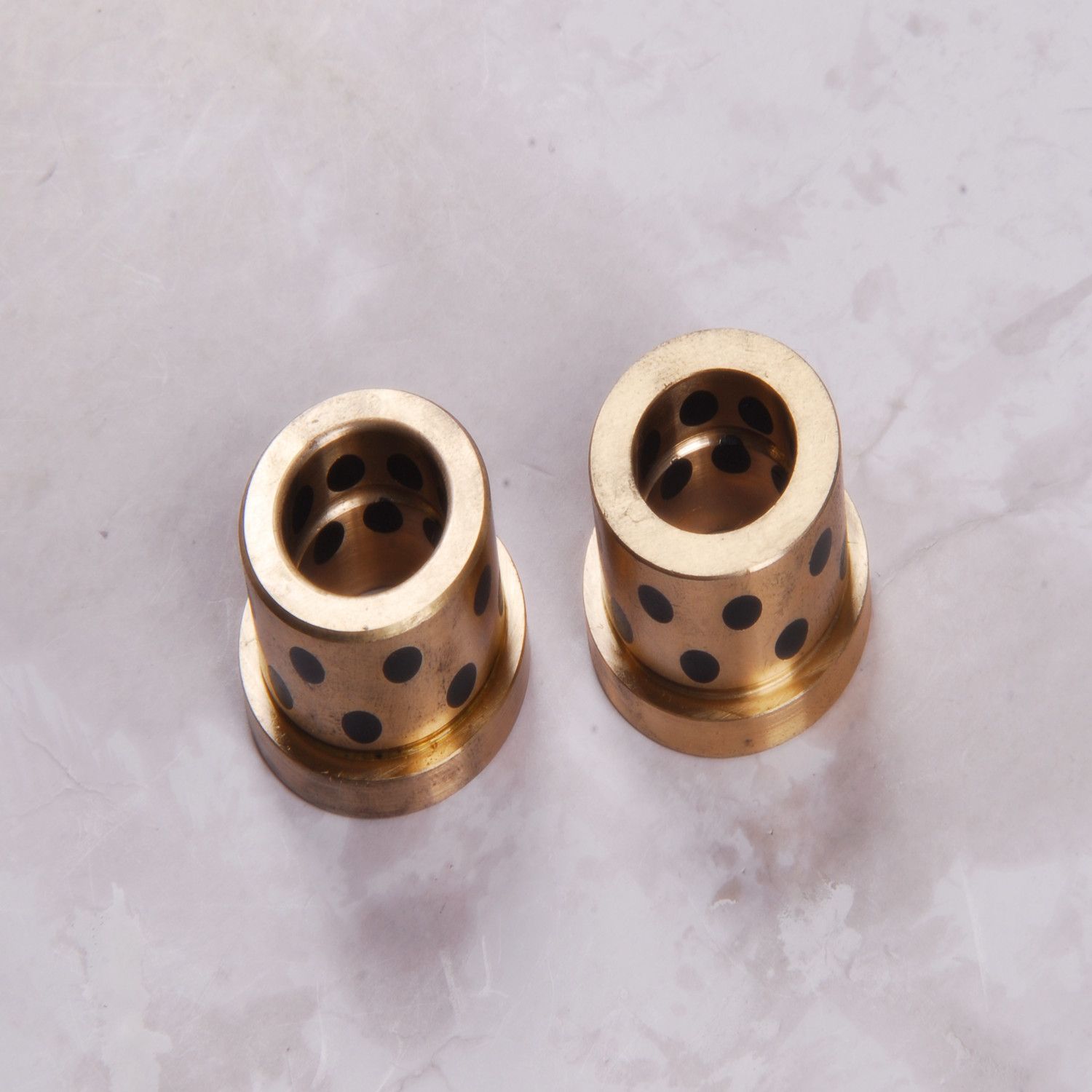

Product name | high quality oil free guide bushing |
| Materials Available | 1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420 |
| 2. Steel:C45(K1045), C46(K1046),C20 | |
| 3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40) | |
| 4. Bronze: C51000, C52100, C54400, etc | |
| 5. Iron: 1213, 12L14,1215 | |
| 6. Aluminum: Al6061, Al6063 | |
| 7.OEM according to your request | |
| Products Available | bolts, screws, nuts, rivets, stem nuts, shafts(axles, spline shafts, dart shafts),gears (pinions, wheels ) bearing, bearing seat, spring, connector, socket, bushing, push-button, etc. |
| Surface Finish | annealing, natural anodization, heat treatment, polishing, nickel plating, chrome plating, yellow passivation, gold passivation, galvanizing, satin, etc. |
| Processing Method | cnc machining, turning, milling, drilling, grinding, broaching, welding and assembly |
| QC (inspection everywhere ): | Technicians self-check in production |
| Size | customized |
| Tolerance | ±0.01mm |
| offset distance | ±0.02mm |
| Package | As per customized specifications |
| Certificate | ISO9001:2008 |
| Description | High-quality, rich manufacturing experience |
| Lead Time | 5-7days samples. 7-10days offcial order |
| Company:Dong guan city Xiang zhen mold parts Co.,Ltd | ||
| Web: www.xzmold.com | ||
| Location:Dong guan,China (close to Hong Kong,Shen Zhen,Guang Zhou) | ||
| Software:PDF,Auto-CAD,Pro-E,UG etc are available | ||
| Employee:100-200 | ||

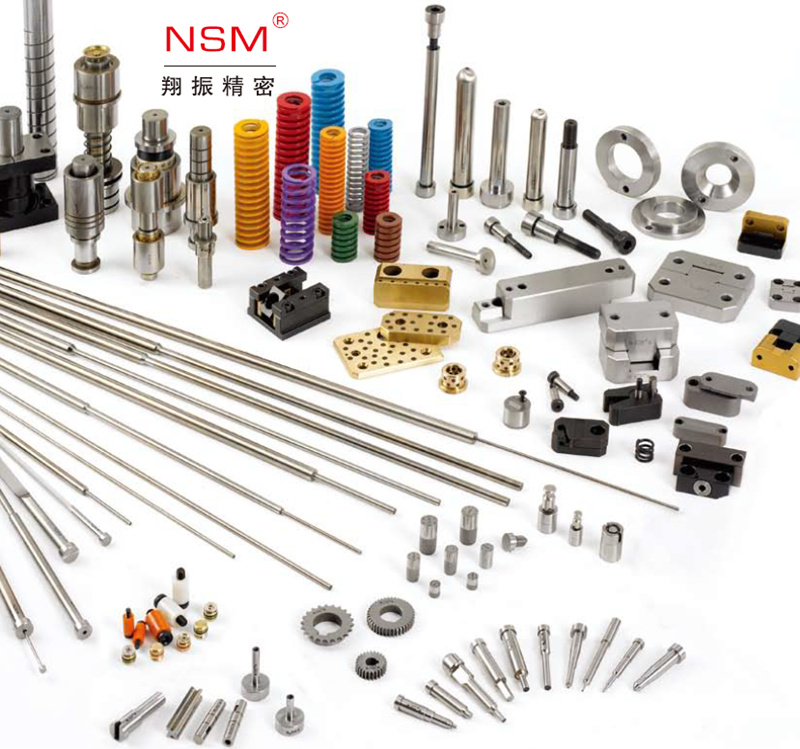

| Manufacture in:High precision mold parts/Hot-runner and related parts/CNC/EDM parts/Grinding parts/Customized mold parts Export Markets: Global |
Description | Machine type name | Origin from and brand | Quantity | Precision level(mm) |
| Processing equipment | CNC Processing | Taiwan | 3 | ±0.01 |
| CNC Lathe | Japan | 2 | ±0.003 | |
| WEDM (Low speed wire cutting) | Japan | 2 | ±0.005 ±0.002 | |
| WEDM (high-speed wire cutting) | China | 2 | ±0.005 ±0.01 | |
| Flood grinder | China | 1 | ±0.002 | |
| EDM | Taiwan | 2 | ±0.005 | |
| ID Grinder | Taiwan | 3 | ±0.001 | |
| Depth drill | Taiwan | 3 | ±0.02 | |
| Automatic grinder | Taiwan | 2 | ±0.001 | |
| Centerless Grinder | Taiwan | 12 | ±0.001 | |
| Surface Grinder | Japan | 2 | ±0.001 | |
| Surface Grinder | Taiwan | 5 | ±0.001 | |
| Vertical hydraulic Heading Machine | China | 2 | ||
| Semi-automatic Heading Machine | Taiwan | 3 | ||
| Manual Heading Machine | Taiwan | 2 | ||
| Automatic forging machine | Taiwan | 1 | ||
| Bench grinders | Taiwan | 2 | ||
| Punch Grinder | Taiwan | 6 | ±0.002 | |
| Lathe | China | 4 | ±0.01 | |
| 32 type Lathe | Taiwan | 4 | ||
| 25 type Lathe | Taiwan | 3 | ±0.01 | |
| 15 type Lathe | Taiwan | 10 | ±0.01 | |
| Milling Machine | Taiwan | 6 | ±0.01 | |
| Liquid nitriding furnace | China | 1 | ||
| Tempering furnace | China | 2 | ||
| Oxidation furnace | China | 1 | ||
| Inspection equipment | Rockwell hardness | Shanghai | 1 | ±0.5° |
| Height gage | Japan | 2 | 0.001mm | |
| Microscope | Shanghai | 2 | 0.0001mm | |
| Three-dimensional | Germany(Zeiss) | 1 | ±0.002 | |
| 2.5 dimension | Taiwan | 1 | ±0.001 | |
| Digital Projector | Taiwan | 1 | ±0.002 | |
| Vickers hardness tester | Taiwan | 1 | ||
| Concentricity device | Taiwan | 2 | ±0.001 | |
| Digital Micrometer calipers | Taiwan | Multiple | Conventional | |
| slide calliper rule | Taiwan | Multiple | Conventional | |
| Height Gauge | Taiwan | 1 | Conventional | |
| Roughometer | Japan | 1 | Conventional |
Accuracy for EDM | Clearance angle | R0.03mm |
| Surface Roughness | Ra0.05mm | |
| Accuracy for Grinding | Clearance angle | R0.02mm |
| Shape tolerence | ±0.001mm | |
| Accuracy for surface | Ra0.05mm | |
| Minimum thickness | 0.1mm | |
| Minimum groove | Wide 0.01mm;Depth 0.25mm | |
| Material | Japan:SKD61/SKD11/SKH51/SUJ2 | |
| Germany:1.2343/1.2344 or as Customer's request. | ||
| Size | Standard as DME/Hasco/Punch etc or Customized | |
| MOQ | 1Pcs/Type | |
| Price | EXW/FOB/CNF/CIF | |
| Payment | T/T or %advance-%against shippment |
