| Prod Model: |
P10 |
| Cabinet Material: |
Iron |
| Best View Distance: |
10~150m |
| LED Chip Spec: |
DIP347 |
| Shipment Terms: |
by Sea or by Air |
| Control System: |
Linsn or Nova |
| Price: |
Factory Direct Sale |
| Brightness: |
7500-8500 CD/M2 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
Product Description

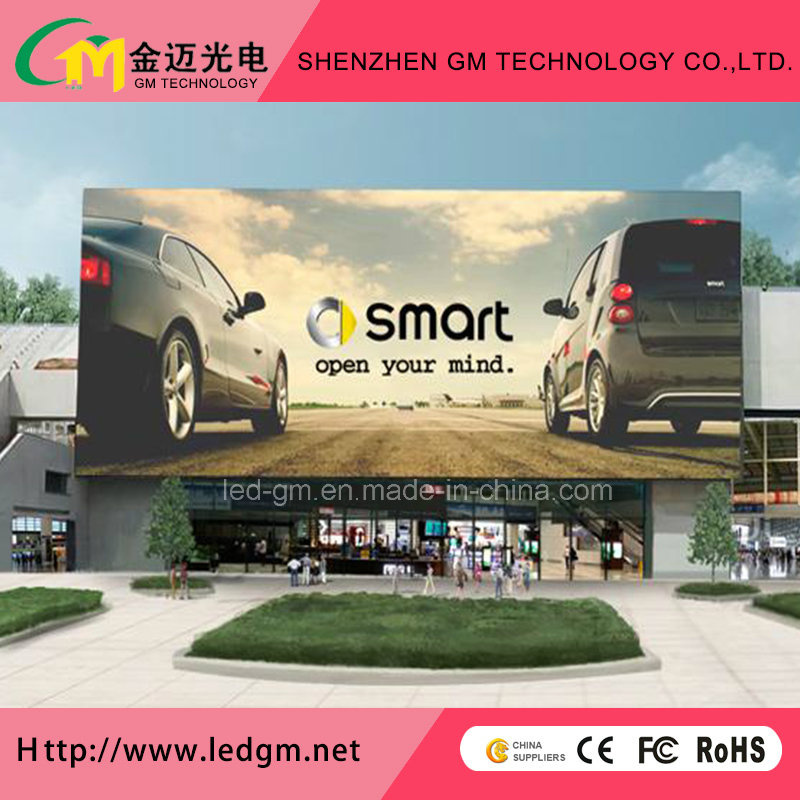

High Quality Outdoor Full Color LED Video Display for Building
Wholesale P10 Outdoor Full Color LED Display for Fixed Installation
Product Features:
Mainly for outdoor advertising, information publishing, journalism and communication in some places, such as cultural square, traffic arteries, stations, terminals, information centers, entertainment venues, shopping, centers, commercial city and etc.
1. High brightness DIP LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
3. Weatherproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid audio visual effect.
6. Both front and rear access are available.
7. The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.
8. Use the same level of red, green and blue led chips, which makes the image display of whole led display more excellent and uniform.
9. The maintenance of pixel and single led has been realized.
10. Good quality raw material, accurate technique and careful inspection insures the high quality of led display.
11. Relatively low cost (factory)
12. Stable capability
13. High brightness, high definition of displaying image.
14. Easy installment and low maintenance cost
15. Cabinet size double fan design, speed up internal air circulation, auxiliary heat make the screen more stable and reliable.
Contact Us Now to know more: Mobile: +86 13692105755
| Product Model | Outdoor Fixed F10-4S | Outdoor Fixed F10.66-4S | Outdoor Fixed F16 | Outdoor Fixed F20 | Outdoor Fixed F25 |
| Pixel Pitch | 10 mm | 10.66 mm | 16 mm | 20 mm | 25 mm |
| Module Size | 160x160 mm | 256x256 mm | 256x256 mm | 320x160 mm | 200x200 mm |
| Module Resolution | 16x16 pixels | 24x24 pixels | 16x16 pixels | 16x8 pixels | 8x8 pixels |
| LED | DIP 347 | DIP 347 | DIP 347 | DIP 347 | DIP 347 |
| Standard Cabinet Size | 960x960 mm | 1024x1024 mm | 1024x1024 mm | 1280x1280 mm | 1200x1200 mm |
| Standard Cabinet Resolution | 96x96 pixels | 96x96 pixels | 64x64 pixels | 64x64 pixels | 32x32 pixels |
| Standard Cabinet | Iron | Iron | Iron | Iron | Iron |
| Physical Density | 10000 Pixels/m2 | 8800 Pixels/m2 | 3906 Pixels/m2 | 2500 Pixels/m2 | 1600 Pixels/m2 |
| White Balance Luminance | ≥7500 nits | ≥8500 nits | ≥8500 nits | ≥8500 nits | ≥8500 nits |
| Gray Scale per Color | 65536 grades gray(16 bit) | 65536 grades gray(16 bit) | 65536 grades gray(16 bit) | 65536 grades gray(16 bit) | 65536 grades gray(16 bit) |
| Contrast | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Refresh Frequency | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz |
| Visual Angle(Horizontal/Vertical) | 120°/50° | 120°/50° | 120°/50° | 120°/50° | 120°/50° |
| Max Power | 600 W/m2 | 650 W/m2 | 900 W/m2 | 1000 W/m2 | 1100 W/m2 |
| Average Power | 180 W/m2 | 180 W/m2 | 280 W/m2 | 320 W/m2 | 350 W/m2 |
| Input Voltage(AC) | 110 V -240 V | 110 V -240 V | 110 V -240 V | 110 V -240 V | 110 V -240 V |
| Working Environment Temperature | -20ºC~50ºC | -20ºC~50ºC | -20ºC~50ºC | -20ºC~50ºC | -20ºC~50ºC |
| Operating Humidity | 10%RH~95%RH | 10%RH~95%RH | 10%RH~95%RH | 10%RH~95%RH | 10%RH~95%RH |
| Control System | AV,Video,VGA,DVI,HDMI,SDI,DP | AV,Video,VGA,DVI,HDMI,SDI,DP | AV,Video,VGA,DVI,HDMI,SDI,DP | AV,Video,VGA,DVI,HDMI,SDI,DP | AV,Video,VGA,DVI,HDMI,SDI,DP |
Why GM LED Display
1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "(GM) Meaning:Manufacturing golden quality , Towards the world ", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2006, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
4. Professional services
We have 5-6 in the LED display industry more than 12 years of professional and technical personnel, hope to be able to better provide customers with the best solution. Let customers use the rest assured.
Services:
1.Your inquiry related to our products or price will be replied in 12hrs.
2.OEM&ODM,any your customized lightings we can help you to design and put into product.
3.Distributoership are offered for your unique design and some our current models.
4.Protection of your sales area,ideas of design and all your private information.
5.Best cost performance and perfect service before and after sales.
Other products:
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5,P3, P4, P5, P6, P8, P10
Currently, GM Technology LED display is already exported to Asia, Europe, South America, North America, Africa and Middle East and other regions.For more details, please feel free to contact us. We will give you best service and timely reply.
Packing>>>
For iron cabinet led display screen of indoor or outdoor,we usually use wooden case to packing
For aluminum cabinet of led rental stage display,we usuallu use flight case to packing
One wooden case including 2 cabinets,one flight case including 6 cabinets
Shippment>>>
By air or sea,FOB shenzhen
UPS/DHL/Fedex/Express(door to door)and so on
Delivery time>>>
within 20 days counting from 30% prepayment arrived at GM account.
Payment term>>>
T/T(30% deposit,the remained 70% payment made before factory shipment )
Western union/paypal/L/C and so on
Quality assurance>>>
We offer 5 years warranty,and our products have passd CE,RoHS,FCC certificate ,All products have Age testing,shaking testing,waterproof testing,In generally,Module test is 24h,entire screen test is 72h,A series of testing before delivery can ensure transportation and quality products.
FAQ
1:What is the warranty of your led display?
A:We offer 5 years warranty.and more than 100000 hours screen life span
2:what is your payment term?How long it takes to delivery?
A:We usually accapt the T/T or L/C.both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery.The lead time is usually 20 day
3:How can you ensure the led display product quality?
A:Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,ensure products can transportation safety and normal use.
4:What is your pre-sale and post-sale service?
A:For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours.
For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.
