| Prod Model: |
PPR HOT WATER PIPE |
| Pressure: |
1.25MPa, 1.6MPa, 2.0MPa, 2.5MPa |
| Standard: |
DIN8077/8088 |
| Density: |
0.89-.92g/cm3 |
| Length: |
4 Meters |
| Life: |
50 Years |
| Quality: |
Top |
| Outer Diameter: |
Dn20 |
| Packing: |
Bag |
| Connection: |
Welding |
| Product Name: |
High Quality PPR Pipe for Supply Hot Water |
| Material: |
PPR |
| Hardness: |
Hard Tube |
| Type: |
Thermosetting Plastic Pipe |
| Hollow: |
Hollow |
| Shape: |
Round |
| Usage: |
Water Supply Pipe |
| Color: |
Green, White |
Product Description

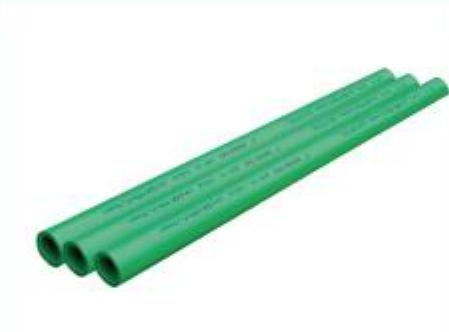

High Quality PPR Pipe for Supply Hot Water
Shanghai Hope Look Co., Ltd. is a professional production and export of HDPE PIPES and HDPE FITTINGS enterprise. Now our products have been widely used on PPR pipes and fittings. Our annual production capacity of HDPE PIPES is 500000 pieces and annual production capacity of HDPE FITTINGS is 1000000 pieces.
We have advanced production equipment, well-equipped testing facilities and strong technical force to ensure product quality stability, allowing you peace of mind.
Based on the real markets requirements and be innovated along with the new potential consumption, our company focus on the principle of "Quality prior to everything, while customers to be the first", so as to offer a satisfied service to all of our customers
We welcome new and old customers from all the world to contact us for future business and mutual success!
Product Description: | Spec(mm) | Thickness(mm) |
| S5 1.25MPa | S4 1.6MPa | S3.2 2.0mps | S2.5 2.5MPa |
| 20 | 2.0 | 2.3 | 2.8 | 3.4 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 |
| 32 | 2.9 | 3.6 | 4.4 | 5.4 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 |
| 50 | 4.6 | 5.6 | 6.9 | 8.3 |
| 63 | 5.8 | 7.1 | 8.6 | 10.5 |
| 75 | 6.8 | 8.4 | 10.3 | 12.5 |
| 90 | 8.2 | 10.1 | 12.3 | 15.0 |
| 110 | 10.0 | 12.3 | 15.1 | 18.3 |
| 160 | 14.6 | 17.9 | 21.9 | 26.6 |
Applications: 1)Cold / hot water supply facilities for public buildings
2) Food, chemical, electronic industry pipeline networks
3)Drinking water production system pipeline networks
4) Air conditioning facility pipelines
5) Compressed gas pipeline networks for industry
6) Traditional heating
7) Central air conditioning system
8) Floor heating system
Product Advantages:
1. Non-toxic: No heavy metal additives, would not be covered with dirt or contaminated by bacterium
2. Corrosion Resistant: Resist chemical matters or electron chemical corrosion
3. Light weight: The density is 0.89-. 92g/cm3, only 1/9 of the steel tube, and 1/10 of the copper tube.
4. Higher Flow Capacity: Smooth interior walls result in lower pressure loss and higher volume than metal pipe
5. Good thermal performance: The working temperature can be
Used in 700C for a long time, the water temperature can be
Reached to 950C in short-term use.
6. Long service life: In the normal environment, under the
Working pressure for 10Kg/cm2, the service life of the PP-R
Pipe is longer than other materials pipe. Because it has a
Excellent heat resistance (available in 700C conditions for 50
Years).
7. Lower Installation Costs: Light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
8. Recycled and Environment-friendly
