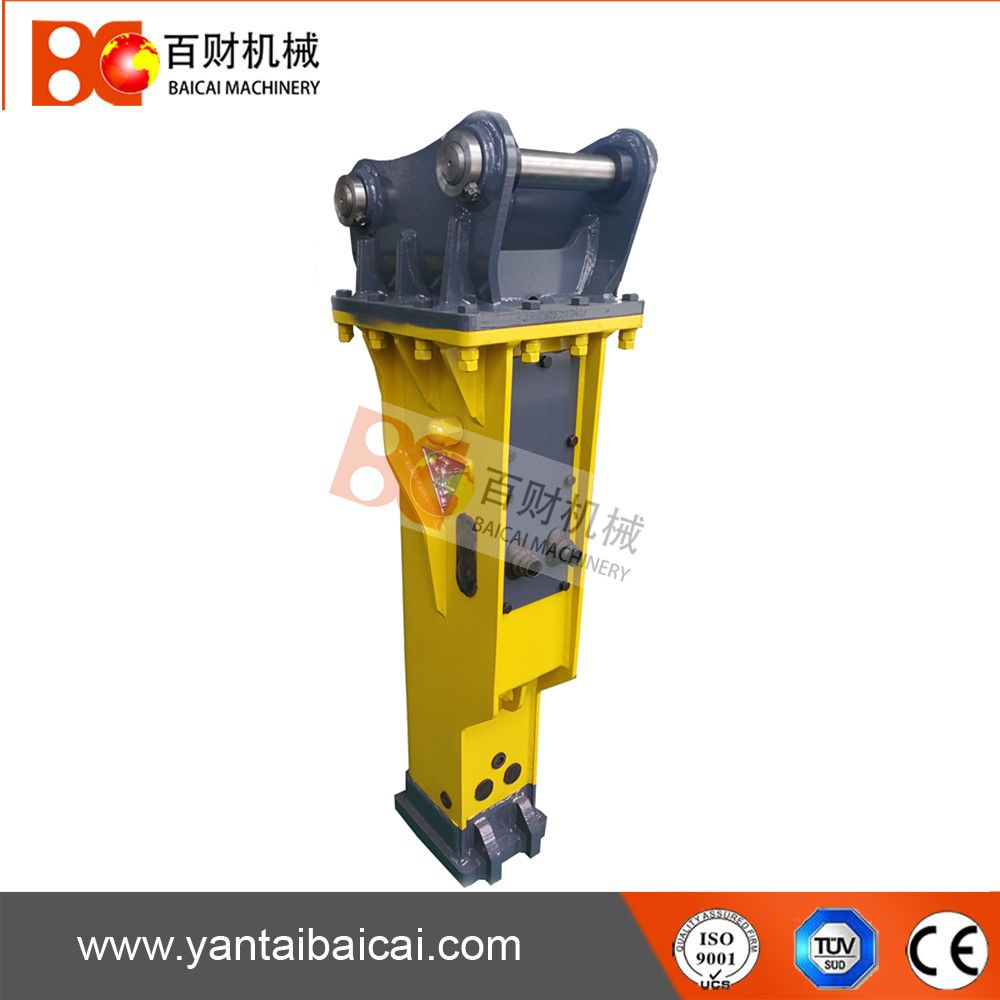

High Quality Silent Hydraulic Rock Breaker Hammer with 75mm Chisel
| Price: |
US $ 2000-2500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
YLB750 |
| Product Name: |
Hydraulic Breaker Hammer |
| Chisel Diameter: |
75mm |
| Oil Hose Diameter: |
1/2inch |
| Warranty: |
14months |
| Color: |
Yellow or as Per Customers' Request |
| Suitable Excavator: |
6-9ton |
| Impact Rate: |
450-800BMP |
| Chisel Type: |
Moil Point Type, Blunt, Wedge Type...... |
| Required Oil Flow: |
50-90L/Min |
| Impact Energy: |
900joule |
| Certification: |
TUV |
| Condition: |
New |
| Type: |
Silent Type |
| Application: |
Mountains, Mining, Crushing, Secondary Crushing |
Product Description
High Quality Silent Hydraulic rock breaker hammer with 75mm chiselMain Features
1. Use the highest strength material to get better wearing resistance.2. Easy maintenance, prolonged life.3. We have accumulated sales of 20,000 units, rich maintenance experience.Advantages1. Selected raw material - high quality heavy duty wear resistant steel2. Hydraulic-gas system, increase stability3. High-quality and durable wear parts4. Advanced manufacturing facilities, introduced from South Korea5. High energy and impact frequency (high performance)6. High-performance optimized hydraulic unit7. Low maintenance, less breakdown, long using lifeSpecification
| Description | Model | SB30 | SB40 | SB43 | SB50 | SB70 | SB81 | SB121 | SB131 |
| | | YLB530 | YLB680 | YLB750 | YLB1000 | YLB1350 | YLB1400 | YLB1550 | YLB1650 |
| Operating Weight | KG | 150 | 300 | 430 | 860 | 1650 | 1825 | 2850 | 3350 |
| Optimum Oil Flow | L/min | 25-50 | 40-70 | 50-90 | 80-120 | 100-150 | 130-170 | 170-220 | 200-260 |
| Impact Rate | bpm | 550-1000 | 500-800 | 450-800 | 350-700 | 350-600 | 350-500 | 300-450 | 250-400 |
| Hose Diameter | inch | 1/2 | 1/2 | 1/2 | 3/4 | 1 | 1 | 5/4 | 5/4 |
| Rod Diameter | mm | 53 | 68 | 75 | 100 | 135 | 140 | 155 | 165 |
| Applicable Carrier | ton | 2.5-4.5 | 4-7 | 6--9 | 11-16 | 18-21 | 20-26 | 28-35 | 30-40 |
| Valve Ass'y Position | / | internal | internal | internal | internal | internal | internal | internal | internal |

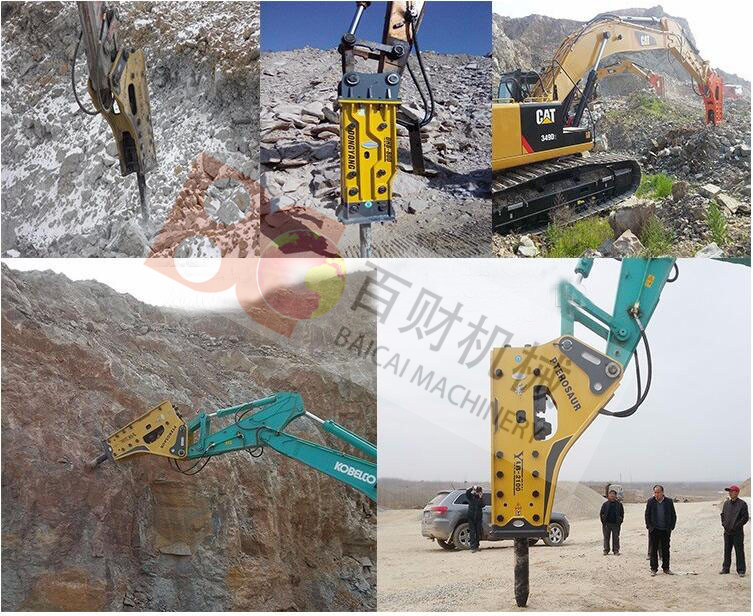

Standard Configurations:* Chisels x 2 pcs* Hydraulic Oil Hoses x 2 pcs* Nitrogen Charging Kit with Pressure Gauge x 1 set* Nitrogen Bottle x 1 pcs* Tool Box with necessary maintenance tools x 1 set* User's Manual x 1 pcs.Application1.Mining: Mountains, mining, crushing, secondary crushing2.Metallurgy, slag cleaning, ladle furnace demolition, demolition equipment foundation body dissatisfied3.Railway, tunnel bridge, mountain down.4.Highway: highway repair, cement pavement broken, foundation excavation.5.Municipal gardens, concrete crushing, gas engineering construction, the transformation of the old city.6.Building: the old building demolition, reinforced concrete broken.7.The ship hull in mussels , derusting8.Other: ice breaking, breaking the permafrost and vibrating sand.
Our company
YANTAI BAICAI Hydraulic breakers, we have three types for your choice: Side Type,Top Open type, and Box Silenced Type.YANTAI BAICAI Hydraulic breakers Advantages:1. High Strength and wear resistance steel plate adopted.2. Suitable with all brands of excavators.3. Strong compatibility.4. Unique valve system. SOOSAN series Hydraulic Breakers adopt simple hydraulic circuit system, which use oil less and improve efficiency more.5. First-class quality: Korean technology used to guarantee the quality.6.Powerful stroke. Compared with other brand's products, SOOSAN series Hydraulic Breakers has more powerful stroke and reliable performances.
Exhibition
Package 1. Inner is stretch film2. Outside is export wooden case3. As per customer's request
FAQ 1. Are you a manufacturer?Yes, our factory was established in 20042. Can you produce according to customers' design?Sure, OEM / ODM service available. We are professional manufacturer for nearly 10 years.3. What's the MOQ and payment terms?MOQ is 1 set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.4. How about delivery time?3-7 working days from the date of receiving full payment.5. After-sale Service14 months warranty for hydraulic breakers. 24 hour prompt after-sales service to meet your demands. 6. OEM accept Yes, we will provide high quality products with competitive price. 7. Impact TestEvery hydraulic breaker will do impact test before sale .Contact InformationPlease tell us your excavator or bachoe loader model,or the hydraulic breaker which you want then I will send you our quotation. Contact: MaggieWebsite: www.yantaibaicai.com
Yantai Baicai Machinery Co., Ltd. Was established in 2004, We are a professional manufacturer for producing hydraulic breakers. Now our factory Mainly produces Soosan System hydraulic breakers, Furukawa system hydraulic breakers and spare parts in China. We supply kinds of Cylinder Assy' to home and abroad.
We sincerely hope that you can join us, we will be glad to support you on quality and technology.
