High Quality Single Mode Fiber Optic Patch Cord with Sc FC LC Connector
| Price: |
US $ 0.95-1.2/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SC/UPC-SC/UPC-SX-SM-3.0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Low Insertion Loss: |
<0.3dB |
| High Return Loss: |
Upc>50dB, APC>60dB |
| Warranty: |
Lifetime Warranty |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

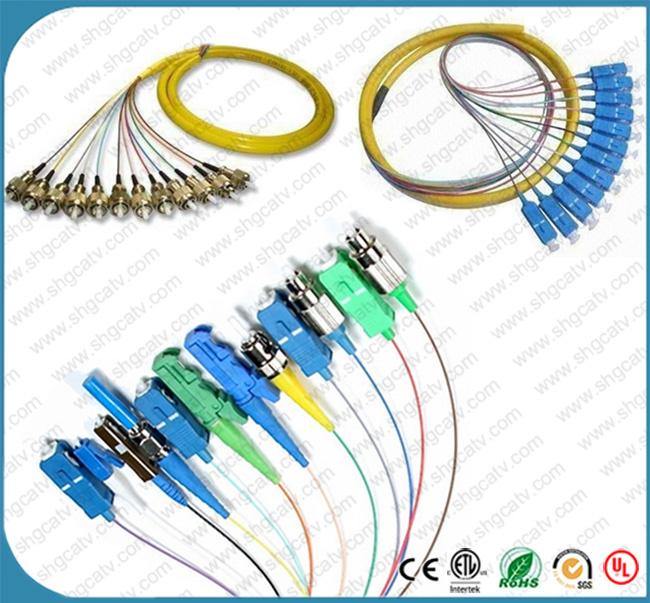

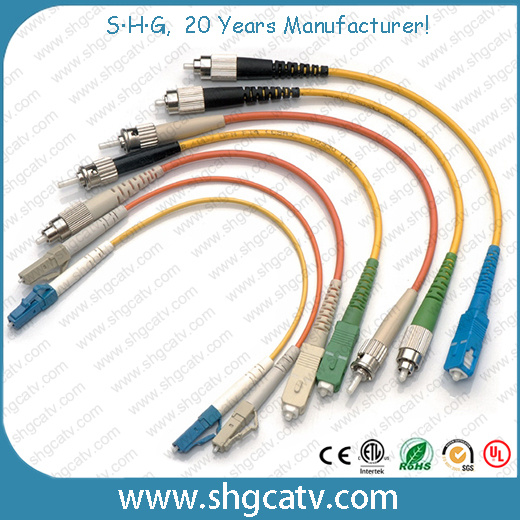

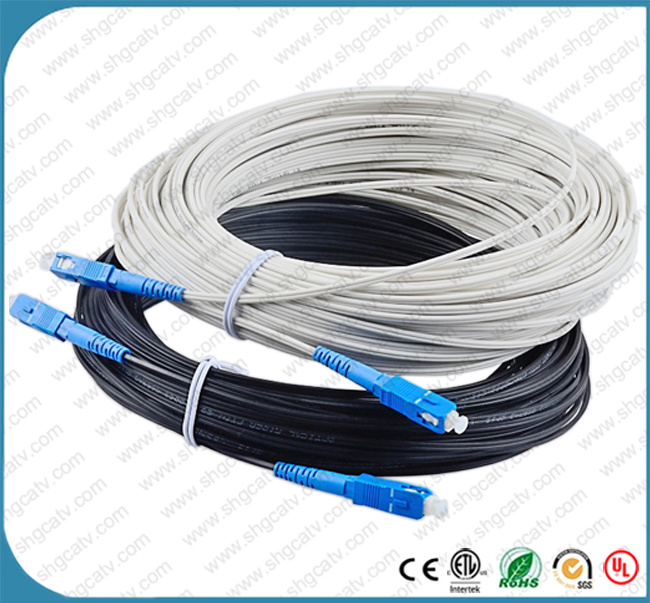

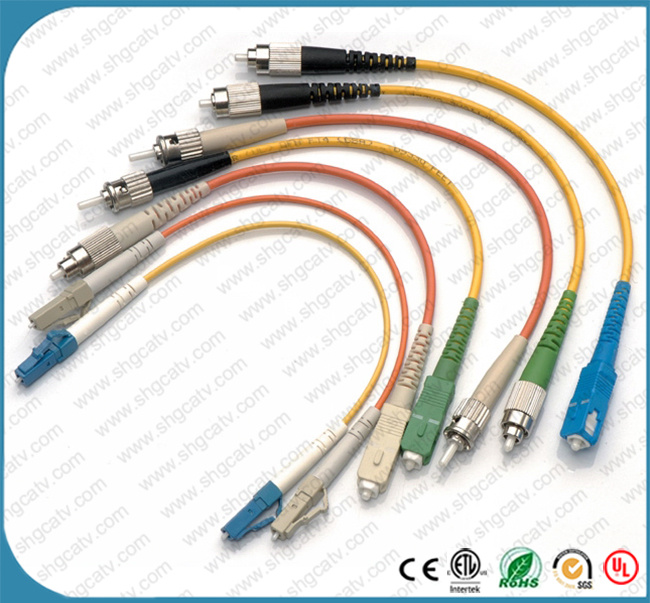

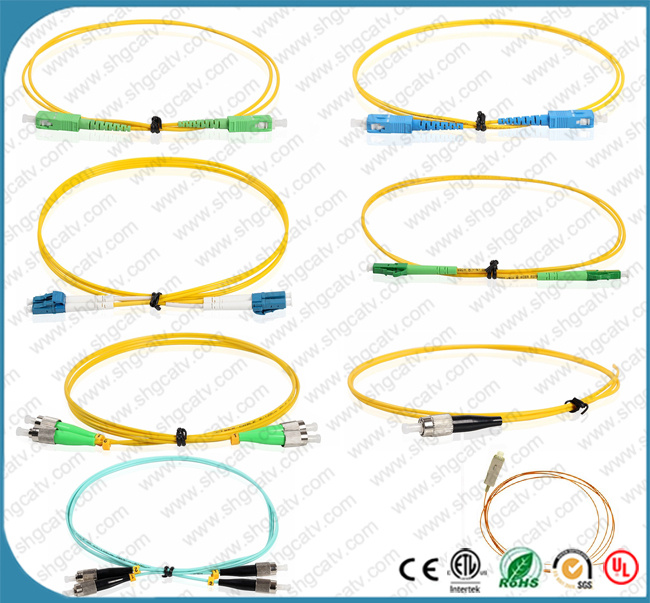

SHG produce high reliablity fiber optical patch cord with SC, FC, LC, ST, MU, MTRJ, E2000 in PC / UPC / APC connectors, single mode / Multimode, simplex / duplex in PVC / LSZH / plenum sheath.
100% tested, low insertion loss, high reliablity.
100% connectors tested, 100% comply to standards.
Features - 100% connectors tested ; - Insertion Loss(SM): Typical<0.2dB, Max<0.3dB ;
- Deliery 100% passed products ; - Return Loss: UPC>50dB, APC>60dB ; - High reliability ; - Repeatability: >1000 times ;
- CE & RoHS compliant ; - Lifetime Warranty
Why choose us:

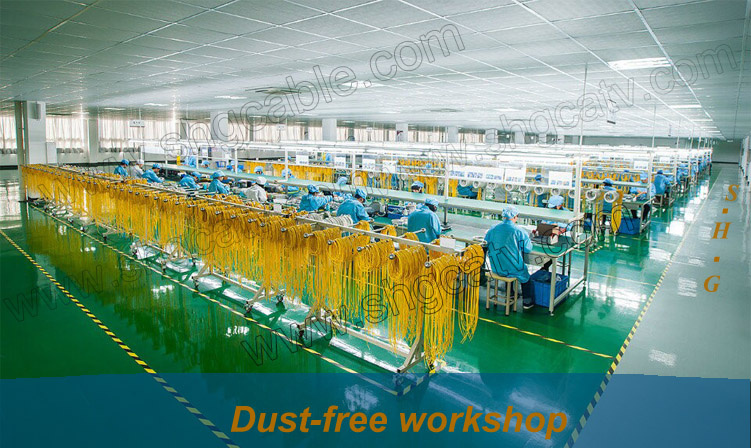

a. First-Class Dust-free Workshop

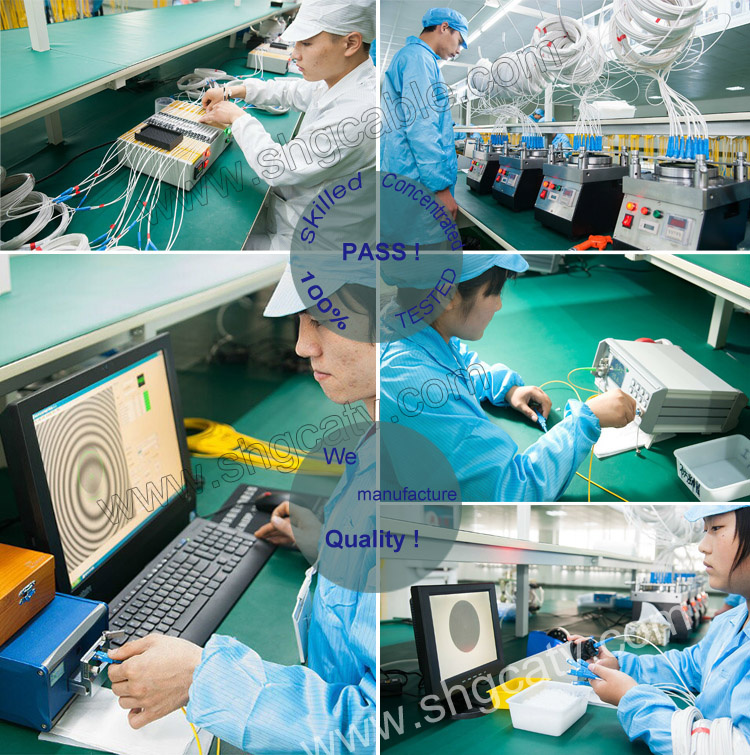

b. Advanced test facilities + Skilled workers + Management = Quality Guarantee !
Ensure you use our products worry-free.
c. Competitive price, save your money.
d . Full range products, offer you one-stop purchase, save your time, save your delivery cost.
Applications
1. Telecommunications
2. Local Area Network (LAN)
3. Fiber to the home (FTTH)
4. Optical patch panels
5. Testing Instruments
6. CATV
Parameters
Single mode (9/125)
Max Insertion Loss: 0.3dB
Minimum Return Loss: PC: 50dB APC: 60dB
Multi mode(50/125, 62.5/125, OM3)
Max Insertion Loss: 0.5dB
Minimum Return Loss: 25dB
Operating temperature: -40 to +75
Storage temperature: -40° C ~ +80° C
Order Information
Cable Material: PVC, LSZH (LSOH), OFNR
Cable Diameter: 3.0mm, 2.0mm, 0.9mm, 3.0*2.0mm, 5.0*2.0mm..
Fiber Type: SM 9/125um, MM 50/125um, MM 62.5/125um, 10G OM3(50/125um)
Polishing: PC, UPC, APC.
Length: 0.2m, 0.3m,.... 100mParameters: | Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 |
| SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC |
| Insertion loss(typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 |
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 |
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
