| Price: | US $ 0.5-50/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | T/T,Western Union,Paypal |
| Prod Model: | YY-Hook |
|---|---|
| Province: | Zhejiang |
| Certification: | SGS |
| Size: | Customized Magnet Size |
| Product Name: | Magnetic Hook |
| Name: | N35-N52 Grade Permanent Neodymium Magnet |
| Tolerance: | 0.05mm |
| Magnetism Direction: | Customzied Specific Requirements |
| Shipping: | UPS, TNT, DHL and etc |
| Coating: | Nickel |
| Grade: | N35-N52 |
| Material: | Sintered Neodymium-Iron-Boron |
| Shape: | Cup Shape |
| Color: | Bright Silver |
| Description: | Super Strong Cup Magnets hook Neodymium pot magnet assembly |
| Features: | Item Name: (permanent magnet hook) Features of permanent magnet hook: 1.Strong magnetic force 2.Ni coated surface to avoid corrosion 3.Can be used in water environment 4.Durable quality For more detail info, please feel free to inquire us at any of your convenience. Application of permanent magnet hook: It is an indispensable tool for climbers, and have gained popularity in the everyday market as key-chains, many carabiners passed out as promotional tools. You may also use those strong magnetic hook to hand bags, dress and so on. Customized design is available to us. Factory direct! |

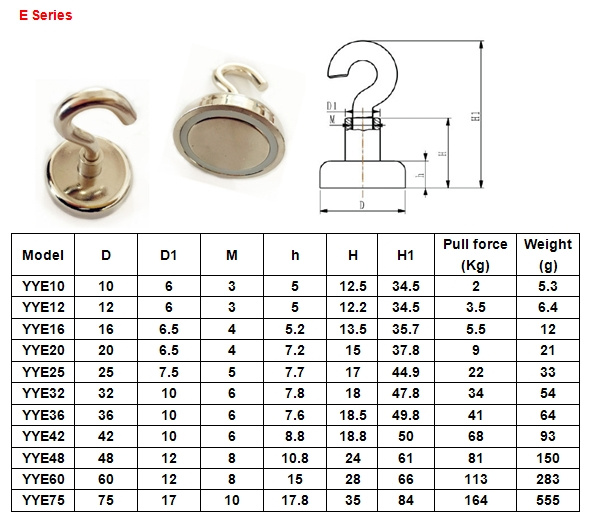

Model | D | D1 | M | h | H | H1 | Attraction (Kg) | Weight (g) |
YYE16 | 16 | 6.5 | 4 | 5.2 | 13.5 | 35.7 | 5.5 | 12 |
YYE20 | 20 | 6.5 | 4 | 7.2 | 15 | 37.8 | 9 | 21 |
YYE25 | 25 | 7.5 | 5 | 7.7 | 17 | 44.9 | 22 | 33 |
YYE32 | 32 | 10 | 6 | 7.8 | 18 | 47.8 | 34 | 54 |
YYE36 | 36 | 10 | 6 | 7.6 | 18.5 | 49.8 | 41 | 64 |
YYE42 | 42 | 10 | 6 | 8.8 | 18.8 | 50 | 68 | 93 |
YYE48 | 48 | 12 | 8 | 10.8 | 24 | 61 | 81 | 150 |
YYE60 | 60 | 12 | 8 | 15 | 28 | 66 | 113 | 283 |
YYE75 | 75 | 17 | 10 | 17.8 | 35 | 84 | 164 | 555 |

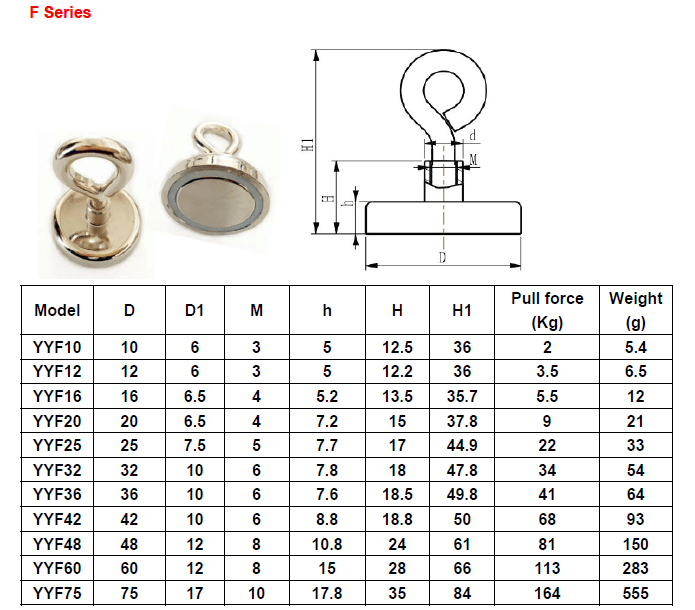

Model | D | D1 | M | h | H | H1 | Attraction (Kg) | Weight (g) |
YYF16 | 16 | 6.5 | 4 | 5.2 | 13.5 | 35.7 | 5.5 | 12 |
YYF20 | 20 | 6.5 | 4 | 7.2 | 15 | 37.8 | 9 | 21 |
YYF25 | 25 | 7.5 | 5 | 7.7 | 17 | 44.9 | 22 | 33 |
YYF32 | 32 | 10 | 6 | 7.8 | 18 | 47.8 | 34 | 54 |
YYF36 | 36 | 10 | 6 | 7.6 | 18.5 | 49.8 | 41 | 64 |
YYF42 | 42 | 10 | 6 | 8.8 | 18.8 | 50 | 68 | 93 |
YYF48 | 48 | 12 | 8 | 10.8 | 24 | 61 | 81 | 150 |
YYF60 | 60 | 12 | 8 | 15 | 28 | 66 | 113 | 283 |
YYF75 | 75 | 17 | 10 | 17.8 | 35 | 84 | 164 | 555 |

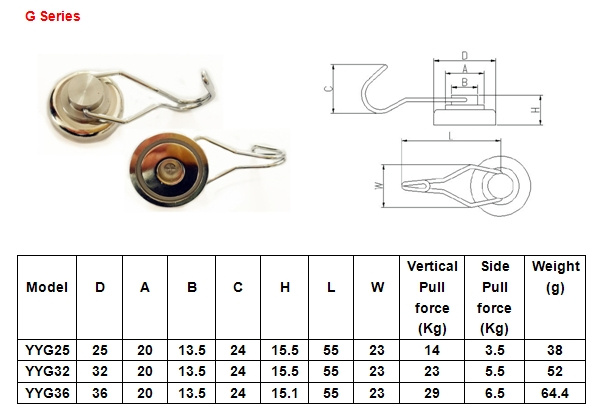

Model | D | A | B | C | H | L | W | Vertical Attraction (Kg) | Side Attraction (Kg) | Weight (g) |
YYG25 | 25 | 20 | 13.5 | 24 | 15.5 | 55 | 23 | 14 | 3.5 | 38 |
YYG32 | 32 | 20 | 13.5 | 24 | 15.5 | 55 | 23 | 23 | 5.5 | 52 |
1.Grade
N35-N52, N35M-N50M, N35H-N48H, N35SH-N45SH, N28UH-N42UH, N28EH-N40EH,
2.Coating
Ni, Ni-Cu-Ni, Zn(Cr3+), Tin, Epoxy, Ni-Ag, Ni-Au, Passivation, Parylene, etc.
3.Production Time
We have materials in stock and continuous produce,about 10-15 days
4.Payment Terms
L/C,T/T,Paypal, ESCROW, Western Union
7.Certification&Quality Control
ISO9001:2008, ISO/TS16949:2009 and RoHS
8.Applications
Motors, Generators, Sensors, Speakers, Earphones and other musical instruments, Magnetic therapy devices, Magnetic Chuck, Magnetic bearings and couplings, NdFeB Pot Magnet and other magnetic applicatications
9. Directions of Magnetization
a. Thickness Magnetized
b. Axially Magnetized
c. Diametrally Magnetized
d.Multi-poles magnetized
e. Radial Magnetized
f. Customzied specific requirements magnetized
The production will be started as soon as we received your payment.

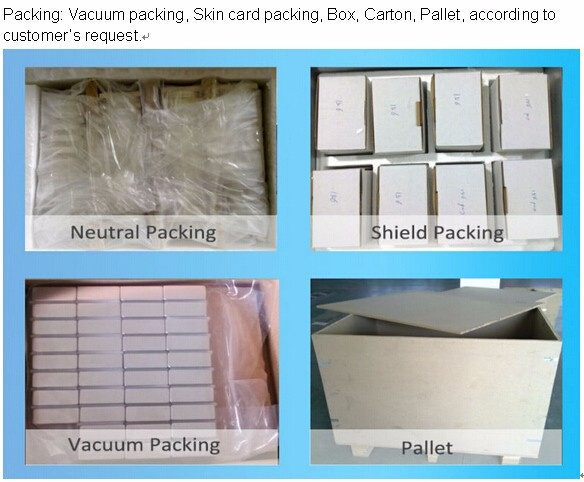

Packing:
As the magnets have strong attraction and we will use the spacer to apart the magnets each other in case people will be hurt when take it out. Then, they will be packed in a white box of pieces each, several boxes to a carton.
+By Air: If the goods will be shipped by air, all the magnetic should be degaussed and we will use Iron sheet to shield.
+By Sea: If the goods are will be shipped by sea, we will place a pallet on the bottom of cartons.
Shipping:
Express (TNT, DHL, FedEx, UPS, etc), Air, Ocean.
a: The weight is under 40Kgs, we recommend to send them in shielding boxes to you by Express.
b: The weight is between 40Kgs-100Kgs, it can be sent by Express or Air.
c: The weight is over 100Kgs, we recommend to send them by Ocean.
FAQ
1. What is normal dimension of your products?
All magnets are customized.
2. What information do I need to supply when I have a inquiry?
If you have any inquiry, please kindly advise the following items:
a. Dimensions or drawing with tolerances.
b. Material grade or magnetic properties.
c. Magnetic direction. c. Magnetic direction.
d. Surface coating (If necessary).
e. Quantity and delivery terms.
3. How long will you give me the reply?
We will reply you in 24 hours.
4. How is the price?
As we believe the quality is the most important, we will provide the high quality magnet with reasonable price.
5. Could I get samples?
Yes, we have materials in stock to help you to get the samples as soon as we can.
6. How long will you deliver sample and bulk order?
If we have materials in our stock, we can send them within 3 days. If we don't have material in stock, production time for sample is 5-10 days, 15-25 days for bulk order.
7. How to pay you?
T/T, Western Union, PayPal.
We will try our best to satisfy you.
Our Service
1.Quick response: we commit to give you immediate detailed quotations with instructions and product material. And customize your required product in the shortest time.
2. High-quality products and favorable price: we reduce material costs through purchase large quantitative of raw materials and other measures from manufacturers directly, which ensure good quality and favorable price of our products, and we share our profit with customers.
3. Closed service: Big or long-term cooperation customers can become our VIP customers and enjoy more competitive prices and VIP service.
They love us:
1. Professional factory, 6 years gold supplier and Trade Assurance supplier in Alibaba.
2. More than 10 years experiences for magnet and export, we can supply technical support and develop projects with customers together.
3. High quality products, we have advanced equipment and good quality system to ensure the products quality.
4. Competitive prices and quickly delivery.
5. Good service. Usually we will reply customer within 24 hours.
6. Various payment way.
