| Prod Model: |
MJ2662 |
| Machine Item: |

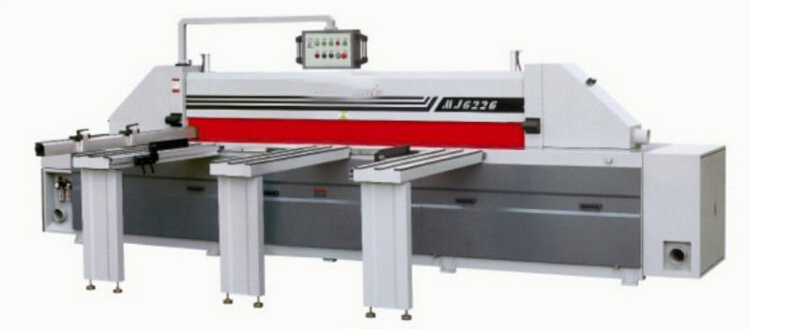

High Quality Woodworking Machine Reciprocating Pan |
| About Agent: |
Look Forward Agent |
| Price: |
Our Most Favorable Price for You |
| Quality: |
Our Best Quality for You |
| Voltage: |
380V or as Customer Needs |
| Delivery Detail: |
20 Days |
| Board Feeding Type: |
Rear Feeding |
| Power: |
12.5kw |
| Max.Cutting Length: |
3200mm |
| Warranty: |
12 Months |
| Type: |
Circular Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
FDA |
Product Description
1,Woodworking machinery:Panel saw is any type of sawing machine that cuts sheets into sized parts. Panel saws are used by cabinet shops to easily cut plywood andmelamine sheets into cabinet components. They are also used by sign shops to cut sheets of aluminum, plastic and wood for their sign blanks. Panel saws typically fall into one of two categories: Horizontal and Vertical. Some higher end panel saws feature computer controls that move the blade and fence systems to preset values. Other lower end machines offer simplicity and ease of use.1,Saw Blade Automatic Reture System : Automatically accord the saw blade travel stroke to different length of the panel , the saw blades can be automatically reset to ready for the next round of cutting. Greatly improve the efficience.
2,Include one set of main saw blade and score saw blade, the front score saw blade can be adjusted up and down, suit for various cutting requirement of different panel material 3,Double Guild Rail: Adopt double guild rail to both side, improve the cutting precision and stability.
4,Stepless Feeding Device: Frequency control of feeding speed for cutting adapt to the panel of different material.
5,Steel Ball Floating Platform: Independent fan supply air for floating the steel ball, this feeding worktable can protect the panel surface and let feeding easily, suit for heavy type and big wood panel.
6,Three- stage Feeding Platform: Three senctions of the workbench can be move parallelly and positioned by cylindrical guide rail.
2,Technical parameters
| Model | MJ2662 |
| Max.cutting length | 3280mm |
| Max.cutting thickness | 76mm |
| Diameter of main saw blade | Φ460mm |
| Diameter of scoring saw spindle | Φ180mm |
| Main saw rotating speed | 4200rpm |
| Scoring saw rotating speed | 6500rpm |
| Saw carriage forward speed | 0-37m/min |
| Saw carriage backward speed | 67m/min |
| Main saw motor | 11kw |
| Automatic feeding speed | 50m/min |
| Overall dimension(L*W*H) | 5830*3950*1700mm |
| Total power | 12.5KW |
3,All the models| Model | MJB1327A | MJB1327B | MJB1327A | MJB1327B |
| Max.cutting length | 2680mm | 3300mm | 3300mm | 3280mm |
| Max.cutting thickness | 76mm | 120mm | 120mm | 90mm |
| Diameter of main saw blade | Φ460mm | Φ460mm | Φ460mm | Φ400mm |
| Diameter of scoring saw spindle | Φ180mm | Φ180mm | Φ180mm | Φ180mm |
| Main saw rotating speed | 4200rpm | 3910rpm | 3910rpm | 4200rpm |
| Scoring saw rotating speed | 6500rpm | 4150rpm | 4150rpm | 6500rpm |
| Saw carriage forward speed | 5-37m/min | 5-80m/min | 5-80m/min | 9-50m/min |
| Saw carriage backward speed | 67m/min | 100m/min | 100m/min | 100m/min |
| Main saw motor | 11kw | 18kw | 18kw | 15kw |
| Overall dimension(L*W*H) | 5830*3950*1700mm | 5830*3950*1700mm | 5230*3950*1700mm | 5230*3950*1700mm |
| Total power | 12.5 KW | 12.5 KW | 12.5 KW | 12.5 KW |

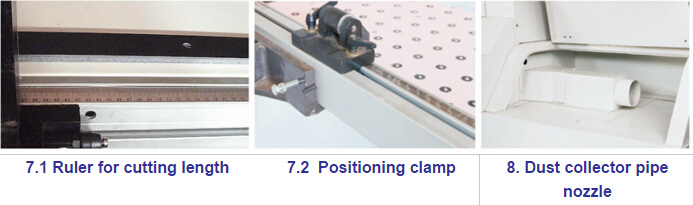

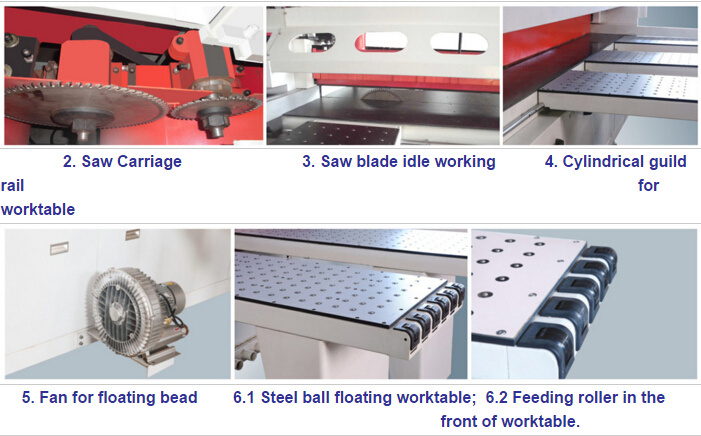

4,Some details of pictures for you:
5,Finished products for you:

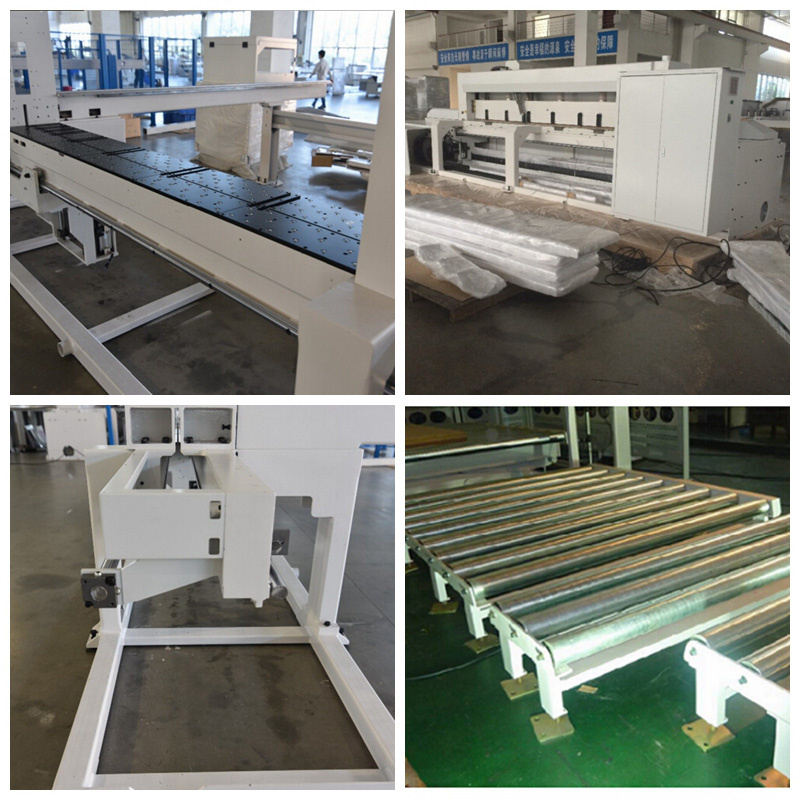

6,Our working shop for you:

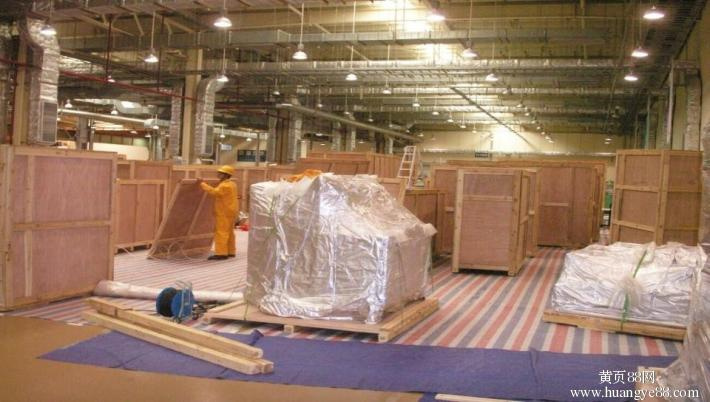

7,Wooden box packaging
8,Here we promise these :1:One stop service for all kinds of woodworking machines for you
2, high cost performance with reasonable price and our best quality
3:15-20 days delivery time
4:Excellent after-sale services
5:24 hours technical support through email or calls.
6:Not only business, hope to make good friend with you
For further information about machine or price or other service , plz contact with us by email or QQ or wechat
Your enquiry are always warmly welcomed
