| Prod Model: |
K10 |
| Rated Power: |
200W/8ohm |
| Sensitivity: |
96dB |
| Max Spl: |
106dB |
| Product Size: |
506*284*291 |
| N.G: |
10.5kg |
| Frequency Response: |
60Hz-19 kHz |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CCC |
| THD: |
<0.005% |
| Monitor: |
No Scrooen |
Product Description
Features:★ "Treble accurate, bass powerful"
★Double treble combination, strong bass strong;
★Applications: discount KTV places, small music classrooms;
The main technical parameters:Rated power: 200W;
Maximum input power: 400W;
Impedance: 8Ω;
Frequency response: 60Hz-19KHz;
System type: double treble 3 unit speaker system;
Tweeter: 77 mm (3 inch) Conical diaphragm woofer x 2;
Woofer: 250 mm (10 inch) cone diaphragm woofer x 1;
Maximum sound pressure level: 106dB;
Sensitivity: 96dB / W (lm);
Hanging hardware: 2 × M10 hanging point;
Material and surface treatment: MDF, PVC paste skin, ABS plastic panel;
Colour: Black;
Packaging & Shipping★Product Size: 506 * 284 * 291 (unit: mm);
★Net Weight: 10.5kg / pcs
★Gross Weight: 21kg
Payment termSmaple:T/T 100% deposit before delivery.
Mass production: T/T 30%deposit in advance
Delivery timeSample:3 days
Mass production:5-7 day,depand on quantity

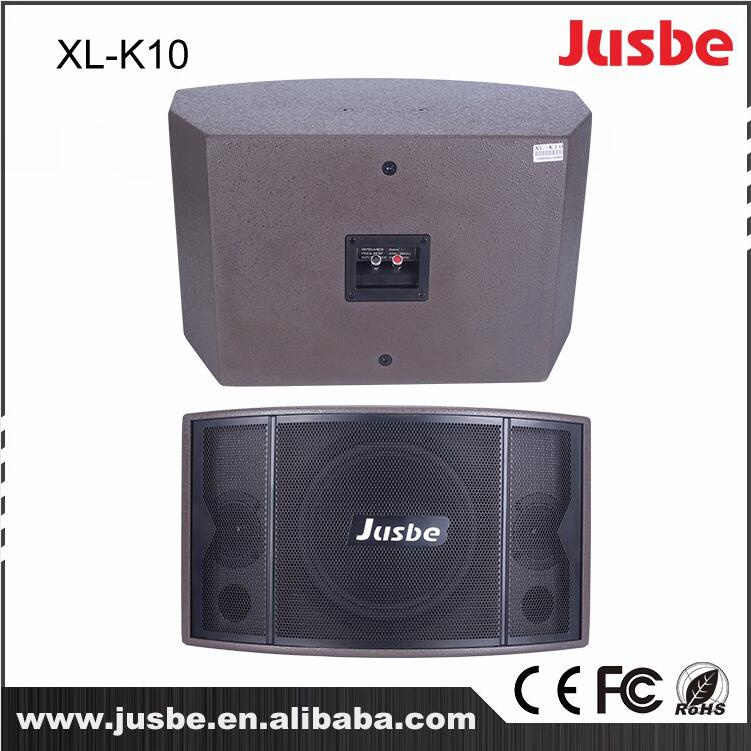

| Item | XL-K10 | |
| Rated Power | 200W | |
| Peak Power | 600W | |
| Impedance | 8Ω | |
| Frequency Response | 70Hz-20KHz (±3dB) | |
| System Type | 10-inch two way two units | |
| Tweeter Unit | 3-inch tweeter*2 | |
| Woofer Unit | 10-inch woofer *1 | |
| Sensitivity | 95dB/1W/1M | |
| Max SPL | 123dB | |
| Body Type | inverse-phase type | |
| Body material | 15mm multilayer composite plywood & High Density Fiberboard | |
| Exterior | steel mesh | |
| Installation | Right side:10cm pitch-row, two M8 suspending points | |
| Top | two M8 suspending points | |
| Power Amplifier Selection | 300W/8Ω~400W/8Ω | |
| Color | black | |

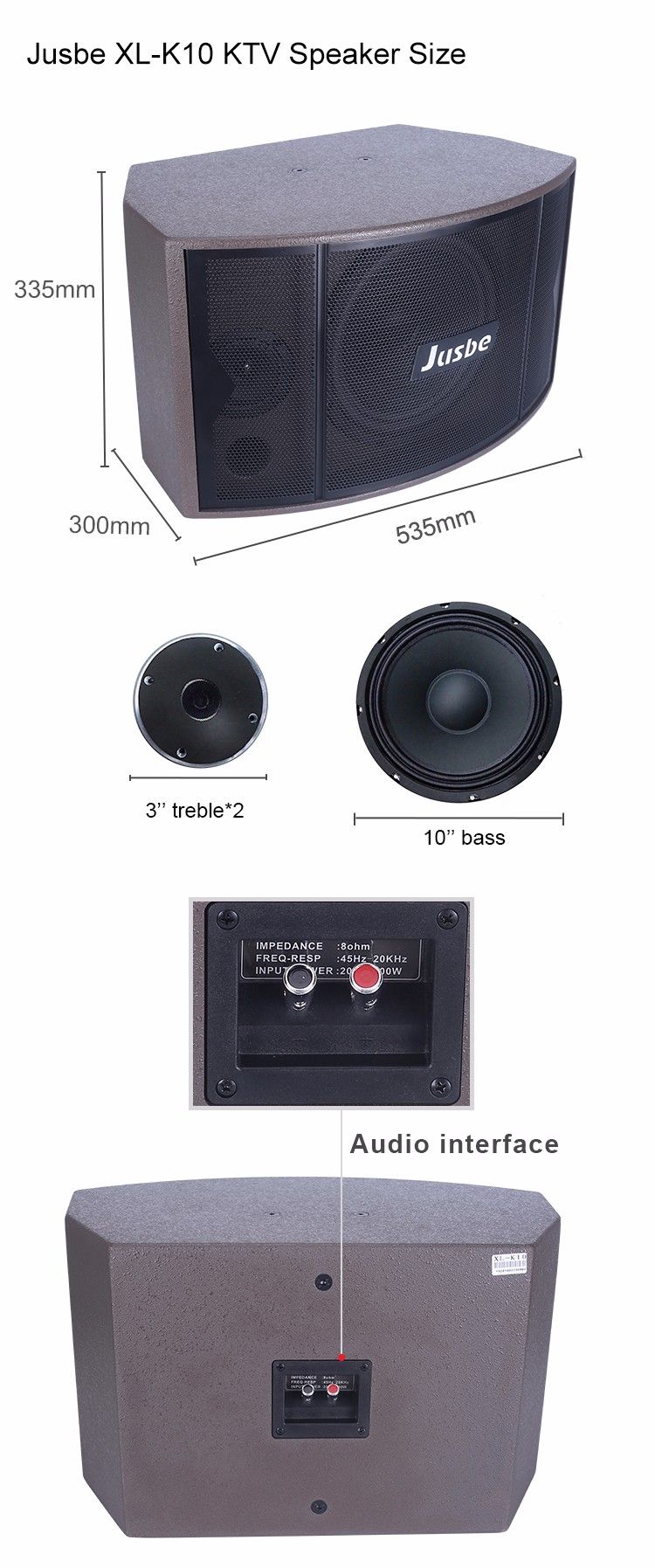

| Product Size(mm/set) | 535*300*335 | |
| N.G.(KG) | 12.5 | |
FAQ
1.Q: Are you a factory or trading company?
A: We are a manufacturer (with our own factory) since 2000. We are a leading manufacturer, exporter and supply chain service provider on professional audio system.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.
About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !
3.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
We have professional research development team, develop the products according to customer required.
Guangzhou Jusbe Electronics Technology Co. Ltd. was established in 2002. For 14 years, we have been dedicated in the field of Professional audio system industry. As the solution supplier and manufacturer of Audio system, we're using artificial intelligence to change the world step by step: Amplifier, speakers, microphone, line array series, peripheral equipment, mixer...
Our factory covers 10 thousand square meters, including 2 main workshop(professional audio products workshop, teaching audio products workshop) and accessory workshop. In order to provide our clients with high performance products in competitive price, we import ISO9001 Quality Management System, ISO14000 Environment Management System and SRRC System to our factory. What's more, there're nearly 300 marketing staff, 30 branches all over the country.
In order to meet the global trend, our brand Jusbe has been registrated in USA, Hongkong. In the meantime, we have built strategic relationship with 20 excellent global partners.
It's rarely to find such a manufacturing basement of large scale and multiple systems. Relying on 15 major series and more than 1000 products, we're confidence to provide our clients from various area with complete and individual solution. For now, it's proud to say that we have 100 thousand successful cases worldwide and our clients're satisfied with them.
Our products have been applied to many important events or buildings, such as Google experience center, China Telecom, Guangzhou South Railway Station, Hengda Real Estate Group etc.
