| Prod Model: |
591003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: |
Sand Blast |
| Diameter: |
3.0mm-32.0mm |
| Brand: |
Kseibi |
| Process: |
Milled Flutes |
| Application: |
Concrete |
| Package: |
Every Piece in a PVC Bag |
| .Material: |
Carbon Steel,Tct in Head |
| Concrete Drill Bits: |
Carbide Tip |
| Working Length: |
30-550mm |
| Overall Length: |
60-600mm |
| Type: |
Concrete Drill Bits |
| Use: |
Concrete Drilling |
Product Description
Packaging & Delivery

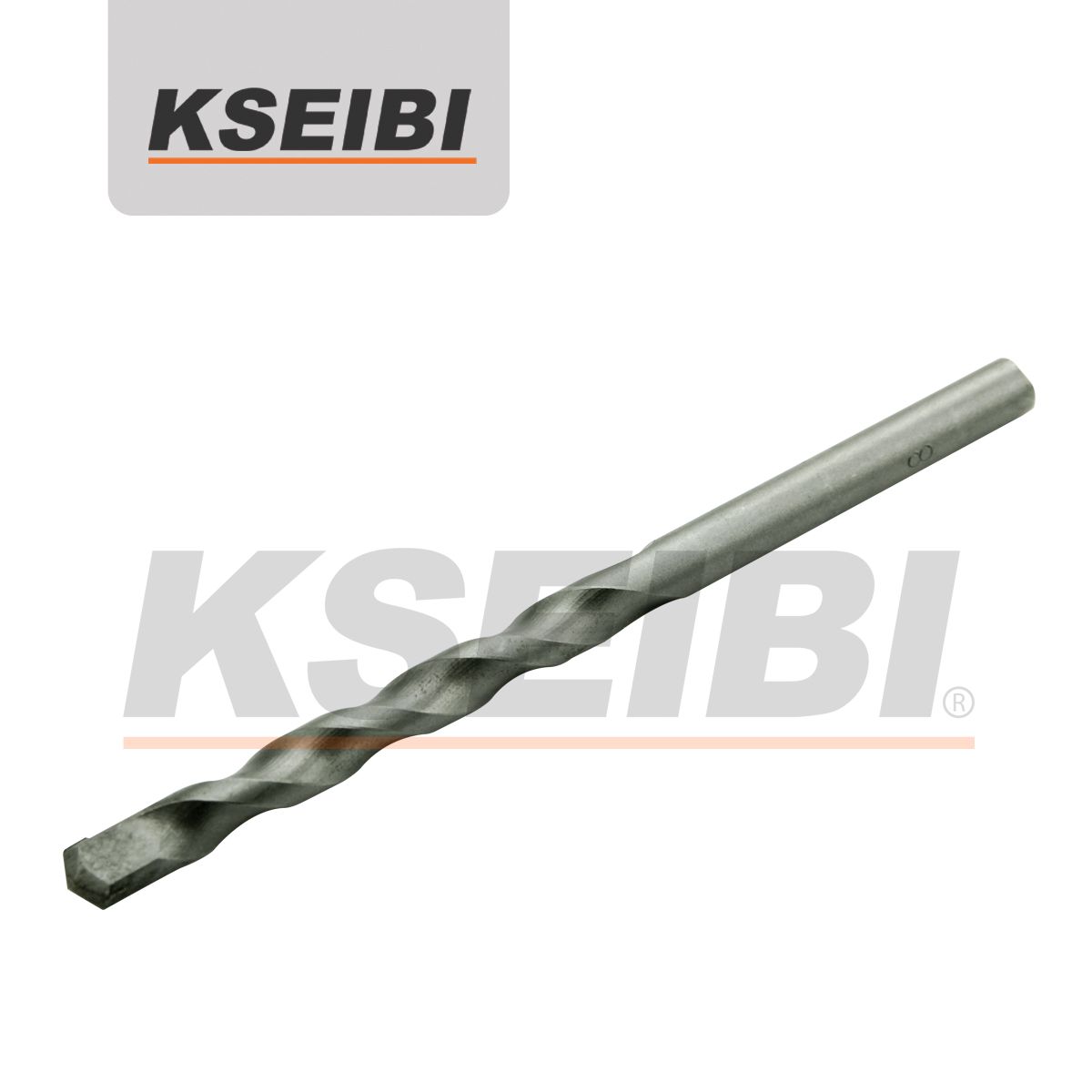

Concrete Drill Bits
Diameter | 3.0mm-32.0mm |
| Material | High Carbon Steel, CR40 |
| Process | Milled |
| Surface treatment | SANDBLASTED / CR-COATED / ZINC COATED |
| Point angle | 118 or 135 split point |
| Application | For Concrete, Marble,Granite,Stone Drilling |
| KSEIBI package | Every one piece in a KSEIBI PVC bag
|
Packaging Detail: | Every piece in a KSEIBI PVC bag |
| Delivery Detail: | 45 days or 60 days |
Specifications
Material high carbon steel
Process milled flutes
Concrete drill bits carbide tip
Product Description
Concrete Drill Bits
1.Material : high carbon steel,carbon steel,TCT in head
2.surface treatment : sand blast
3.Diameter : 3.0mm-32.0mm
4.Working length : 30mm,40mm,50mm,60mm.80mm,90mm,95mm,100mm,140mm,350mm,550mm
5.Overall length : 60mm,75mm,85mm,100mm,120mm,150mm,160mm,200mm,400mm,600mm
6.Brand : KSEIBI
7.process : milled flutes
8.Application : concrete
9.Packing : Every piece in a PVC bag
| Article No. | Diameter | Working Length | Overall Length |
| mm | mm | mm |
| Standard length |
| 591003 | 3.0 | 30 | 60 |
| 591006 | 4.0 | 40 | 75 |
| 591009 | 5.0 | 50 | 85 |
| 591012 | 6.0 | 60 | 100 |
| 591015 | 7.0 | 60 | 100 |
| 591018 | 8.0 | 80 | 120 |
| 591021 | 9.0 | 80 | 120 |
| 591024 | 10.0 | 80 | 120 |
| 591027 | 12.0 | 90 | 150 |
| 591030 | 13.0 | 90 | 150 |
| 591033 | 14.0 | 90 | 150 |
| 591036 | 16.0 | 90 | 150 |
| 591039 | 18.0 | 95 | 160 |
| 591042 | 20.0 | 95 | 160 |
| 591045 | 22.0 | 95 | 160 |
| 591048 | 24.0 | 95 | 160 |
| 591051 | 25.0 | 95 | 160 |
|
|
|
|
| Total length 150mm |
| 591054 | 5.0 | 100 | 150 |
| 591057 | 6.0 | 100 | 150 |
| 591060 | 7.0 | 100 | 150 |
| 591063 | 8.0 | 100 | 150 |
| 591066 | 9.0 | 100 | 150 |
| 591069 | 10.0 | 100 | 150 |
|
|
|
|
| Total lengrh 200mm |
| 591120 | 5.0 | 140 | 200 |
| 591123 | 6.0 | 140 | 200 |
| 591126 | 7.0 | 140 | 200 |
| 591129 | 8.0 | 140 | 200 |
| 591132 | 9.0 | 140 | 200 |
| 591135 | 10.0 | 140 | 200 |
| 591138 | 12.0 | 140 | 200 |
| 591141 | 13.0 | 140 | 200 |
| 591144 | 14.0 | 140 | 200 |
| 591147 | 16.0 | 140 | 200 |
| 591150 | 18.0 | 140 | 200 |
| 591153 | 20.0 | 140 | 200 |
| 591156 | 22.0 | 140 | 200 |
| 591159 | 24.0 | 140 | 200 |
| 591162 | 25.0 | 140 | 200 |
|
|
|
|
| Total length 400mm |
| 591213 | 6.0 | 350 | 400 |
| 591216 | 7.0 | 350 | 400 |
| 591219 | 8.0 | 350 | 400 |
| 591222 | 9.0 | 350 | 400 |
| 591225 | 10.0 | 350 | 400 |
| 591228 | 12.0 | 350 | 400 |
| 591231 | 13.0 | 350 | 400 |
| 591234 | 14.0 | 350 | 400 |
| 591237 | 16.0 | 350 | 400 |
| 591240 | 18.0 | 350 | 400 |
| 591243 | 20.0 | 350 | 400 |
| 591246 | 22.0 | 350 | 400 |
| 591249 | 24.0 | 350 | 400 |
| 591252 | 25.0 | 350 | 400 |
| 591255 | 26.0 | 350 | 400 |
| 591258 | 28.0 | 350 | 400 |
| 591261 | 30.0 | 350 | 400 |
| 591264 | 32.0 | 350 | 400 |
|
|
|
|
| Total length 600mm |
| 591315 | 7.0 | 550 | 600 |
| 591318 | 8.0 | 550 | 600 |
| 591321 | 9.0 | 550 | 600 |
| 591324 | 10.0 | 550 | 600 |
| 591327 | 12.0 | 550 | 600 |
| 591330 | 13.0 | 550 | 600 |
| 591333 | 14.0 | 550 | 600 |
| 591336 | 16.0 | 550 | 600 |
| 591339 | 18.0 | 550 | 600 |
| 591342 | 20.0 | 550 | 600 |
| 591345 | 22.0 | 550 | 600 |
| 591348 | 24.0 | 550 | 600 |
| 591351 | 25.0 | 550 | 600 |
| 591354 | 26.0 | 550 | 600 |
| 591357 | 28.0 | 550 | 600 |
| 591360 | 30.0 | 550 | 600 |
| 591363 | 32.0 | 550 | 600 |
We can make other size as your requirement and as our promise, we make sure the perfect quality and competitive prices.
