| Prod Model: |
DeHaZ2004-PA-GD |
| Finish: |
Painted |
| Unlocking Way: |
Card, Key and Password |
| Deadbolt For Privacy Lock: |
Yes |
| Panel And Handle Material: |
Zinc Alloy |
| Cylinder: |
Zinc Alloy |
| Data Storage Types: |
Offline |
| Battery: |
4-AA Batteries Included |
| Plate Size: |
280*75mm |
| Handle Size: |
111 mm |
| MOQ: |
100 |
| Material: |
Zinc Alloy |
| Type: |
Electronic |
| Style: |
Modern |
| Shape: |
Mortise Door Lock |
| Anti-theft Standard: |
A |
| Part: |
Lock |
| Usage: |
Hotel/Office/Home/Apartment |
| Backset: |
62.5mm |
| Door Thickness Fits: |
38-50 mm |
| Lock Cylinder Length: |
Customized |
Product Description

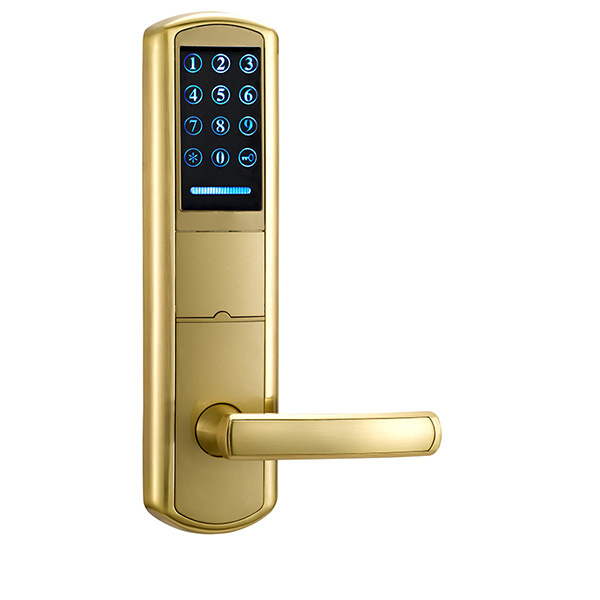

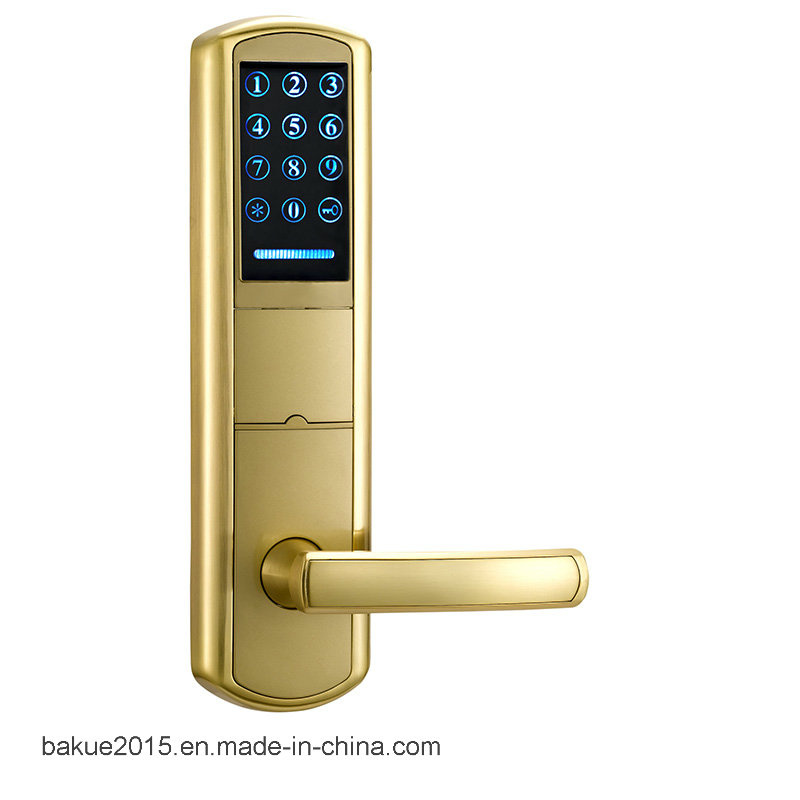

High Security Entry Keyless Electronic Digital Password Door Lock
I.SPECIFICATIONS1.Using RFID,IC card-125Khz or M1 card 13.56Mhz unlocking the door.2.Metal panel, anti-oxidation surface treatment, durable use.3.Free handles design which prevent vandalism.4.Unique hidden mechanical key hole design. 5.ANSI standard five latches structure guarantee security.6.False-closing alarm: light and voice warning when incomplete closing.7.Compact lock body structure, good mechanical linkage.8.Circuit board: microcomputer chip control, more stable.9. Low working voltage alarming function.10.Automatic anti-false, Being able to distinguish the RF copied or forged.| Item No | DeHaZ2004-PA-GD |
| Material | Zinc Alloy |
| Finishing | Painted |
| Dimension | 280*75mm*111mm |
| Center Distance of Lock Body | 62.5 mm |
| Fits Door Thickness | 38-50 mm |
| Lock Body | Steel (optional) A Mortise Lock Body |
| Cylinder | Zinc alloy cylinder, extra US$0.50 is needed if change to brass cylinder |
| Door Handling | Specify Right or Left When Ordering |
| Keys | 2 Pieces Brass Mechanical Keys |
| Security Grade | ANSI/BHMA Grade 2 Security |
| Hotel Lock System Components | Door Locks, Encoder For Key card, RF Cards, Energy Saving Switch, Data Collector, Management Software |

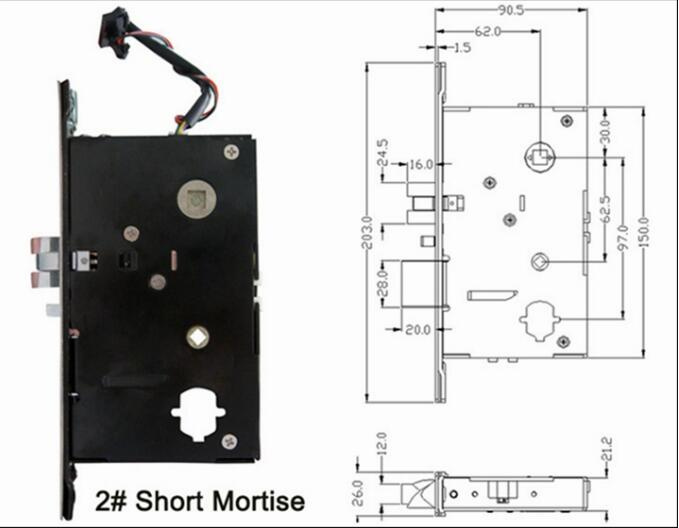

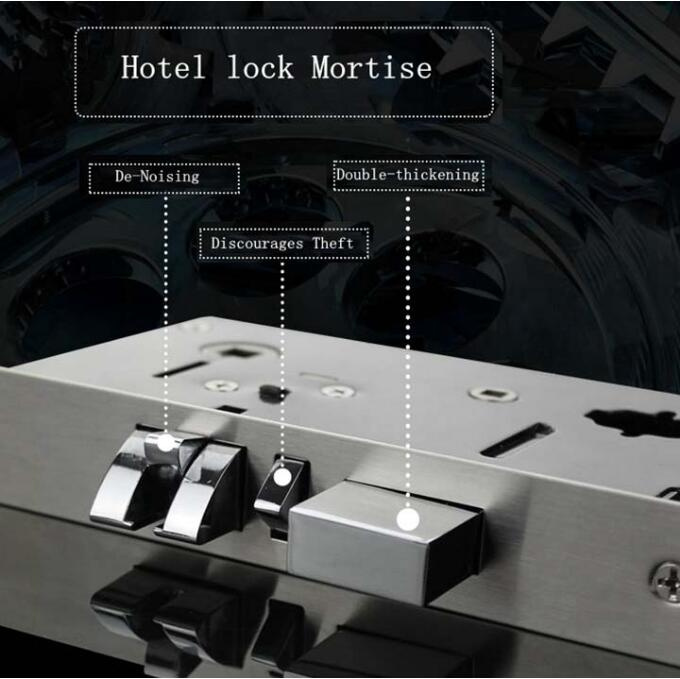

Hotel Lock Mortise
Powerful ANSI standard mortise with anti-theft, Interior-lock function. Can be used for most of wood doors.
[Warm tips] Our hotel door lock meet thickness between 38mm~ 60mm, if over 60mm, please advise us in advance

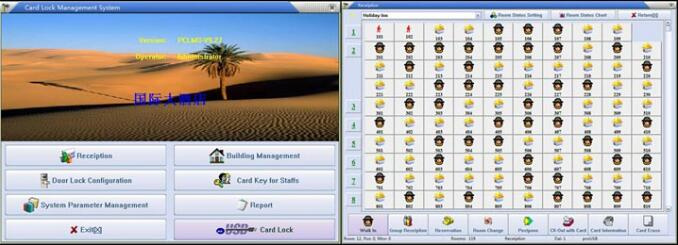

Software Interface
Work with card encoder, you can easily set locks and manage cards on the computer. When Guests come to check in, receptionist programs guest card from front desk. Then the guest can walk to the appointed room to open the lock directly.

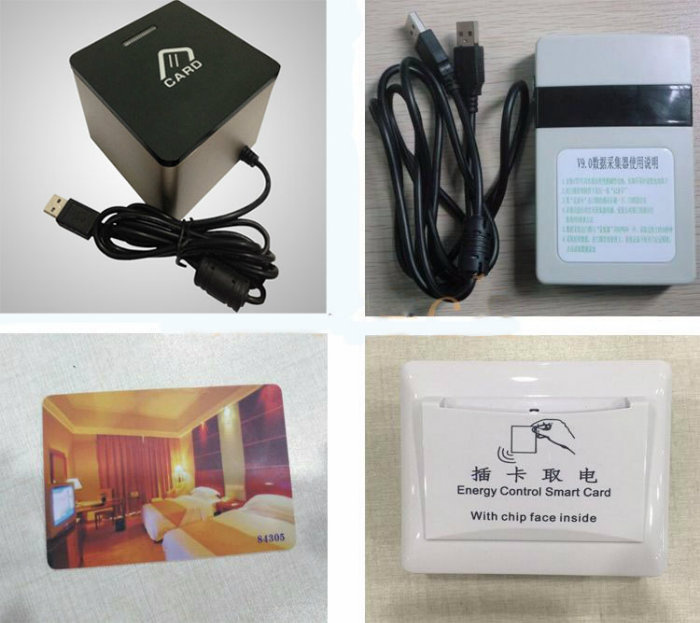

1. USB Card Encoder for hotel door lockConnect with the Computer of hotel front desk by usb port, worked with door lock managerment software to issue cards.2. Data collector for hotel door lockYou can use this equipment to collect opening records from the hotel lock, connect with door lock management software through USB ports to download the opening records from this data collector.When some stuff lost, you can easily figure it out that who have got into the hotel room.3. RFID Card for hotel door locks.Our hotel door lock works with RFID, Mifare 1 Key cards, it can be 125Khz by default, if you choose M1 card, it with high frequency of 13.56Mhz. If you don't need software, we can off you the lock works with ID cards, you can program cards on the lock directly.4. Energy Saving switchUsed to gain power when gust enter the room and save electricity when the guest leave the hotel room.When the guest opens the hotel door lock, insert guest card into Energy Saver to get the power, Very convenient.
Basic (necessary) components of hotel ock include:· Card encoder ---program all kinds of cards
· Software ---management system, disc to be installed to computer
· Computer ---used to install lock management software, prepared by hotel
· Card --- 125khz Termic Card or 13.56MHz MF 1 card (it can be key tag or wristband)
· Lock --- installed onto the door
Optional components of hotel door lock include:
· Data collector --- used to collect the unlocking records from the locks.
· Energy saving switch --- use the key card to turn on lighting
· Elevator controller --- control the elevator access of the key card
· Room Display --- display the room number, hotel logo etc IV.OUR ADVANTAGE1. Bakue Commerce Co.,Ltd. is one of the leading companies specializes in indoor construction and decoration products like hardwares, bathroom accessories, lights, floor boards, curtains etc which can provide the one-stop service to match the various demands of our customers worldwide.
2.Our products are world-class, with truly remarkable technology and top quality.
3.Bakue has became a famous brand of indoor construction and decoration products in China relying on its advanced equipments, technicians, skillful workers, successful marketing and management. Bakue brand is more and more well-known in many countries .
4. Small orders of OEM or ODM are available.
Tell us exactly what you want, We will find out the most suitable products meets your project specifications!
With Bakue you can be sure what you want!
With the background of 25years experience and some years development in the field of indoor construction and decoration industry, Bakue has become an influential leading company in China, more and more customers worldwide have been choosing Bakue to be their reliable and long-term business cooperation partner.
What the core competencies and main history in Bakue are:
1. The headquarter of Bakue has brought into the high-tech developing area at Songshan lake Dongguan City China.
2. Bakue had formed one-stop service business philosophy to be a professional supplier, providing the comprehensive construction and decoration products to our customers with less time consuming and more economical on purchasing.
3. Bakue had built up a complete and feasible quality control system to ensure our products can match the demands of our customers.
4. Bakue has its own factories and has been integrating the excellent Chinese factories to be our strategic cooperative partners.
5. Bakue has the advantages of producing the customized products for our various customers.
