| Prod Model: |
ND-1001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Silver, Black, Colorful |
| Net Weight: |
1.5kg |
| Battery: |
Ni-MH |
| Output Voltage: |
14.4V |
| Noise: |
Lower Than 75dB |
| Battery Charging Time: |
3 Hours |
| Package: |
Aluminum and Carton Box |
| Input Voltage: |
220V 50Hz or 110V 60Hz |
| Rise In Temperature: |
Lower Than 25 Centigrade |
| For Animal: |
Pets |
Product Description

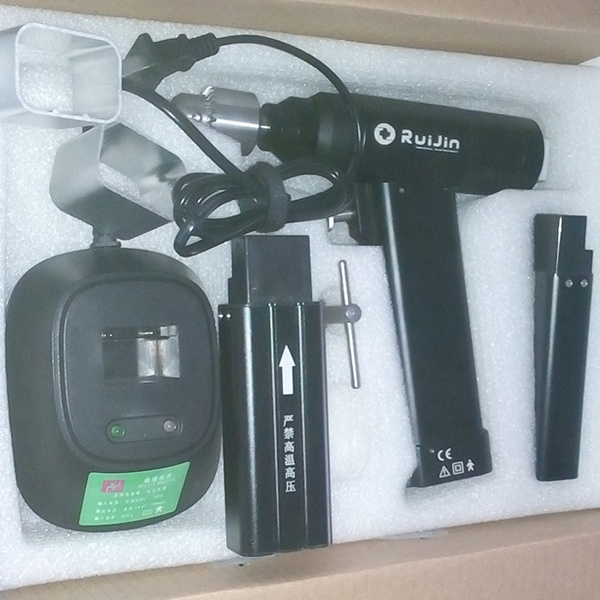

High speed high torque low noise bone drill orthopedic traumatic amputation catagma fractura articular joint ossium surgery
All medical instruments and devices are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, neurosurgery operations. K wires or be used in intermediary interlocking nail surgery or arthroscopic surgery. Whole unit is autoclavable, imported motor ensure low noise, high speed, high proper alignment, long service life, the machine is warranty for 12 moths. Can adopt various flexible reamer, chuck easily during the process of surgery.
I Common merits
1) Autoclavable to 135 ° C with 1.6mpa, in which way the bacilli and virus will be killed
2) NI-MH battery will be friendly to human environment
3) Whole power is steady with low noise in operation
4) 12 months warrant for our products mainframe
II Merits for mainframe
1) handpiece can drive a variety quick connects
2) attachments can be replaced easily
3) 360° Rotating
4) high-strength stainless steel makes main parts
III Merits for multifunction system
1) Mainframe is made of Aluminium, light weight, durable, long working time
2) Jacobs chuck ensures outstanding performance during operation
3) Sternum saw: Both 360° Rotating head and blade guard can protect soft tissue around sternum
4) Craniotomy mill: 40000r. P. M rates assures fast, effient and safe process in craniotomy
5) Oscillating saw: 360° Rotating head can be applied to any surgical
Sites. Wrenchless collect allows for easy, fast and safe loading and unloading blades
6) Reamer: Hi-torque, ideal for acetabulum or medullary operation available to all brands mill universal
7) Wire and pin chuck: With a canula diameter 4.0mm applied to various intramedullary pin or
Kirschner pin fixing opration easily and convenientiy
8) cranial drill: Auto-pause offer perforation ensures safety in neurosurgery.
10) Perfect ergonomic design
11) can meet different kinds of surgery operation
Company Information
Wuhu Ruijin Medical instrument&device Co., ltd. Established in 2007
Major in production of medical electric saw series, medical bne drills, cannulate drills,
Swing saws, reciprocating saws and medical electric plaster saws
And also micro-electric grinding drill series etc.
They are mainly applied in orthopedic, traumatic, neurousurgery operations
Wuhu RuijinMedical Instrument & Devices Co., Ltd
Add No. 33, Wanchun Road, Wuhu Economic &Technology Development zone, Wuhu city Anhui Province, P. R. C
Website: www.livespower.com
http://medical-devices.en.alibaba.com/
Tel: (86-553)-5223845
Fax: (86-553)-5223846
| Hand piece | working voltage | 14.4 V |
| Ooutput power | ≥ 20 W |
| unit rise in temp | ≤ 25°C |
| Charger | Input voltage | AC 220V,50HZ/ 110V,60HZ |
| Output power | 14.4v 900ma |
| Input power | 30 W |
| Battery | voltage | 14.4 V |
| charging time | 3 hours |
| product | speed | noise | diameter run-out | torque |
| Normal bone drill | 0-1300 r/m | ≤ 65db | ≤ 0.5mm | ≥ 1.6NM |
| Cannulated bone drill | 0-600 r/m | ≤ 65db | ≤ 0.5mm | ≥ 3.5NM |
| Oscillating saw | 0-18000 osc/m | ≤ 75db | | |
| AcetabulumSlow drill | 0-300 r/m | ≤ 65db | ≤ 0.5mm | ≥ 6.5NM |
| Sternum saw | 0-15000 ocs/m | ≤ 75db | | |
| Craniotomy drill | 0-900 r/m | ≤ 40db | | |
| Craniotomy mill | 0-40000 r/m | ≤ 40db | | |
| Grinding drill | 0-40000 r/m | ≤ 65db | | ≥1.25NM |
Wuhu Rui Jin medical equipment was established in 2007, is located in the economic prosperity of the Wanjiang Pearl ---- Wuhu City, is a large scale, product range, market network and improve medical device manufacturers.
Enterprise development, production and sale of medical equipment as the main development has mainly orthopedic products used in hospitals and operating rooms. The main products are:
First, medical electric saw drill series, including medical bone drill, hollow saw, pendulum saws, reciprocating saws and other medical electric plaster saw.
Second, micro-medical electric burr series.
Third, medical attract cutting series.
Fourth, rapid sterilization of medical devices. And has the perfect balance between performance and price.
Founded three years, has been "first-class product quality" for the purpose "to meet customer needs" as their responsibility. Business in an increasingly competitive medical device market, to maintain good long-term development. Wuhu Rui Jin Welcome all new and old friends come to visit and negotiate business!
