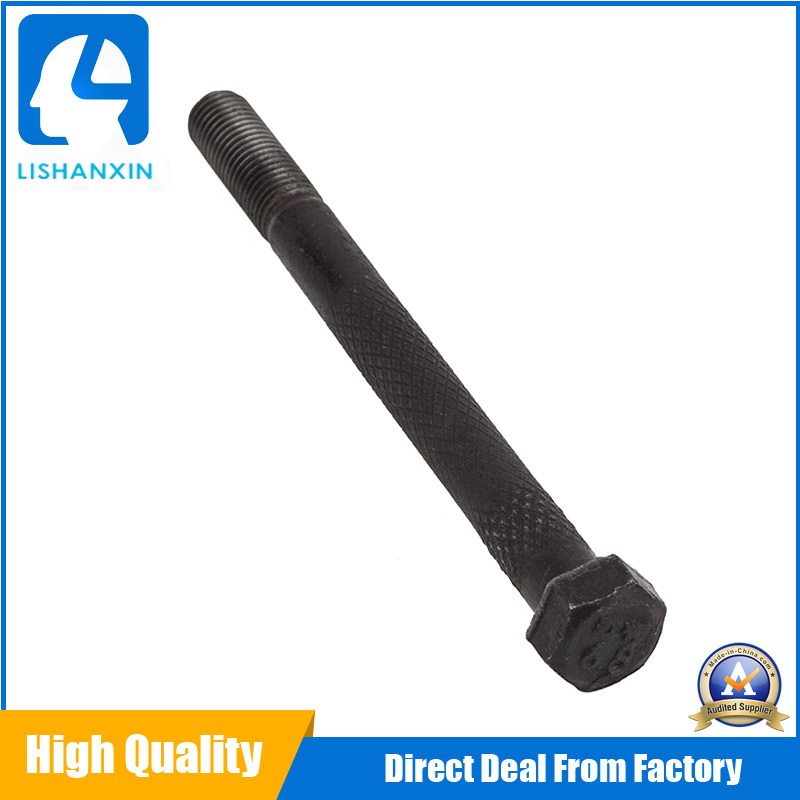

High Strength Bolt for Steel Structure
| Price: |
Negotiable/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
lsx007 |
| Material: |
High Strength Steel |
| Type: |
Hexagon Head |
| Connection: |
Common Bolt |
| Head Style: |
Hexagonal |
| Standard: |
JIS |
| Grade: |
8.8 |
| Finish: |
Polishing |
Product Description
Product Description
| ITEMTYPE | Standard | Size range | Property | Material |
| Stud (full thread) Bolt | GB901/953 | M12~M160 | 6.8~10.9 | Internal Steels:
Carbon Steel:
Q345(16Mn),25#,35#,45
Alloy Steel:
20MnTiB,35VB,40Cr,45MnMo, 30CrMoA,35CrMoA,
42CrMoA
25Cr2MoVA
Stainless Steel:
0Cr18Ni9, 0Cr17Ni12Mo2,
00Cr19Ni10, 00Cr17Ni12Mo2
Fe-Basic Alloy:
GH/T2132
Ni-Basic Alloy:
GH/T2312, GH80A Overseas Steels:
ASTM A307/A563
ASTM A193-B7/A194-2H (-7)
ASTM A193-B7M/A194-2HM
ASTM A193-B16/A194-4
ASTM A320-L7/A194-4 (-7)
ASTM A193-B8/A194-8 (LN)
ASTM A193-B8M/A194-8M (LN)
ASTM A453-Gr. 660
ASTM B637-UNS NO7080
AISI 304/316/304L/316L/321 |
| GB897/898/899 | M12~M160 | 6.8~10.9 |
| JB4707 | M12~M160 | 6.8~10.9 |
| HG20634/20613 | M12~M160 | 6.8~10.9 |
| HG/T21573 | M12~M160 | 6.8~10.9 |
| SH3404-96 | M12~M160 | 6.8~10.9 |
| ANSI/ASME B18.2.1 | 1/2"~4" | SAE Gr. 5/8 |
| IFI-136 | 1/2"~4" | SAE Gr. 5/8 |
| DIN975/976 | M12~M160 | 6.8~10.9 |
| DIN2510 | M12~M160 | 6.8~10.9 |
| BS 1769 | 1/2"~4" | 6.8~10.9 |
| Hex Bolt | GB5780~GB5783 | M12~M100 | 6.8~10.9 |
| GB/T1228/1231 | M12~M100 | 10.9 S |
| GB/T3632 | M12~M100 | 10.9 S |
| HG20634/20613 | M12~M100 | 6.8~10.9 |
| SH3404-96 | M12~M100 | 6.8~10.9 |
| ANSI/ASME B18.2.1 | 1/2"~4" | SAE Gr. 5/8 |
| ASTM A325/A490 | 1/2"~4" | 8.8~10.9 |
| DIN 931/933 | M12~M100 | 6.8~10.9 |
| DIN6914 | M12~M100 | 10.9 S |
| ISO4014/4017 | M12~M100 | 6.8~10.9 |
| JIS1180 | M12~M100 | 6.8~10.9 |
| Hex Nut | GB41/6170/6175 | M12~M160 | 6~10 |
| GB/T1229 | M12~M160 | 10H |
| HG20634/20613 | M12~M160 | 8, 10 |
| SH3404-96 | M12~M160 | 6~10 |
| ANSI/ASME B18.2.2 | 1/2"~4" | SAE Gr. 5/8 |
| ASTM A325/A490 | 1/2"~4" | 8~10 |
| DIN 934/2510 | M12~M160 | 6~10 |
| DIN6915 | M12~M160 | 10H |
| ISO 4032 | M12~M160 | 6~10 |
| JIS1181 | M12~M160 | 6~10 |
Nanjing Lishanxin Standard Component Co., Ltd. is specialized in producing the hot-dip galvanized fastening parts for the power transmission line, being the qualified supplier of State Grid. With continuous development and product structure adjustment, the company has entered such sectors as engineering machinery, construction steel structure, highway and bridge, clean energy, etc., providing such sectors with satisfied service. The company has more than 300 employees including more than 40 technical personnel. Our products cover 30 series and more than 2000 specifications, with annual production capacity of nearly 10,000 tons, and sales revenue of RMB more than 100 million.Focusing on technical research and development and talent cultivation, the company has owned well-experienced management team and technical team, and introduced new technologies, process and equipment continuously. The company strictly implements the requirements of IS09001 system, and provides our customers with satisfied service. The company has developed cap-type anti-theft screw and ball-type anti-theft bolts. With practicability, advancement, and economical efficiency, our products have won good reputations, and obtained many international patents."Creating first-rate service, creating first-rate management, building first-rate environment and striving for first-rate service" is Lishangxin's everlasting pursuit. We are desired to cooperate with you. Welcome to our company!
Nanjing jiangstandard standard Co., Ltd., located in tangquan town, pukou district, nanjing city. Nanjing jiangstandard standard parts Co., Ltd. is a professional manufacturer of standard parts, and has become the supplier of the state grid, the qualified supplier of photovoltaic power generation and wind power generation. Company consists of seven departments 6 manufacturing plants (bolt cold molding workshop, hot molding workshop, nut workshop, hot-DIP zinc workshop, packing workshop, machine shop), has 300 staff, all kinds of professional and technical personnel more than 30 people, including 2 professors). Fixed assets investment of nearly 60 million yuan, is a production capacity of more than 30, 000 tons of large-scale enterprises.
We supply different kinds of fasteners with high quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
