| Prod Model: |
HQ400/600/700 |
| Max. Blade Size: |
400/600/700mm(Diameter) |
| Max. Cutting Length: |
3200mm |
| Max. Cutting Width: |
2000mm |
| Max. Cutting Depth: |
110/180/230mm |
| Weight: |
6300/6500/7500kg |
| Table Rotation: |
0-90/360 Degree |
| Table Turnover: |
0-85 Degree |
| Type: |
Laser Cutting Machine |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
Product Description

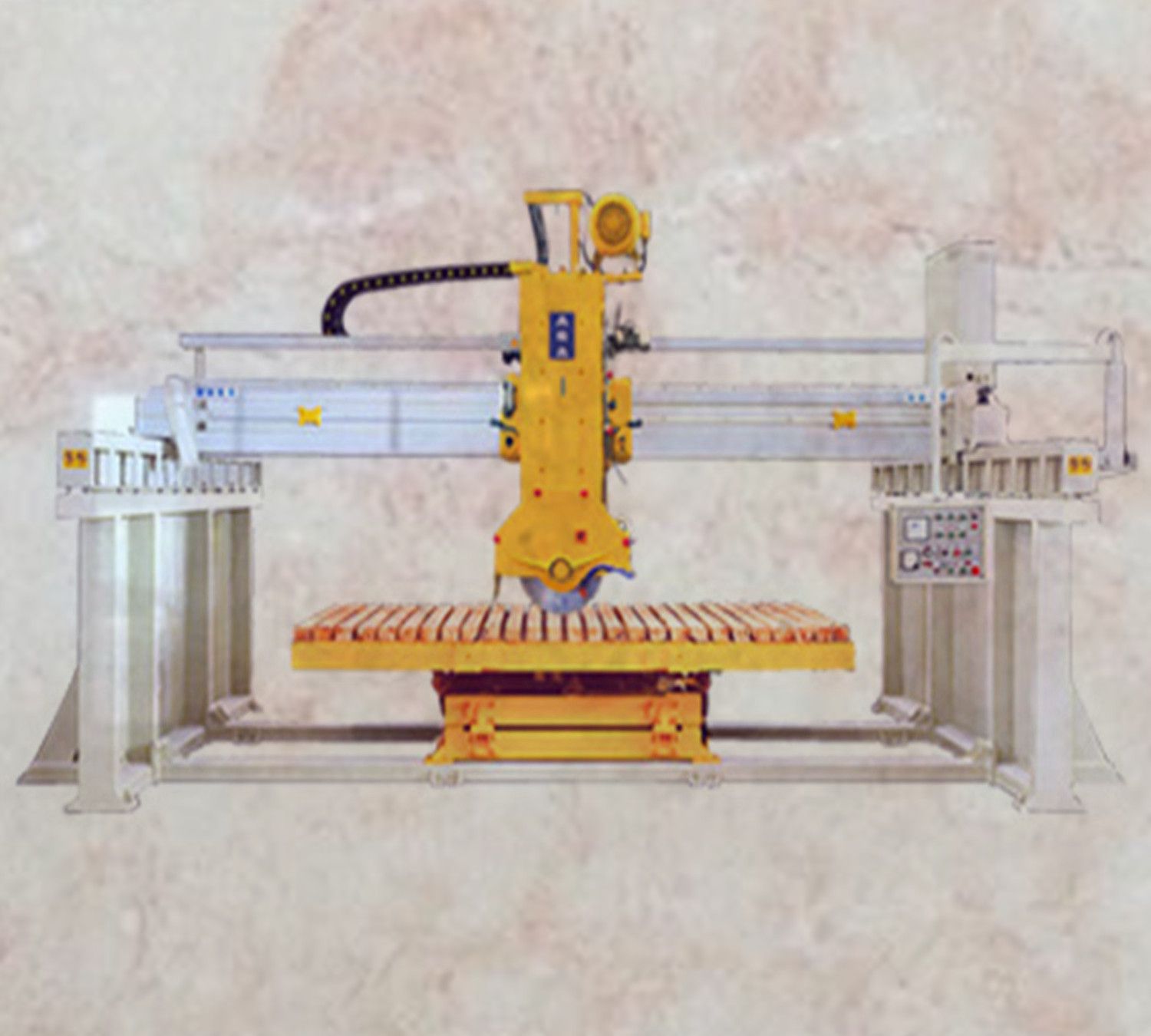

Bridge Saw for Cutting Granite Tiles with Miter Cut
Features: • Cutting slabs into tiles and fabricating countertops
• Powered 0-45 degree Mitering for optional
• Capacity for 300-700mm diamond blades
• Max.cutting depth of 110-230mm
• Max. cutting lengh of 3200mm
• Max. cutting width of 2000mm
• Laser guide cutting
• 0° - 360° rotating table
• 20 Hp motor direct drive
• Cast Iron bridge
• Warranty: one year
• Longevity:at least 15 yearsDescription of Bridge Saw:
The bridge saw is designed to process countertops and tiles automatically and precisely under direction of set program. All the functions are operated on the user friendly control panel. It is suitable for cutting granite, marble, quartz and all kinds of natural stone.
HQ400600700 are three kinds of bridge saws, like triplet. HQ700 is the most integrated one. It is driven by 25HP motor which provides and ensures sufficient and powerful strength for every precise single cut on the hard stone. It is powered bridge miter capacities. The blade, together with vertical beam, are able to tilt 45 degree for angle cutting. The bridge saw (HQ700) can cut the stone as thick as 230mm. The table of the machine turns 0 - 360° horizontally and tilts 0 - 85° vertically for easy loading and unloading. Dimension of the machine (LxWxH) is 6000x5700x3500mm. Its frame is made of cast iron. Total weight of the saw is 7500kg which is heavy enough for keeping the stability of the saw while it is working.
HQ400 and HQ600 are smaller models than HQ700 with much favorable price. The main difference between HQ400 and HQ600 is their max. cutting depth. The max. cutting depth for HQ400 is 110mm, while it is 180mm for HQ600.
All the three kinds of saws HQ400, HQ600, HQ700 are User-friendly design which ease the tough work from the hard and heavy stone . The automatic bridge saw with premium configuration, stable functions and favorable price has won trust and reputation from our customers, especially in Middle East, Africa, South America, India... Major Technical Parameters of Bridge Saw
| Model | HQ400 | HQ600 | HQ700 |
| Blade Size | Φ300-Φ450 mm | Φ300-Φ600 mm | Φ300 - Φ700 mm |
| Table Size | 3200×2000 mm 126"×79" |
| Blade Tilting | N/A | 0°- 50° |
| Table Turnover | 0°- 85° |
| Max. Cut (L×W) | 3200×2000 mm 126"×79" |
| Table Rotation | 0°- 90° / 360° | 0°- 360° |
| Max. Cut Depth | 110 mm 4" | 180 mm 7" | 230 mm 9" |
| Spindle Motor | 15 Kw 20HP | 15 Kw 20HP | 18.5 Kw 25HP |
| Size (L×W×H) | 6×4.8×2.9 m | 6×4.8×3 m | 6×5.7×3.5 m |
| Weight | 6,300 Kg | 6,500 Kg | 7,500 Kg |

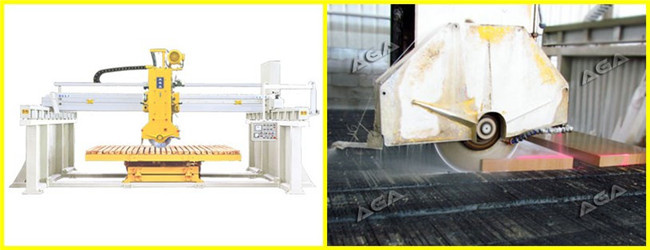

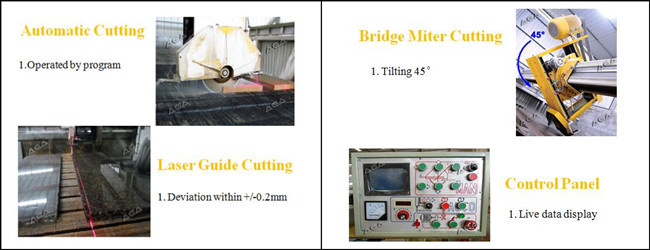

Gallery of the Bridge Saw1,Simple Operation With the latest technology, the bridge saw can be programed to cut slabs into tiles and process countertops completely, effectively, precisely.

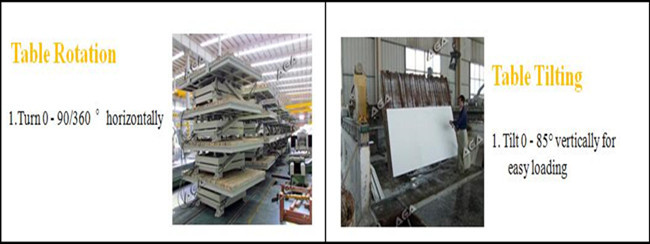

2,Multifuctional Table:The table turns 0 - 360° horizontally and tilts 0 - 85° vertically. The laser guide and sensors give high accuracy for every cutting. Hydraulic System for easy loading and unloading.
3,Cutting Countertop and Tile

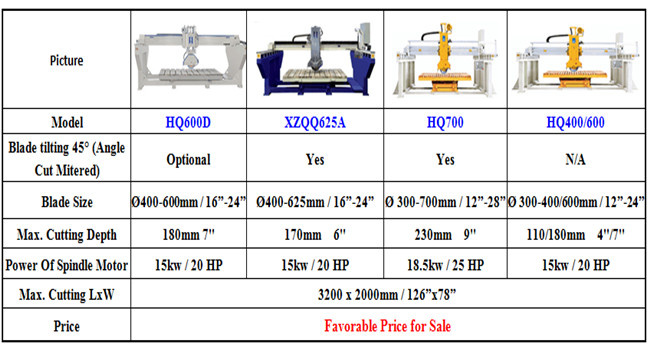

4, Comparision of the Bridge Saw Covering Wide Budget
