| Prod Model: |
KET-XLCT |
| Product Name: |

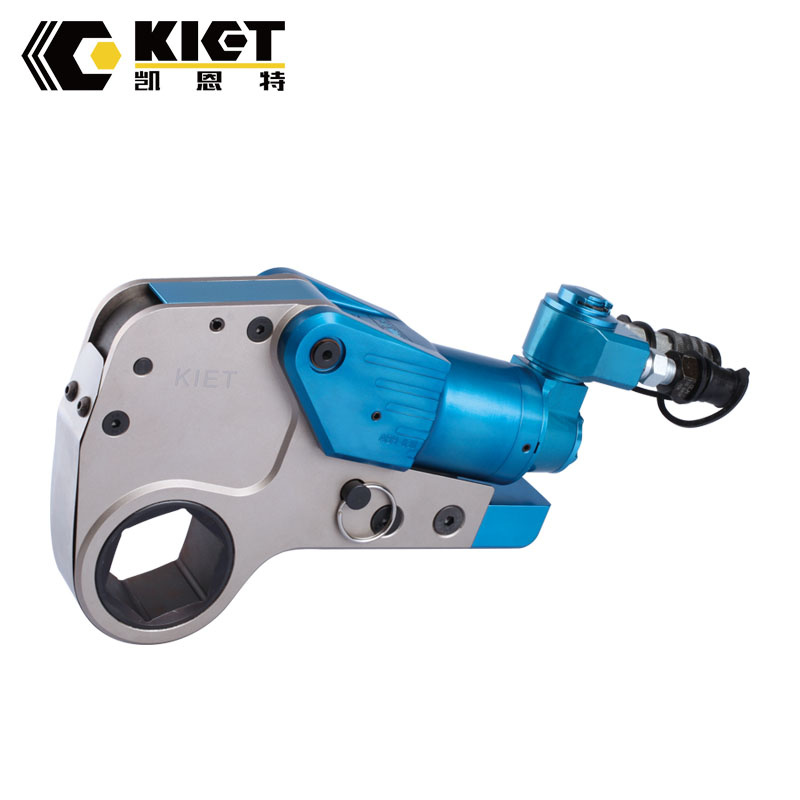

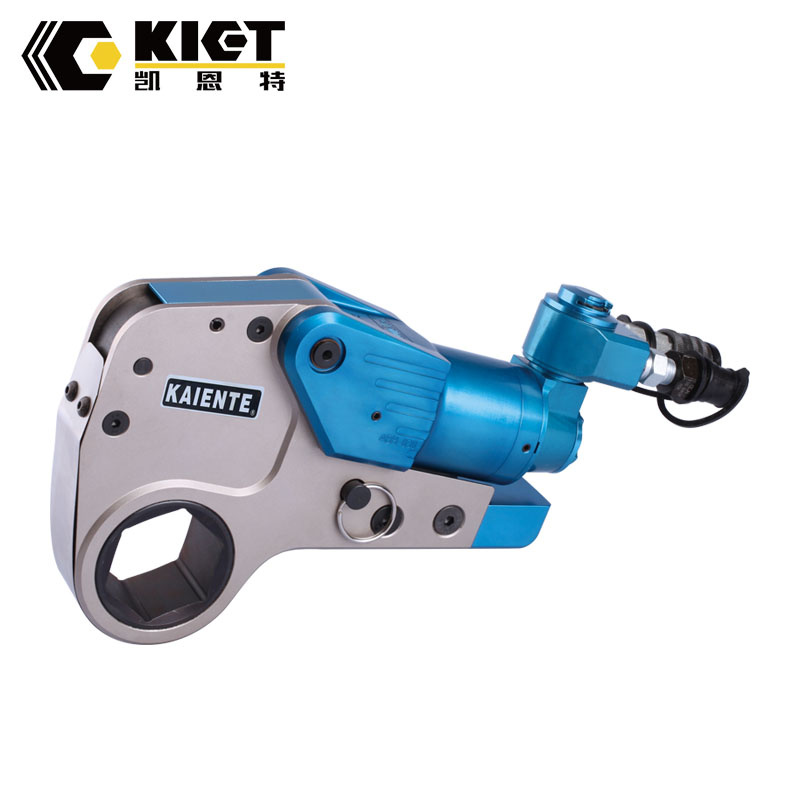

Hollow Spanner Open End Torque Wrench |
| Min. Torque: |
232nm-4188nm |
| Max. Torque: |
2328nm-41882nm |
| Working Pressure: |
70MPa |
| Power Head Weight: |
0.9kg-10.4kg |
| Working Head Weight: |
1.5kg-20.5kg |
| Terms Of Payment: |
T/T |
| Delivery Time: |
7-15 Days After Payment |
| OEM: |
Yes |
| Warranty: |
1 Year |
| Type: |
Torque Wrench |
| Material: |
Aluminum Alloy |
| Surface Treatment: |
Chrome |
| Feature: |
Anti-Explosion |
| Brand: |
Kiet |
Product Description
Hollow Spanner Open End Torque WrenchProduct Description:1. Aluminum and titanium alloy: lightweight, anti-rust, high tensile material
2. The outlet couplings and Allen key are able to rotate 360 °
3. Anti backlash design, prevent it the bolt to rotate with the nut
4. Easy-to-use and changable square drive and Allen key to adapt different sockets
5. Output torque accuracy up to ±3%, can be customized for high torque
6. Hand free operation, efficient, and continuous working, drive pawl design for unrivaled accuracy and tool longevity
7.Standard parts and accessories are available
Company Information
KIET Hydraulic torque wrench is powerful solution for high tensile bolt and nuts tightening and releasing. The hydraulic torque wrench is ultimate tool in heavy duty work. KIET hydraulic torque wrench offers standard products up to 70,000 Nm, with bolt size up to 125mm, and hexagon across flats up to 180mm. We have customized hydraulic torque wrench up to 160,000 Nm for the world's biggest man made dam - The Three Gorge Dam on the Yangtze River.
Our torque wrench has been widely used in oil fields, refinery and petrochemical industry, power and hydropower plant, cement and construction, shipbuilding and repairs, mining and metallurgy, machine and equipments test and repairs.
Our customers including the most prominent corporation in China, such as China Petroleum, Sinopec, Baosteel, Jiangnan Shipyards, Conch Cement, China Metallurgical Group Corporation, and so on. The quality has been trusted by megacorporation and multinationals.
MFeatures:Aluminum and titanium alloy: lightweight, anti-rust, high tensile materialThe outlet couplings and Allen key are able to rotate 360 °, very useful in workingAnti backlash design, prevent it the bolt to rotate with the nutEasy-to-use and changable square drive and Allen key to adapt different socketsOutput torque accuracy up to ±3%, can be customized for high torqueHand free operation, efficient, and continuous working, drive pawl design for unrivaled accuracy and tool longevityStandard parts and accessories are availableCompatible to ISO9001:2008 and CE standardAlso we provide customized serviceParameters for Hexagon Cassette Hydraulic Torque Wrench:Parameters:
Model | KT-2XLCT | KT-4XLCT | KT-8XLCT | KT-14XLCT | KT-18XLCT | KT-30XLCT |
| Torque Nm | 180~1866 | 440~5328 | 892~ 10168 | 1558~ 17640 | 2430~ 23708 | 3528~ 41880 |
| Bolt diameterM(mm) | 18-33 | 18-42 | 33-60 | 42-80 | 48-95 | 52-110 |
| ScrewS(mm) | 27~50 | 27~65 | 50~90 | 65~115 | 75~135 | 80~155 |
| Rotary head Model | 2XLCT | 4XLCT | 8XLCT | 14XLCT | 18XLCT | 30XLCT |
| Working head model | 2XLCTA-50 | 4XLCTA-65 | 8XLCTA-90 | 14XLCTA-115 | 18XLCTA-135 | 30XLCTA- |
| Weight(kg) | 2.4 | 5.0 | 9.3 | 16.9 | 18.6 | 30.9 |
| L(mm) | 160 | 213 | 267 | 321 | 362 | 427 |
| H1(mm) | 130 | 183 | 273 | 246 | 278 | 312 |
| H2(mm) | 102 | 137 | 170 | 203 | 230 | 272 |
| W1(mm) | 32 | 41 | 53 | 64 | 73 | 83 |
| W2(mm) | 50 | 66 | 83 | 99 | 110 | 132 |
Package:
Inner Package:Aluminum Alloy Box Package
Outer Package:Wooden Package
Parameter of the another hydraulic wrench
Model | Torque Value
(Nm) | Screw Size
(mm) | Bolt Size
(mm) | Axle | Working Pressure
(Mpa) |
| KT-1MXTA | 183-1837 | 16-36 | 24-55 | 3/4" | 70 |
| KT-3MXTA | 451-4512 | 22-48 | 34-75 | 1" | 70 |
| KT-5MXTA | 752-7528 | 27-56 | 41-85 | 1-1/2" | 70 |
| KT-8MXTA | 1078-10780 | 30-64 | 46-95 | 1-1/2" | 70 |
| KT-10MXTA | 1551-15516 | 36-72 | 55-105 | 1-1/2" | 70 |
| KT-20MXTA | 2666-26664 | 42-90 | 65-110 | 2-1/2" | 70 |
| KT-25MXTA | 3472-34725 | 48-100 | 75-145 | 2-1/2" | 70 |
| KT-35MXTA | 4866-48666 | 64-115 | 95-165 | 2-1/2" | 70 |
ShippingThe shipping can be by express parcel, by air or by sea shipping.
Product ApplicationOur products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.
Packaging Details1. Outside packaging: standard export wooden packing;
2. Inner packaging: stretch Film;
3. Customized packaging acceptableOur ServiesKIET provide one year guarantee for all the hydraulic wrench. We promise if there is any disfunction of the hydraulic wrench during the quality warranty not by outside force, we will replace a new wrench for free. Any quality defects reported by customers will be responded within 24 hours.FAQ:
Q1: How can contact sales?
A1: Please call: +86-021-68565866 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack
and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea
shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma
invoice with our banking details.
Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-0 days. If it is customized, not our standard products, it will take 20-45 days to produce.Company InformationJiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.More Information and questions please contact me as below:
Contact: Miss. Elena Tan
Mobile number: +86 18052606778
Tel:+86-523-81569666
Web: http://www.chinakiet.com/EN/
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
