| Prod Model: |
IC2016022342 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Ggg50, Option Ggg60, ASTM80-55-06 |
| Blank Process: |
Sand Casting |
| Casting Tolerance: |
CT9-11 |
| Machining Process: |
Drilling, Milling, Boring etc. |
| Rough Surface Roughness: |
Ra25-100 |
| Casting Blank Weight: |
Range From 0.01kg-1000kg |
| Package: |
Multiplayer Wood Box with Big Plastic Bag Inside |
| Lead Time: |
45 Days |
| Service: |
Supply Metal Solution as Per Customer's Drawing |
| Casting Blank Size: |
As Customer Request |
| Casting Method: |
Sand Casting |
| Casting Metal: |
Cast Iron |
| Casting Form Usage Count: |
Permanent |
| Casting Form Material: |
Ggg50, Option Ggg60, ASTM80-55-06 |
| Surface Treatment: |
Dacromat Coating, Finish Painting |
| Surface Roughness: |
Ra25-100 |
| Machining Tolerance: |
0.005mm-0.01mm-0.1mm |
| Standard: |
According to Customer Requirement |
| Certification: |
as Customer Request |
Product Description
General Products
Application/Service Area |
Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
|
Main blank Process for Casting |

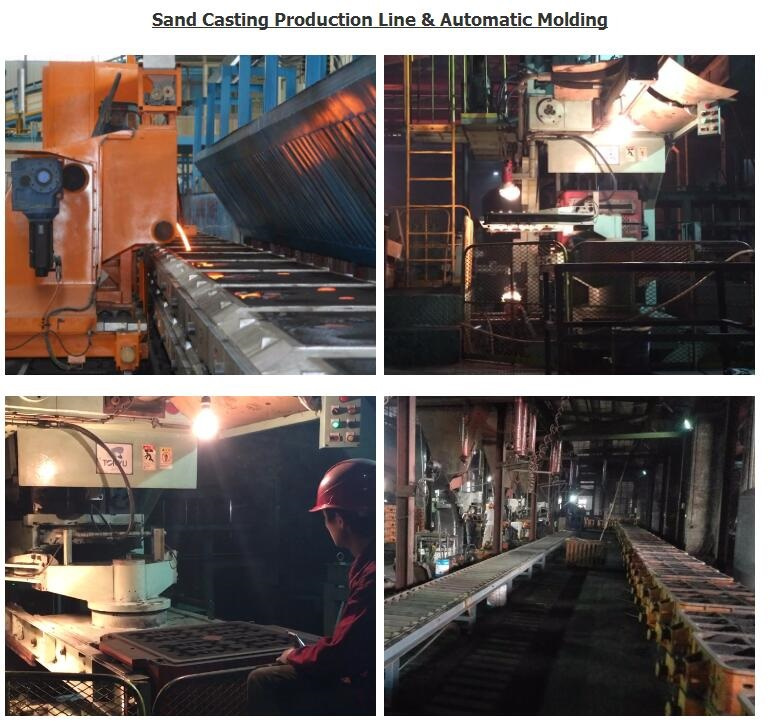

Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting
|
Blanks Tolerance -Casting Tolerance |
CT9-10 for Machine Molding Process,
CT8-9 for Shell Molding and Lost Foam Molding Casting Process
CT10-11 for Manual Molding Sand casting Process |
Applicable Material |
See Table Below (Ductile Iron Casting, Grey Iron Casting)
OR According to customer requirement
|
Casting Blank Size /Dimensions |
2 mm-2000mm / 0.08inch-79inch for casting iron, according to customer requirement |
Casting Blank Weight |
Range from 0.01kg-1000kg for casting iron |
Applicable Machining Process |
CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
|
Machining Tolerance |
From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality |
Ra 0.8-Ra3.2, according to customer requirement |
Applicable Heat Treatment |
Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
|
Applicable Finish Surface Treatment |
Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting.
|
MOQ |
For iron casting : 100pcs
For Machining : 50pcs |
Lead Time |
45days from the receipt date of deposit for iron casting |
Ductile Iron Casting Material Comparison Table:
Cast iron with nomular graphite
DIN EN 1563 |
Germany
DIN 1693 |
France
NF |
Great Britain
BS |
Netherlands
NEN |
Sweden
MNC |
USA
ASTM A536 |
EN-GJS-350-22-LT |
GGG-35.3 |
FGS 370-17 |
370/17 |
GN 38 |
0717-15 |
---- |
EN-GJS-400-18-LT |
GGG-40.3 |
---- |
---- |
---- |
---- |
60-40-18 |
EN-GJS-400-15 |
GGG-40 |
FGS-400-12 |
420/12 |
GN 42 |
0717-02 |
60-40-18 |
EN-GJS-400-10 |
---- |
---- |
420/12 |
---- |
---- |
65-45-12 |
EN-GJS-500-7 |
GGG-50 |
FGS-500-7 |
500/7 |
GN 50 |
0727-02 |
65-45-12/
80-55-06 |
EN-GJS-600-3 |
GGG-60 |
FGS-600-3 |
600/3 |
GN 60 |
0732-03 |
80-55-06 |
EN-GJS-700-2 |
GGG-70 |
FGS-700-2 |
700/2 |
GN 70 |
0737-01 |
100-70-03 |
EN-GJS-800-2 |
GGG-80 |
FGS-800-2 |
800/2 |
|
|
120-90-02 |
EN-GJS-1000-5 (DIN EN 1564) |
GGG-100B/A |
---- |
---- |
---- |
---- |
850-550-10 |
EN-GJS-AX NiSiCr35 5 2 |
GGG-
NiSiCr 35 5 2 |
FGS-
Ni35Si5Cr2 |
S5S |
---- |
---- |
Type D-5S |
Grey Iron Casting Material Comparison Table:
Cast iron with lamellar graphite
DIN EN 1561 |
Germany
DIN 1691 |
France
NF |
Great Britain
BS |
Netherlands
NEN |
Sweden
MNC |
USA
ASTM A48 |
EN-GJL-150 |
GG-15 |
Ft 15 D |
Grade 150 |
GG 15 |
01 15-00 |
20 B / 25 B |
EN-GJL-200 |
GG-20 |
Ft 20 D |
Grade 180/220 |
GG 20 |
01 20-00 |
25 B / 30 B |
EN-GJL-250 |
GG-25 |
Ft 25 D |
Grade 220/260 |
GG 25 |
01 25-00 |
35 B / 40 B |
EN-GJL-300 |
GG 30 |
Ft 30 D |
Grade 300 |
GG 30 |
01 30-00 |
40B / 45 B |
|

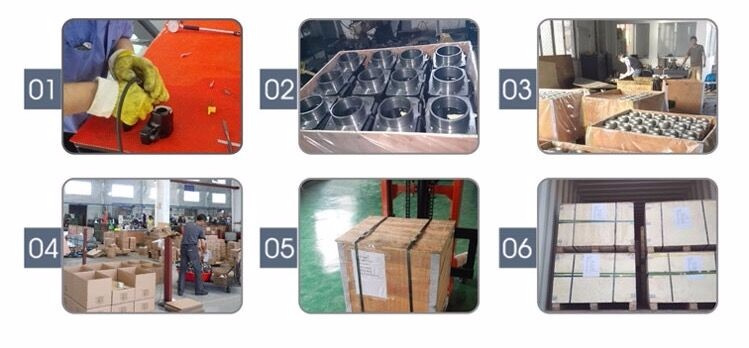

Our Package :
Packing & Delivery (Show As Above):
Inner Packing →Strong & waterproof plastic big is packed inside, to keep the product in safe condition.
Or as customer requests.
Outer Packing →Multilayer wooden box with strong bandages, used for standard export package.
Or customized as per customer's requirements.

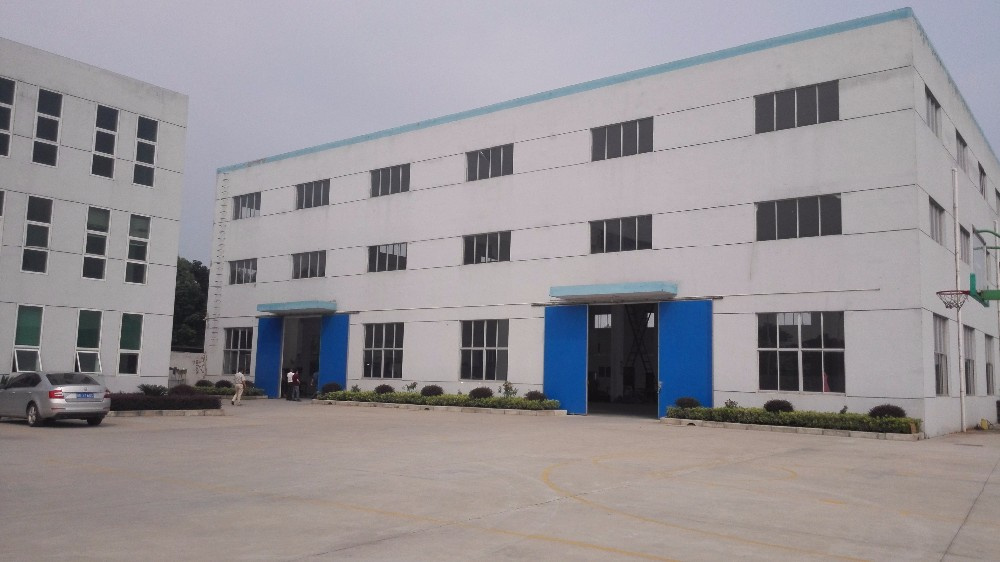

Our Company
Shanghai Matech Machinery Manufacture Co., Ltd.
--Branch of Matech Industry Ltd. We specialize in Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system etc.
With keeping manufacturing process design, quality planning, key manufacturing processes and final quality control in house.
We are mastering key competence to supply quality mechanical parts and assembly to our customers for both Chinese and Export Market .
To satisfy different mechanical and functional requirements from our customers we are making a big range of metal products for our clients on base of different blanks solutions and technologies.
These blanks solutions and technologies include processes of Iron Casting, Steel Casting, Stainless Steel Casting, Aluminum Casting and Forging.
During the early involvement of the customer's design process, we are giving professional input to our customers in terms of process feasibility, cost reduction and function approach.
You are welcome to contact us for technical enquiry and business cooperation.
Contact Us:
FAQ:1. Are you a manufacturer or a trading company?
We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost,
and the charge will be deducted from the payment for formal order.
3. Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied,
the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What's your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
