Horizontal and Vertical Hardware Plate Lifting Clamp

Name: Horizontal and Vertical Hardware Plate Lifting Clamp
Brand: tool-buy.com
SKU: 817842355
Availability: InStock
Rating: 4.9 (111 reviews)

Price:	US $ 20-120/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Chongqing Deso Lifting Co., Ltd.

Showroom Product Company Profile

Prod Model:	CD
Payment:	T/T L/C
Delivery Time:	20-40days
Material:	Metal
Usage:	Pipe Clamp
Structure:	G Clamp
Standard:	Nonstandard
Brand:	Deso or Authorized Brand

Product Description

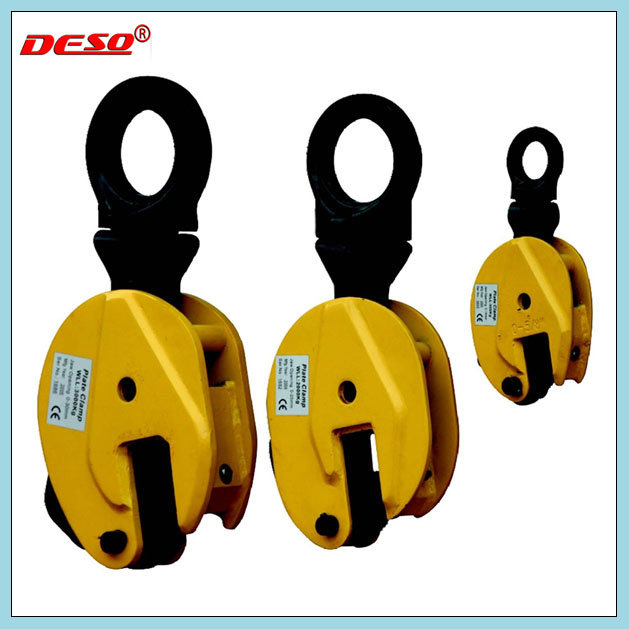

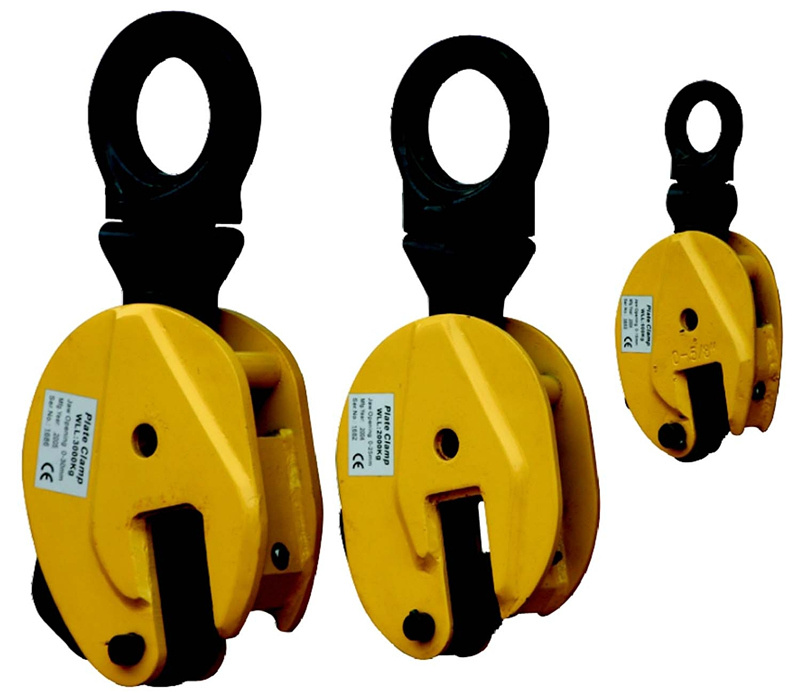

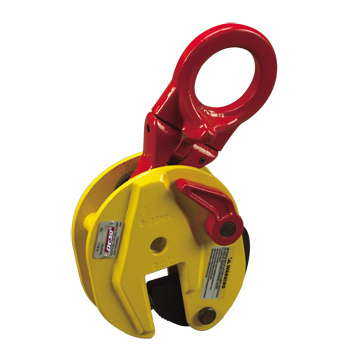

Horizontal and vertical hardware plate lifting clamp

Model	Lifting clamp
Type	Vertical and Horizontal lifting calmp
Capacity	1 ton-16 ton
Safety factor	4:01
Material	16Mn and 45# steel
Color	Powder painted
Standard	JB/T 7333-94
Package	Carton case
Cooperation	OEM
Remarks	Horizontal lifting clamps would be used in pairs, and the load is largest when the angle is 60 degree.

	For lifting and transporting of steel plates and structures from all positions (horizontal, vertical and sidelong).
	Articulated lifting shackle(CD type).
	Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
	The clamp is locked in closed as well as in open position.
	Manufactured from high quality carbon steel

Technical Data Sheet

Model	WLL(TON)	Jaw Opening(MM)	Weight(KG)
Deso-CD0.8	0.8	0-15	2
Deso-CD1	1.0	0-15	4
Deso-CD1(B)	1.0	0-20	5
Deso-CD1.6	1.6	0-20	7
Deso-CD2	2.0	0-25	8
Deso-CD3.2	3.2	0-25	15
Deso-CD3.2(B)	3.2	0-30	15
Deso-CD5	5.0	0-30	21
Deso-CD5(B)	5.0	0-50	23
Deso-CD8	8.0	0-45	37
Deso-CD12	12.0	50-90	50
Deso-CD16	16.0	60-100	65

If you have any questions or neeed more details, please feel free to contact us, we are more than pleased to do any help. Thanks!

Chongqing DESO Lifting Co., Ltd is committed to the developing and manufacturing High quality products which are widely used for operations of heavy duty lifting, rigging, fastening, and material handling in mines, oil rigs, mills, docks, and on ships. All the products we provide can be certified by registers BV, ABS, Lloyd' S, etc.

Deso' History can be dated back to 1987, following The Policy Of Reform And opening of China, Our domestic and global market with huge demand for lifting material, we begin our business first with Chain Hoist and Lever Hoist. Our products with good reputation in China, and we also export goods to a few countries like USA, Germany etc. By cooperating with some National stae-owned Imp&Exp enterprises.

Deso gained the right to export in 2002 following the step of China' S joining WTO(World Trade Organization), we are among the first companies with the authority to export in China. In order to meet the demand of our client(Mainly for European and MID-East at that time), we expanded our products from Chain Block&Lever Block to more lifting material. After the development of the past years, our high quality products with good price including:

*Chain Block&Lever Block.

*G80 Chain, Hook, Master Link, Connecting Link, Chain Sling.

*G100 Chain, Hook, Master Link, Connecting Link, Chain Sling.

*US Type Shackles and Other Rigging Hardware.

*Steel Wire Rope.

*Electric Hoist&Winch.

Deso invested new factory and facility in Jiangsu Province2010, updated production line and facility guarantee us improved quality and capacity, combined with our 27 years' S experience in the field of international trade. We find our advantages to Survive and the right way to help our customer win the marketshare, that' S quality and service.

When Buying From Deso You Are Buying More Than Products, You Are Buying Quality And Service
