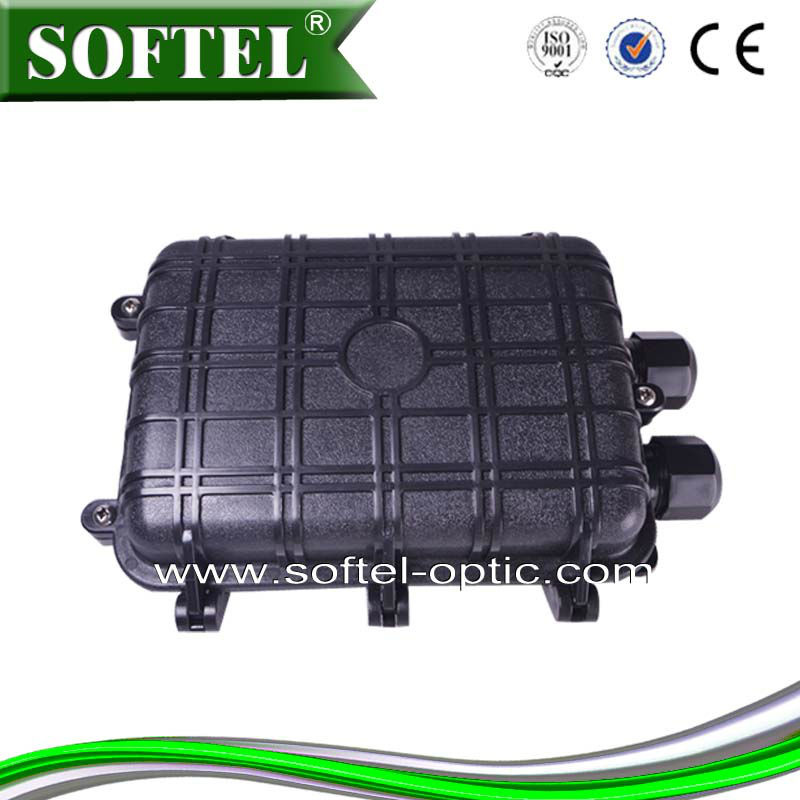

Horizontal Fiber Junction Box
| Price: |
US $ 12.5/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
FOH-E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Fiber Optic Enclosure |
| Model: |
Foh-E |
| Capacity: |
12-96 Fiber |
| Material: |
Plastic ABS |
| Fosc Cable Diameter: |
Max 14mm |
| Colar: |
Black |
| Lead Time: |
7 Days |
| MOQ: |
1 PCS |
| Brand: |
Softel or OEM |
| Size: |
280X200X90mm |
Product Description

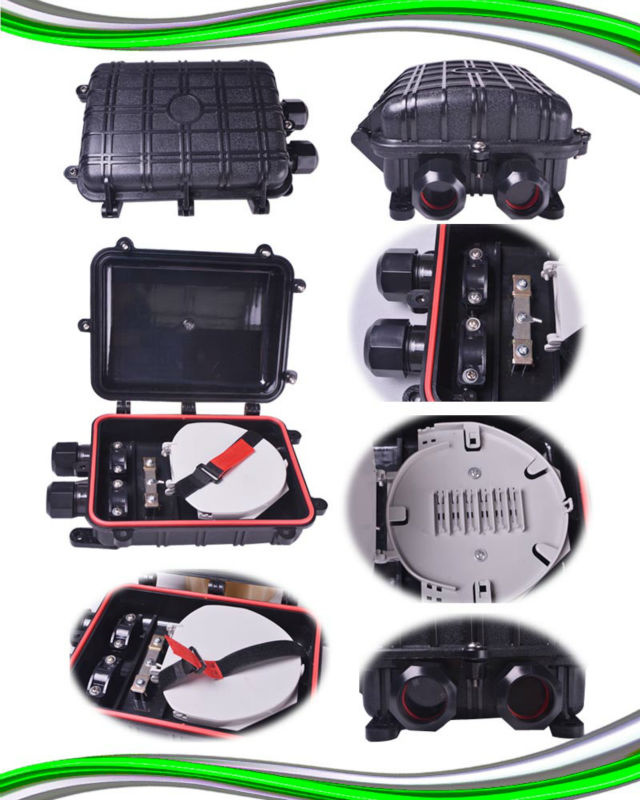

horizontal fiber junction boxL×W×H: 280×200×90MM Cable ports: 2-4 ports Cable Diameter: Max φ14 Max.Capacity (bunchy fiber): 96 Holds up to 96 fibers. Core capacity per tray: 12 or 24 Easy to re-enter Cable entry/exit ports Pressure testing valve and earth deriving device Intergrated seal, air tight and water proof Ideal for cable repair RoHS compliant Can be used in through, ODF fiber optic terminal cabinet branch or mid span splice locations Suitable for aerial, underground duct or direct burial applicationsSpecification- FOH-E-XX provides one set of elastic seal fitting with 2 inlet/outletΦ14mm ports(if required, the sealing fittings with 4 Φ12 ports or 3 ports with a Φ14port and 2 Φ12 ports also provided). The necessary port plugs should be taken out.
- The installation accessories: seal tape, insulation tape, 1piece of special wrenches, hanging hook, abrasive cloth, earthing wire, nylon tie, labeling paper, measuring paper, desiccant.
- Accessories for customers' selection: buffer tube for bunchy fiber, aerial mounting bracket or wall mounting bracket.
|
Model No. |
Size |
Cable ports |
Cable diameter |
capacity(bunchy) |
No. of trays |
|
FOH-E-12 |
280X200X90 |
2 |
Φ12(Max.) |
12 |
1 |
|
FOH-E-24 |
280X200X90 |
2 |
Φ14(Max.) |
24 |
2(12fibes) or 1(24fibes) |
|
FOH-E-36 |
280X200X90 |
2 |
Φ14(Max.) |
36 |
3(12fibes) or 2(24fibes) |
|
FOH-E-48 |
280X200X90 |
2 |
Φ14(Max.) |
48 |
4(12fibes) or 2(24fibes) |
|
FOH-E-60 |
280X200X90 |
2 |
Φ14(Max.) |
60 |
3(24fibes) |
|
FOH-E-72 |
280X200X90 |
2 |
Φ14(Max.) |
72 |
3(24fibes) |
|
FOH-E-84 |
280X200X90 |
2 |
Φ14(Max.) |
84 |
4(24fibes) |
|
FOH-E-96 |
280X200X90 |
2 |
Φ14(Max.) |
96 |
4(24fibes) |
