| Prod Model: |
MM-S181 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
Metal Cutting Band Saw |
| Cutting Capacity Round 0 Degree: |
180 mm ( Diameter ) |
| Cutting Capacity Flat 0 Degree: |
180 X 240 mm |
| Cutting Capacity Round 45 Degree: |
110 mm ( Diameter ) |
| Cutting Capacity Flat 45 Degree: |
170 X 110 mm |
| Cutting Angle: |
From 0 Degree up to +45 Degree |
| Cutting Speed: |
21/33.5/45/50 M/Min |
| Main Motor: |
750W Powerful Motor |
| Connecting Voltage: |
Single Phase 230V or Three Phase 400V |
| Gross Weight: |
150 Kgs |
| Material: |
Metal |
| Processing Method: |
Transverse Saw |
| Shape: |
Band Saw |
| Type: |
Metal Band Saw |
| Brand: |
Maxnovo or OEM |
| Use Place: |
Workshop, Factory and DIY |
Product Description
MM-S181 / Band Saw / Saw / Cutting Machine / Cutting Saw / Table Saw / Sawing Mahine / Band Sawing Machine / Bandsaw / Saw Blade / Saw Machine
Such model of MM-S181 is the high-quality solid metal belt band saw for demanding sawing with driving belt and 4 sawing speeds. Such large capacity metal-cutting band saw has a small footprint as well as being completely mobile. This model of metal bandsaw features solid construction assuring high accuracy which is an economic alternative to frame and circular metal saws. The saw machine is particular popular price-point conscious consumers which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Any one of our metal sawing machine distinguishes itself by quality, accurate, sustainability and consistent value. Ideal for cutting of profiles, pipes, solid material and etc.

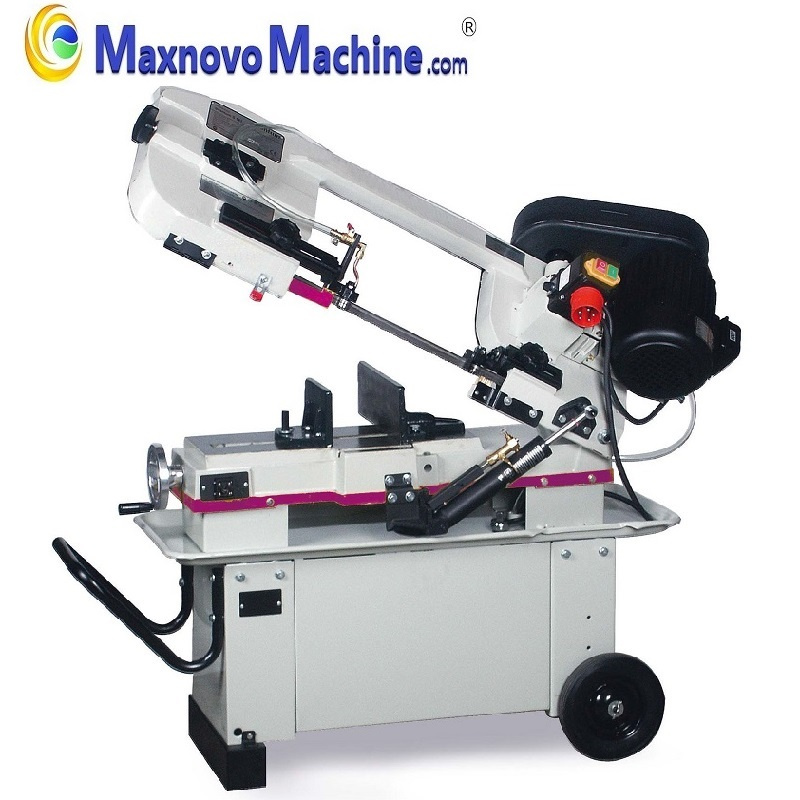

The MM-S181 Horizontal Cutting Metal Band SAW for demanding sawing with driving belts and 4 Sawing Speeds .
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
-Low-noise running
-Stable casting type
-Lowering of saw bow by means of hydraulic cylinder with infinitely variable throttle valve
-Micro switch for automatic limit stop
-Scale good read for angle adjustment
-With high-grade bimetallic saw band supplied as standard
-Saw belt tension at the front adjustable via hand-wheel
-Adjustable material stop for series productions
-Protective switch for the belt cover
-Fully equipped machine, the user can immediately start to work productively
-Ideal for cutting of profiles, pipes, solid materials and etc
-Certificate of Original (CO, FORM A, FORM E, FORM F )
Technical Data :
| Product Name : | Solid Metal Belt Band Saw Machine |
| Product Item : | MM-S181 |
| General Information |
| Lifting the saw bow : | Manual |
| In Feed : | Continuously variable adjustable |
| Saw Band Speed : | 21/33.5/45/50 m/min |
| Saw Band Dimensions : | 2362 X 19 X 0.9 mm
( L X W X Thickness ) |
| Cutting Angle : | From 0 degree to 45 degree |
| Working Capacity |
| Cutting capacity Round at 0 degree : | Ø 180 mm |
| Cutting capacity Flat at 0 degree : | 180 X 240 mm |
| Cutting capacity Round at 45 degree : | Ø 110 mm |
| Cutting capacity Flat at 45 degree : | 170 X 110 mm |
| Electrical Connection |
| Connecting Voltage : | Single Phase 230V or Three Phase 400V |
| Main Motor : | 750W |
| Coolant Pump Motor : | 50W |
| Dimensions |
| Length : | 1295 mm |
| Width without material stop : | 450 mm |
| Width with material stop : | 600 mm |
| Bottom stop position of saw bow Height : | 1060 mm |
| Highest position of saw bow Height : | 1550 mm |
| Net Weight : | 130 KGS |
| Gross Weight : | 150 KGS |
| Packing Size : | 1300 X 520 X 1100 mm |
| Standard Equipment : | Bi-metal saw band
Machine substructure
Coolant Pump |
We are the professional OEM Manufacturer Vendor for world famous GERMANY Top Brand Machinery Companies for more than 12 years, high precision machine for demanding users. Our well-established team has good technical background and full sincerity to ensure all customers (same as you) world-wide to buy safely, qualified teammates strives each day to give customers best machines and best service.
Moreover, you certainly would get trustable support and right solutions from us in time, the right solution for every application, you may solve any task in this way. The MAXNOVO Guarantee of quality: All MAXNOVO products are produced under high quality requirements.
It is our full pleasure to share latest product knowledge and professional experience with you together, to support you and your business much more success. Welcome customers to visit our company official website (www.maxnovomachine.com) to send enquiry to us so you would get the best factory direct price, it is All For You !
