| Prod Model: |
MJ45A |
| Length Of Sliding Table: |
3200mm |
| Cutting Width: |
1000 or 1300mm |
| Motor Power: |
5.5kw(7.5HP) |
| Main Spindle Speed: |
3000/4000/5000r.p.m |
| Max Cutting Height: |
125mm |
| Scoring Saw Spindle Diameter: |
20mm |
| Overall Dimension: |
32500*3150*900mm |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
Precision |
| Certification: |
ISO |
Product Description

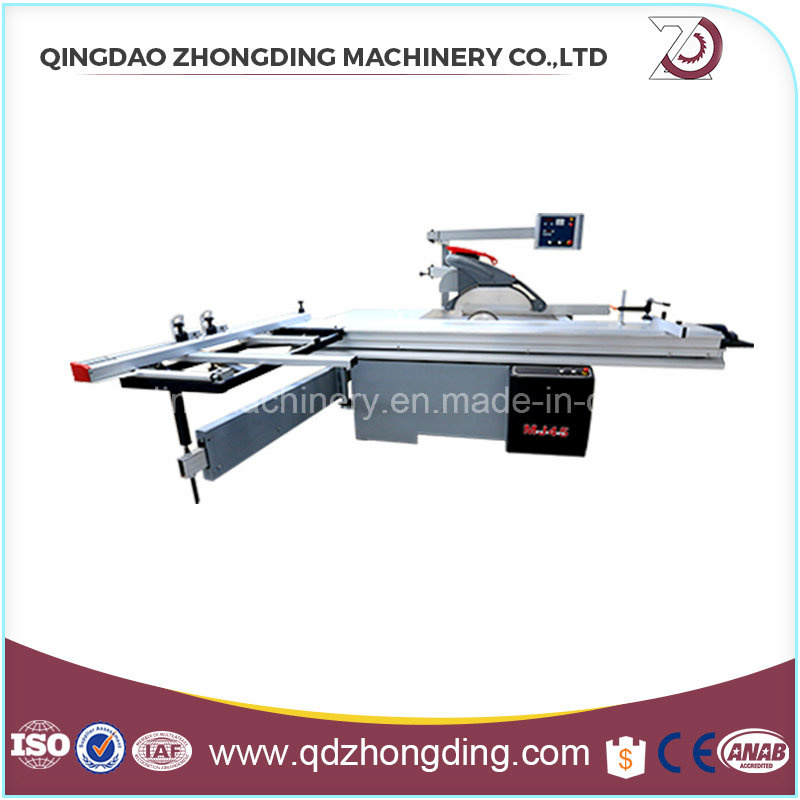

MJ45A Precise panel sawTechnical Specification: | Type | MJ45A |
| | Electric main saw blade lifting and angle adjustment |
| | Control panel is equal level with line of sight |
| Length of sliding table | 3200 mm |
| | Electric adjustment saddle |
| Cutting width | 1000 or 1300 mm |
| | Horizontal baffle plate extended to 3200 mm |
| Motor power | 5.5 kw(7.5HP) |
| Main spindle speed | 3000/4000/5000 r.p.m |
| Scoring saw spindle diameter | 20 mm |
| Scoring saw power | 1.1 kw |
| Overall dimesion | 3250*3150*900 |
Feature:
1. It is adapted to ergonomic requirements. The special operate is that: the control board of MJ45A sliding table saw can be adjusted to the equal height with line of the sight to make the operation comfortable. The saddle is electrically adjustable.
2. Control panel: The various operation on the control panel is clear at a glance. You just need to press the button gently then it will adjust the height and the angle of saw blade easily. The numerical value of angle is visible on the display.
3. Dust hood: It is convincing to use the big dust hood with fluid mechanics optimization structure. Dust hood apply to Max. Cutting height 125mm (without relationship to scoring saw blade) and can swing to the side totally.
4. The electric saddle: Five- positioning of high-precision drive systems without regular maintenance is like a built-in motor protected by aluminum profile. There is emergency power-off function and then excluded squeezed danger.
5. Rating 5.5kw(7.5HP). Three speeds, 3/4/5000rpm, manually adjusted.

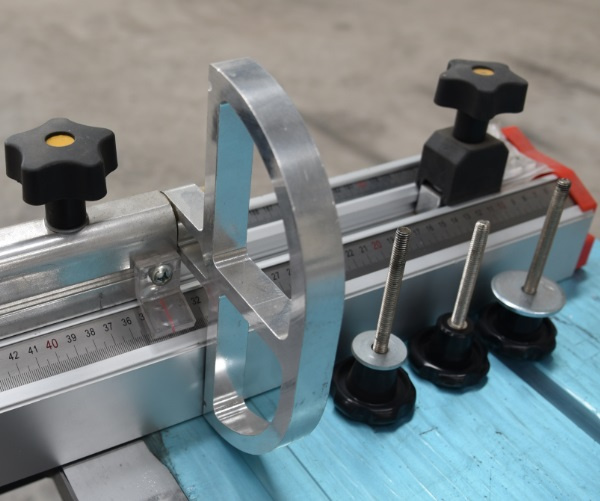

6. Horizontal baffle plate: Precise vertical angle cutting by firm rung. All of adjustment value is available in the strip of rung. The peach shape baffle plate with close connection with it can be push easily and adjusted freely in the entire cutting area.Product Details:
Certificate:
Our company:
Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
