| Prod Model: |
HW |
| OEM: |
Accept |
| Sample: |
Free |
| Finished: |
Hot DIP Galvanized |
| Material: |
Mild Steel |
Product Description
Pole Line Hardware/Overhead Power Line Fittings/Power Line HardwareMaterial:
Hot-dip galvanized steel.

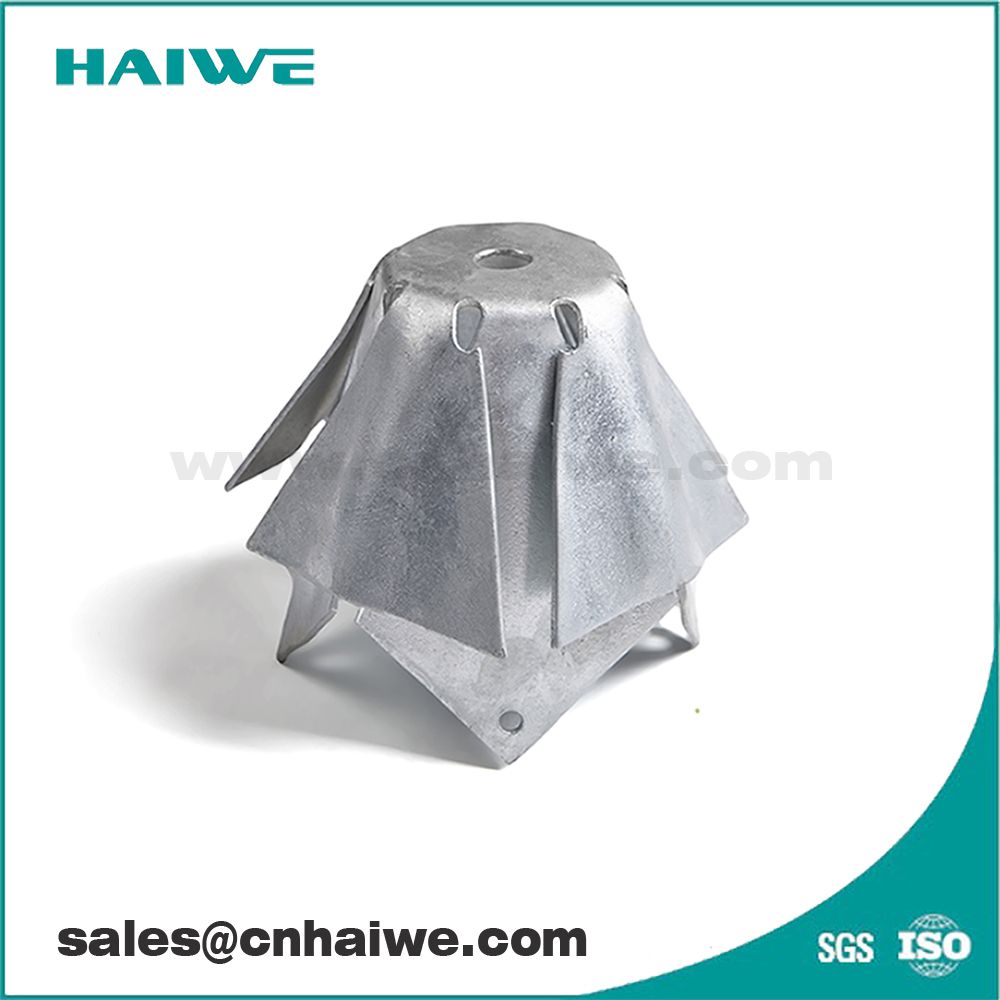

Application:The 8 Way Expanding Anchors are used for installation in holes angered by power drillers. One piece formed anchor with wings and a base. A retainer on the bottom holds the nut from the forged eye rod. Material: Steel
Finished: H.D.G, Black Paint coated with a rust inhibitor(less rods)
| Cat .No | Base plate inch | Rod Diameter inch | Area Expand top plate Sq. inch | Approximate Shipping Weight kg./ 100pcs | Standard pkg. Qty Carton |
|
| G1630-06 | 6 | 5/8 | 64 | 231 | 5 |
| G1630-07 | 7 | 5/8 | 92 | 310 | 5 |
| G1630-08 | 8 | 5/8 | 135 | 390 | 5 |
| G1634-08 | 8 | 3/4 | 135 | 435 | 5 |
| G1631-08 | 8 | 1 | 135 | 435 | 5 |
| Cat. No | Anchor Hole Size inch | Area Sq. In. (sq cm) | Rod Size in(mm) | Sta.pkg./pallet |
|
| 6870* | 6(152) | 70(452) | 5/8(15.8) | 12/288 |
| 88135* | 8(203) | 135(871) | 5/8(15.8)or3/4(19.1) | 6/180 |
| 1082 | 10(254) | 200(1290) | 1(1290) | 2/48 |
| 108234 | 10(254) | 200(1290) | 3/4(19.1) | 2/48 |
| 1283 | 12(305) | 300(1290) | 1-1/4(31.7) | 2/36 |
| 12831 | 12(305) | 300(1290) | 1/4(25.4) | 2/36 |

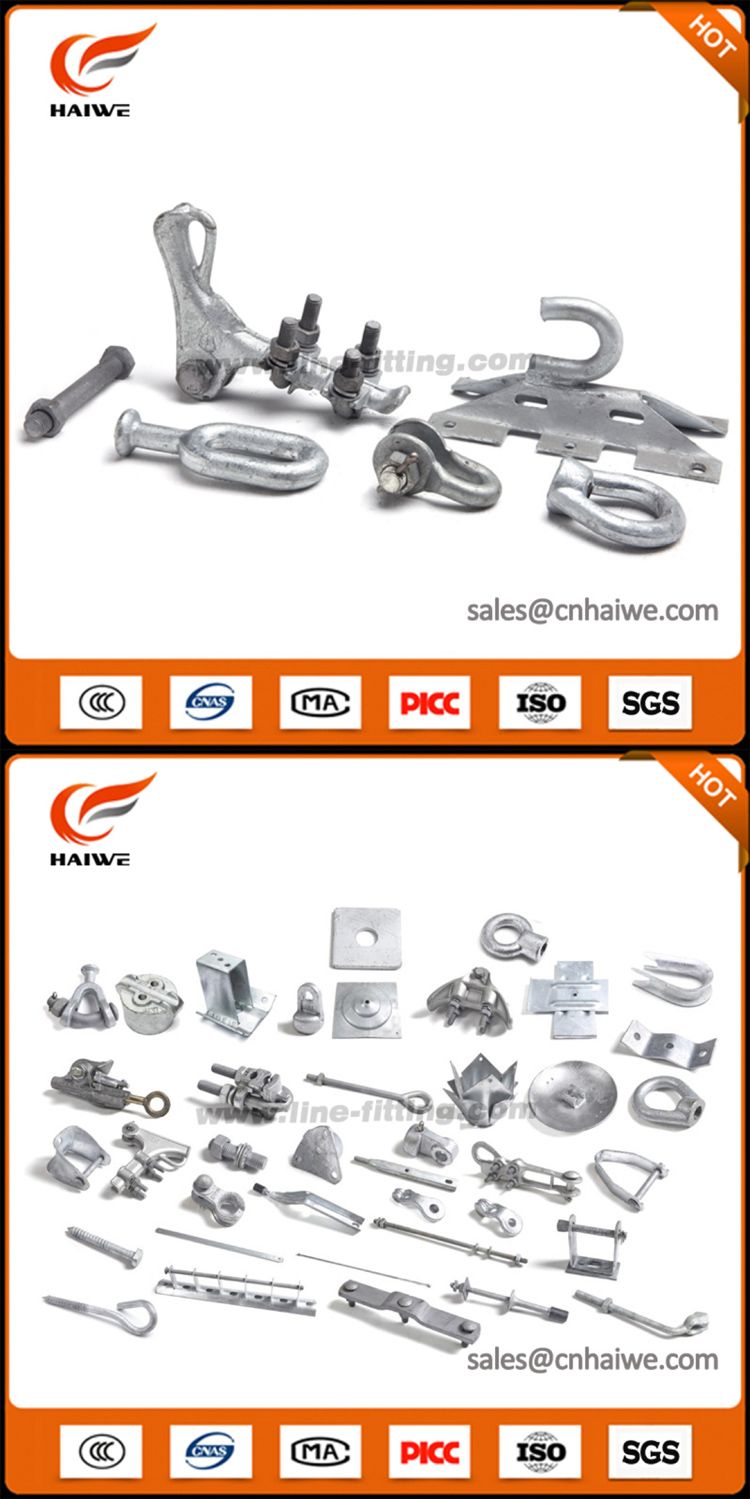

Other items
